Cables > Fiber Patch Cables


click photo to enlarge

EFN5011-005M

Photo may show similar product

Other views

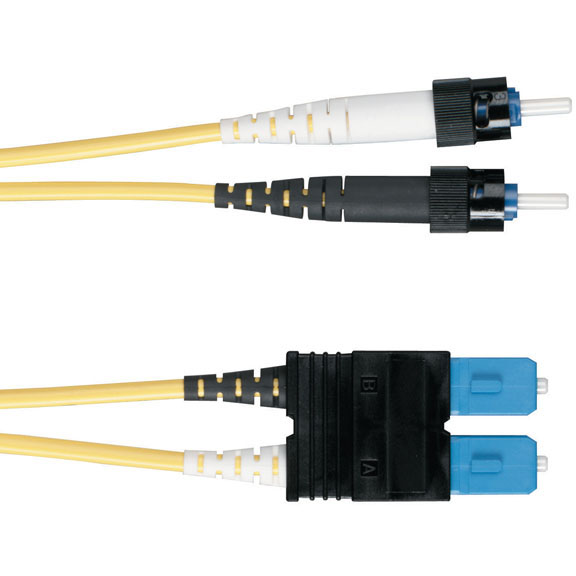

Single-Mode, 8.3-Micron Duplex Fiber Optic Cable, ST–SC, PVC, 5-m (16.4-ft.)

Single-mode cable for patching in high-speed networks.

EFN5011-005M

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Transmit at higher rates than with multimode fiber.
  • Plenum cable is certified OFNP for use in air plenums.
  • PVC cable is certified OFNR for use as riser cable.
  • Use for your short-distance networking connections.
  • Ideal for patching single-mode backbones to high-speed network devices, such as Gigabit Ethernet switches.
  • Guaranteed for life!


  • Description

    Single-Mode, 8.3-Micron Duplex Fiber Optic Cable, ST–SC, PVC, 5-m (16.4-ft.)


    Quick Facts

  • Transmit at higher rates than with multimode fiber.
  • Plenum cable is certified OFNP for use in air plenums.
  • PVC cable is certified OFNR for use as riser cable.
  • Use for your short-distance networking connections.
  • Ideal for patching single-mode backbones to high-speed network devices, such as Gigabit Ethernet switches.
  • Guaranteed for life!

  • Further Details


    NOTE: For cable with MU connectors, see Single-Mode 9.0-Micron Duplex Fiber Optic Cable (EFN310).

    NOTE: For cable with MT-RJ connectors, see MT-RJ Single-Mode, 8.5-Micron Fiber Optic Cable (EFN5013-001M, etc.).
    Questions? Contact our FREE Tech Support.


    Technical Specifications for Single-Mode, 8.3-Micron Duplex Fiber Optic Cable, ST–SC, PVC, 5-m (16.4-ft.):

    Bend Radius Meets ANSI/TIA/EIA-568B.3 standard
    Cladding 125 µm
    Core 8.3-µm
    Crush Resistance 750 N/cm
    Ferrule Ceramic
    Housing Composite
    Insertion Loss 0.2 dB typical
    Operating Temperature -4 to +158° F (-20 to +70° C)
    Return Loss ≥ 55 typical
    Tensile Strength 240 N (54 lb./24.5 kg)
    Wavelength 1310 nm, 1550 nm
    NOTE: For cable with MU connectors, see Single-Mode 9.0-Micron Duplex Fiber Optic Cable (EFN310).

    NOTE: For cable with MT-RJ connectors, see MT-RJ Single-Mode, 8.5-Micron Fiber Optic Cable (EFN5013-001M, etc.).
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Connect your Single-Mode, 8.3-Micron Duplex Fiber Optic Cable, ST–SC, PVC, 5-m (16.4-ft.) with:

    Double Diamond Warranty

    Extended LIFETIME Warranty Available


    Protect your purchase with an additional LIFETIME Double Diamond™ warranty!
    Cost: $0.00

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The Single-Mode, 8.3-Micron Duplex Fiber Optic Cable, ST–SC, PVC, 5-m (16.4-ft.) comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    Single-Mode, 8.3-Micron Duplex Fiber Optic Cables, ST–ST, PVC, 1-m (3.2-ft.) EFN5009-001M $57.95

    ST–ST, PVC, 2-m (6.5-ft.) EFN5009-002M $59.95

    Single-Mode, 8.3-Micron Duplex Fiber Optic Cables, ST–ST, PVC, 3-m (9.8-ft.) EFN5009-003M $61.95

    ST–ST, PVC, 10-m (32.8-ft.) EFN5009-010M $69.95

    Single-Mode, 8.3-Micron Duplex Fiber Optic Cable, SC–SC, PVC, 1-m (3.2-ft.) EFN5010-001M $47.95

    Single-Mode, 8.3-Micron Duplex Fiber Optic Cable, SC–SC, PVC, 2-m (6.5-ft.) EFN5010-002M $49.95

    Single-Mode, 8.3-Micron Duplex Fiber Optic Cable, ST–SC, PVC, 1-m (3.2-ft.) EFN5011-001M $74.95

    Single-Mode, 8.3-Micron Duplex Fiber Optic Cable, ST–SC, PVC, 2-m (6.5-ft.) EFN5011-002M $77.95

    Single-Mode, 8.3-Micron Duplex Fiber Optic Cable, ST–SC, PVC, 3-m (9.8-ft.) EFN5011-003M $79.95

    Single-Mode, 8.3-Micron Duplex Fiber Optic Cable, ST–SC, PVC, 10-m (32.8-ft.) EFN5011-010M $89.95

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $82.95

    On Back Order

    Quantity

    Warranty

    Total

    Shipping Info

    Weight: 0.22 lbs.
    HxWxD: 0.6 x 6.2 x 7 in.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
