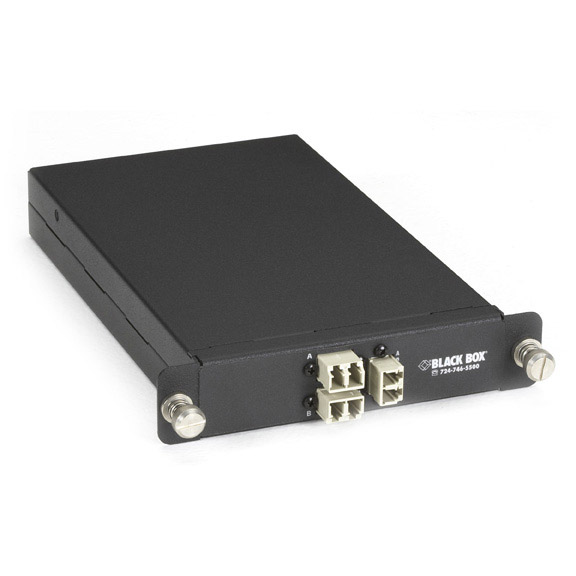

Single-Channel Optical Tap, 50/50 Ratio, Multimode, 50-µm

Monitor high-speed fiber links with no network distruption.

TS243A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Monitor network traffic at up to 1000 Mbps, troubleshoot problems, and run test equipment with no interruption in data flow.
  • Tap splits the full-duplex signal in 50/50 ratios from the network into two signals.


  • Description

    Single-Channel Optical Tap, 50/50 Ratio, Multimode, 50-µm


    Quick Facts

  • Monitor network traffic at up to 1000 Mbps, troubleshoot problems, and run test equipment with no interruption in data flow.
  • Tap splits the full-duplex signal in 50/50 ratios from the network into two signals.

  • Further Details

  • Get an accurate view of your fiber optic network.
  • Supports passive monitoring without data stream interference or introducing a point of failure.
  • Connect and disconnect monitoring devices without disruption.
  • Leave taps in permanently without degrading network performance.
  • Provides a complete copy of data from full-duplex network links.
  • Operates transparently and don't block error packets.
  • Regenerates incoming data before transmission.
  • Passes on traffic from all network layers.
  • Monitors both sides of a full-duplex connection.
  • Works seamlessly with network analyzers, monitors, and testers.
  • Portable plug-in, plug-out design with no power source required.
  • Features LC connectors.


    Get a complete view of the traffic on your fiber optic network without any disruption or downtime. With the Single-Channel Optical Tap, you can keep data flowing and users working while you get on with your work. Set it up and monitor network traffic, troubleshoot problems, and run test equipment with no interruption in data flow. Because you can leave the tap inserted permanently without interfering with network operation and minimizing points of failure, you can easily connect and disconnect different devices. Use the tapswith network and protocol analyzers, security monitoring devices, remote monitoring applications, RMON probes, and more.

    Use the tap on either side of the full-duplex link under test and a standard full-duplex analyzer connection. It copies traffic from one optical linek for one optical monitoring device.

    The Tap has LC connectors and split the full-duplex signal in 50/50 ratios from the network into two signals. One is sent back to your network and the other is sent to your monitoring device (a dual-receive capture card is required).

    You can use the tap anywhere, or mount up to three in a standard 19“ rack. Just order the Rackmount Bracket.

  • Technical Specifications for Single-Channel Optical Tap, 50/50 Ratio, Multimode, 50-µm :

    Construction Aluminum
    Excess Loss =-0.35 dB
    Fiber Type Multimode 50-/125-µm
    Fiber Wavelength 850 nm, 1300 nm, 1310 nm, 1550 nm
    Insertion Loss Split ratio: 80.20;
    Network port: = 1.8 dB;
    Monitoring port: = 8.1 dB
    CE Approval Yes
    Connectors Analyzer ports: (1) duplex LC;
    Network ports: (2) duplex LC
    Size 1.2"H x 4.5"W x 5"D (3 x 11.4 x 12.7 cm)
    Weight 0.5 lb. (0.2 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Single-Channel Optical Tap, 50/50 Ratio, Multimode, 50-µm :

    Manuals

    • Single Channel Optical Tap User Manual
      User Manual for the TS230A-R2, TS240A-R2, TS243A, TS244A, TS245A, TS246A, TS250A, TS253, TS254A, TS255A, and TS256A (1)
