KVM > KVM Trays

click photo to enlarge

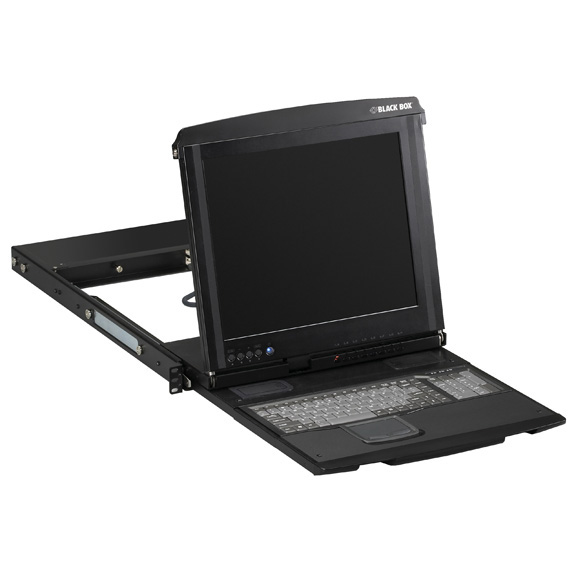

KVT517A-1IP

Photo may show similar product

Other views

ServView V with Single-Port KVM Switch, VGA, USB or PS/2, and (1) IP PortServView V with A Single-Port KVM Module, VGA, USB or PS/2, and (1) IP Port

This rackmountable 1U KVM tray features built-in IP access, plus all the space-saving convenience you expect from ServView V.

KVT517A-1IP

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Dual-rail console drawer features keyboard, touch pad mouse, LCD monitor, and a TCP/IP port in 1U.
  • Keyboard and LCD display slide in and out independently, enabling the monitor to remain visible while keyboard is stored.
  • Flip-open 17" LCD panel supports resolutions up to 1280 x 1024.
  • Securely access and control a remote server across any TCP/IP network.


    • Description

    ServView V with Single-Port KVM Switch, VGA, USB or PS/2, and (1) IP PortServView V with A Single-Port KVM Module, VGA, USB or PS/2, and (1) IP Port


    Quick Facts

  • Dual-rail console drawer features keyboard, touch pad mouse, LCD monitor, and a TCP/IP port in 1U.
  • Keyboard and LCD display slide in and out independently, enabling the monitor to remain visible while keyboard is stored.
  • Flip-open 17" LCD panel supports resolutions up to 1280 x 1024.
  • Securely access and control a remote server across any TCP/IP network.

    • Further Details

  • Front-panel on-screen display (OSD) control and LED indicator enable adjustment of display image.
  • KVM switch module connects to VGA, and either PS/2 or USB servers.
  • Front-panel USB 2.0 port remains accessible to peripherals even with keyboard and mouse tray closed.
  • For more convenience and versatility, the top of the keyboard/mouse tray features a hideaway USB port for USB HID-supported wireless keyboards and mice (RF or Bluetooth®).
  • Cascade the console with other KVM switch modules to increase server management capacity.
  • LED lighting bar indicates power status of console and KVM modules.

    The ServView V with Single-Port KVM Module, VGA, USB or PS/2, and (1) IP Port offers server management in a space-saving, streamlined package. The tray includes a keyboard, touch pad mouse, a 17" TFT LCD panel, a TCP/IP port, and 1-port KVM switching module housed in an industry-standard 19" 1U rack drawer, saving you valuable cabinet space.

    The dual-rail design enables the keyboard and LCD display to slide in and out of the rack independently of each other. Store the keyboard out of the way while keeping the display open so you can easily monitor your servers. Check system status even with the cabinet door closed.


    Control made easy — even over IP
    Save space by using the switching controls on the monitor bezel to control the switching module without pulling open the keyboard drawer. The top of the drawer has an LED lighting bar to make the closed drawer easy to find in a dark rack.

    You can install a USB RF or Bluetooth® adapter in the hide-away at the top of the keyboard/mouse tray to access the ServView V and servers with your own wireless keyboard.

    Additionally, this ServView V offers an IP port for secure access and control of remote servers over any TCP/IP network. The IP port is SNMP manageable, and can be used with any Java enabled Web browser or VNC client. Its security features include SSL encryption, SSH tunneling, and RADIUS authentication. You can easily set up password-protected accounts for users. By adding a serial module (KV9-SRL), you can manage a serial device as well. And the KVM switch is cascadable to up to 136 servers. Easy in-and-out
    The sturdy, slim drawer helps reduce server room clutter. Pull it out and latch it securely in place to use. Or fold your display into the drawer, slide it into the rack, and lock it in place. The ServView V also includes a scratch-resistant surface and a slip-free handle. Installation is easy, too.

    Easy to see
    The standard ServView V features a sharp LCD screen with up to 1280 x 1024 resolution. On-screen menus provide quick access to adjust brightness, contrast, screen resolution, and refresh rates. At a 45-degree angle, the LCD monitor automatically shuts down, so you don’t have to worry about leaving it on when you put it away. Additionally, Sun® native resolutions are supported for multiplatform functionality.

    Support for VESA DDC 1/2B enables the monitor to automatically adjust to its optimum performance when connected to a server that supports DDC.

    Easy to use
    The drawer console features a full 105-key, low-profile keyboard. It also supports Sun and Mac® keyboard mapping. The touch pad has simulated wheel control and is dust- and waterproof. Both the keyboard and the touch pad are replaceable.


    Rack it up
    The ServView V KVM tray installs in 4-post racks or cabinets with a rail depth of 23.7" minimum to 45.3" maximum. A rackmount kit is included.
    What’s included:
  • ServView V KVM tray
  • Single-port KVM switch module
  • Power supply
  • Power cord
  • Universal rear rail kit: (2) brackets, (2) extenders, (8) screws
  • User’s manual


    • Technical Specifications for ServView V with Single-Port KVM Switch, VGA, USB or PS/2, and (1) IP PortServView V with A Single-Port KVM Module, VGA, USB or PS/2, and (1) IP Port:

    Active Display Area — 13.3" x 10.6" (33.8 x 27 cm) squared
    Adjustments — On-screen display
    Colors — 262 k (RGB 6-bit)
    Contrast Ratio — 500:1
    Display — 17" TFT LCD
    Resolution (Maximum) — 1280 x 1024
    CE Approval — Yes
    Power — 100–240-VAC universal switching power with 12-VDC, 4-A output
    Size — 1.7"H x 17.3"W x 27.2"D (4.4 x 44 x 69 cm)
