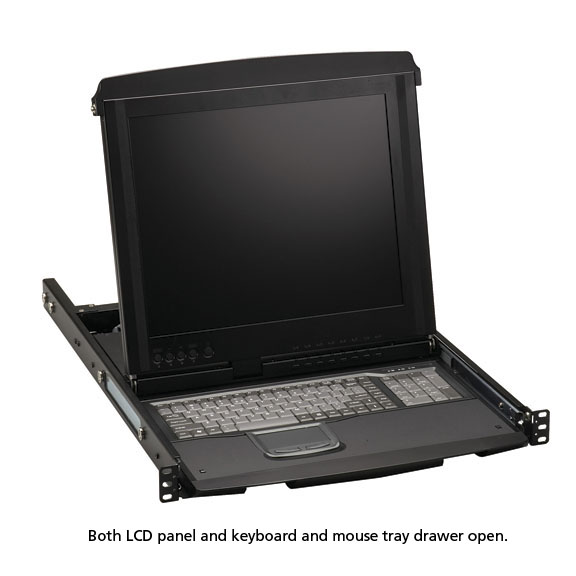

KVT517A-16UV

Photo may show similar product

Other views

ServView V with 16-Port KVM Switch, VGA, USB, PS/2

Use this rackmountable 17", dual-rail, 1U console drawer for when space is at a premium.

KVT517A-16UV

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Dual-rail console drawer features keyboard, touch pad, and LCD monitor in 1U.
  • Keyboard and LCD display slide in and out independently, enabling the monitor to remain visible while keyboard is stored.
  • Flip-open 17" LCD panel supports resolutions up to 1280 x 1024.
  • Front-panel on-screen display (OSD) control and LED indicator enable adjustment of display image.


  • Description

    ServView V with 16-Port KVM Switch, VGA, USB, PS/2


    Quick Facts

  • Dual-rail console drawer features keyboard, touch pad, and LCD monitor in 1U.
  • Keyboard and LCD display slide in and out independently, enabling the monitor to remain visible while keyboard is stored.
  • Flip-open 17" LCD panel supports resolutions up to 1280 x 1024.
  • Front-panel on-screen display (OSD) control and LED indicator enable adjustment of display image.

  • Further Details

  • Front-panel USB 2.0 port remains accessible to peripherals even with keyboard and mouse tray closed.
  • For more convenience and versatility, the top of the keyboard/mouse tray features a hideaway USB port for USB HID-supported wireless keyboards and mice (RF or Bluetooth®).
  • KVM switch function module connects to VGA, and either PS/2 or USB servers.
  • Cascade the console with other KVM switch modules to increase server management capacity.
  • LED lighting bar indicates power status of console and KVM modules.


  • The ServView V offers server management in a space-saving, streamlined package. The tray includes a keyboard touch pad, a 17" TFT LCD panel, and a 16-port KVM switching module housed in an industry-standard 19" 1U rack drawer, saving you valuable cabinet space.

    The dual-rail design enables the keyboard and LCD display to slide in and out of the rack independently of each other. Store the keyboard out of the way while keeping the display open so you can easily monitor your servers. Check system status even with the cabinet door closed.

    Control made easy
    Save space by using the switching controls on the monitor bezel to control the switching module without pulling open the keyboard drawer. The top of the drawer has an LED lighting bar to make the closed drawer easy to find in a dark rack.

    You can install a USB RF or Bluetooth® adapter in the hide-away at the top of the keyboard/mouse tray to access the ServView V and servers with your own wireless keyboard.

    Easy in-and-out
    The sturdy, slim drawer helps reduce server room clutter. Pull it out and latch it securely in place to use. Or fold your display into the drawer, slide it into the rack, and lock it in place. The ServView V also includes a scratch-resistant surface and a slip-free handle. Installation is easy, too.

    Easy to see
    The standard ServView V features a sharp LCD screen with up to 1280 x 1024 resolution. On-screen menus provide quick access to adjust brightness, contrast, screen resolution, and refresh rates. At a 45-degree angle, the LCD monitor automatically shuts down, so you don't have to worry about leaving it on when you put it away. Additionally, Sun® native resolutions are supported for multiplatform functionality.

    Support for VESA DDC 1/2B enables the monitor to automatically adjust to its optimum performance when connected to a server that supports DDC.

    Easy to use
    The drawer console features a full 105-key, low-profile keyboard. It also supports Sun and Mac® keyboard mapping. The touch pad has simulated wheel control and is dust- and waterproof. Both the keyboard and the touch pad are replaceable.


    Rack it up
    The ServView V KVM tray installs in 4-post racks or cabinets with a rail depth of 23.7" minimum to 45.3" maximum. A rackmount kit is included.


    Technical Specifications for ServView V with 16-Port KVM Switch, VGA, USB, PS/2:

    Active Display Area 13.3" x 10.6" (33.8 x 27 cm) squared
    Adjustments On-screen display
    Colors 262 k (RGB 6-bit)
    Contrast Ratio 500:1
    Display 17" TFT LCD
    Resolution (Maximum) 1280 x 1024
    CE Approval Yes
    Power 100-240-VAC universal switching power with 12-VDC, 4-A output
    Size 1.7"H x 17.3"W x 27.2"D (4.4 x 44 x 69 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServView V with 16-Port KVM Switch, VGA, USB, PS/2:

    Manuals

    • ServView V KVM Tray User Manual
      User Manual for the KVT517A Series (Version 3)
    • ServView V Manual
      Manual for the KVT517A-1UV-R2, KVT517A-8PV, KVT517A-8UV, KVT517A-16PV, KVT517A-16UV, and KVT517A-8DV-WIDE (Version 2)

    Product Data Sheets

    Black Box Explains

    Videos


    Connect your ServView V with 16-Port KVM Switch, VGA, USB, PS/2 with:

    Accessory: EHN70001-0006

    ServSwitch CPU Cable for EC Series & DT Low Profile Series, PS/2, 6-ft. (1.8-m)

    ServSwitch CPU Cable for EC Series & DT Low Profile Series, PS/2, 6-ft. (1.8-m)

    Accessory: EHN9000U-0006

    ServSwitch EC USB Server Cable, 6-ft. (1.8-m)

    ServSwitch EC USB Server Cable, 6-ft. (1.8-m)

    Accessory: EHN70001-0010

    ServSwitch CPU Cable for EC Series and DT Low Profile Series, PS/2, 10-ft. (3.0-m)

    ServSwitch CPU Cable for EC Series and DT Low Profile Series, PS/2, 10-ft. (3.0-m)

    Accessory: EHN9000P-0015

    ServSwitch CPU Cable for EC Series, 15-ft. (4.5-m)

    ServSwitch CPU Cable for EC Series, PS/2, 15-ft. (4.5-m)

    Accessory: EHN9000P-0030

    ServSwitch CPU Cable for EC Series, PS/2, 30-ft. (9.1-m)

    ServSwitch CPU Cable for EC Series, PS/2, 30-ft. (9.1-m)

    Accessory: EHN9000U-0010

    ServSwitch EC USB Server Cable, 10-ft. (3.0-m)

    ServSwitch EC USB Server Cable, 10-ft. (3.0-m)

    Accessory: EHN9000U-0015

    ServSwitch EC USB Server Cable, 15-ft. (4.5-m)

    ServSwitch EC USB Server Cable, 15-ft. (4.5-m)
