KVM > KVM Trays

click photo to enlarge

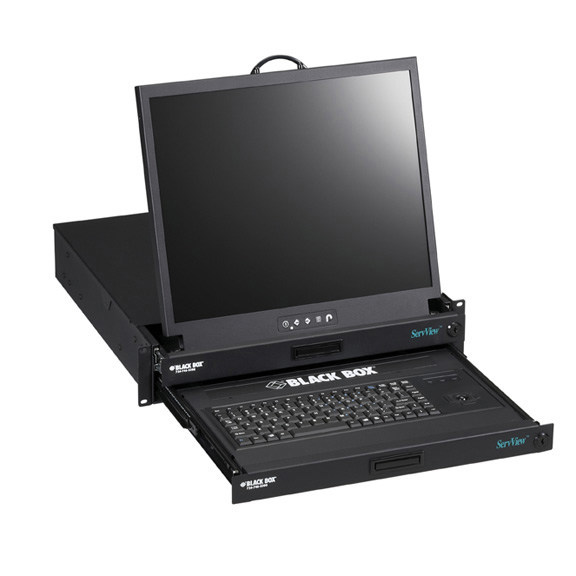

KVT219A-R2

Photo may show similar product

Other views

ServView KVM Drawer with Separate Drawer for Keyboard/Mouse and 19" LCD

Keep the keyboard/mouse stored away while viewing its LCD monitor.

KVT219A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Supports both USB and PS/2.
  • Features a 19" LCD display.
  • Enables you to flip up and view the monitor without pulling out the keyboard/mouse tray.
  • Great for high-security server areas.
  • Keyboard tray features an integrated three-button trackball mouse and a handle.
  • Maximum resolution of 1280 x 1024.

  • Description

    ServView KVM Drawer with Separate Drawer for Keyboard/Mouse and 19" LCD


    Quick Facts

  • Supports both USB and PS/2.
  • Features a 19" LCD display.
  • Enables you to flip up and view the monitor without pulling out the keyboard/mouse tray.
  • Great for high-security server areas.
  • Keyboard tray features an integrated three-button trackball mouse and a handle.
  • Maximum resolution of 1280 x 1024.

  • Further Details

  • Stores away quickly in a cabinet or 4-post rack.
  • Takes up only 2U of rack space.
  • Includes mounting brackets that you can adjust from 15.4" to 25.6" front to rear.
  • LCD has a fold-forward design that enables easy viewing.
  • Keyboard/mouse (PS/2 or USB) and LCD video (VGA) connectors plug into the server via an integrated 3-in-1 cable (included).
  • Easy to install in a standard 19" cabinet or rack with included mounting brackets.
  • Use on-screen display (OSD) controls to easily adjust display resolution and other LCD settings.
  • To control more than one server, just add a ServSwitch™ KVM switch to your ServView™ application.
  • The sturdy design of the drawer assembly stands up to heavy and repeated use.


  • This 2U-high KVM drawer has two sets of sliding rails—one for the keyboard/mouse and one for the LCD—so you can keep server control functions secure while viewing the monitor.

    This unique KVM drawer not only gives you a space-saving solution for a crowded server room, it also features an LCD monitor that can be viewed without having to slide out the keyboard/mouse part of the drawer.

    It’s particularly ideal for cabinet environments where you need to frequently monitor server activity. Just pull out and flip up the LCD panel, close the cabinet door, and view server operation through the glass—all while the drawer containing the keyboard/mouse tray is stored out of the way in the cabinet itself.

    The ServView KVM Drawer with Separate Drawer for Keyboard/Mouse and LCD is a great choice for any cabinet- or rackmount environment where you need server monitoring but want to keep keyboard and mouse functions locked away. That’s because the keyboard/mouse tray features a front-access lock for securing it inside the drawer assembly.

    Like all our ServView solutions, this drawer gives you a more space-efficient replacement for a tabletop KVM station in a server room. By using the drawer, you can get rid of that bulky, antiquated CRT monitor; the full-size keyboard; and the cord-attached mouse. It does this by combining a keyboard, mouse, and monitor with a rugged, 2U-high KVM drawer. Because the keyboard has a three-button mini trackball, you don’t need a separate surface for a mousepad.

    Also available in a 17" version, the flat-screen, matrix TFT LCD panel provides clear video at up to 1280 x 1024 resolution. The LCD part of the drawer comprises a membrane inside an aluminum frame that shields the edge of the LCD screen, its LCD inverter, and its analog-to-digital signal converter board.

    A built-in on-screen display (OSD) provides you with a quickly accessible interface for adjusting display settings to your liking. Change brightness, contrast, screen resolution and refresh rates, adjust the input video sampling clock’s phase, and more. You can even choose from one of seven languages for OSD operation.

    The LCD screen folds into just 2U of space, and the drawer can be mounted at a comfortable working height for you. And because the monitor features a fold-forward design, it enables easy viewing when you’re typing on the keyboard or monitoring operation through a closed glass cabinet door.

    The ServView KVM Drawer with Separate Drawer for Keyboard/Mouse and LCD comes with mounting brackets that you can adjust from 15.4" to 25.6" (39.1 to 65 cm) front to rear for optimal placement of the drawer assembly in a 19" cabinet or 4-post rack.

    Outfitted with a rear metal case, the drawer assembly’s sturdy design stands up to heavy and repeated use. The drawer has two independent sliding rails, one for the LCD and one for the keyboard/mouse tray. Each part moves in and out on ball-bearing telescopic slides that ensure smooth, quiet operation.

    The KVM drawer has a 12-VDC, 5-amp single power adapter and, for maximum energy conservation, offers low-energy standby and suspend modes through VESA Display Power Management Signaling (DPMS). You also get a three-in-one KVM cable for drawer-to-server connections.

    Need to control more than a single server? Then add a compatible ServSwitch KVM switch to your application. You can even install a server, a ServSwitch, and a ServView KVM Drawer in the same cabinet or 4-post rack. For details, contact the experts at ServSwitch Central™ at 724-746-5500 or click "Talk to a Tech".

    What’s included:
  • ServView KVM Drawer with Separate Drawer for Keyboard/Mouse and LCD
  • (2) keys for front-access lock
  • Power adapter with power cord
  • (2) mounting brackets
  • (4) fasteners for mounting brackets
  • 3-in-1 KVM (PS/2 or USB and VGA) cable
  • User’s manual

  • Technical Specifications for ServView KVM Drawer with Separate Drawer for Keyboard/Mouse and 19" LCD:

    Backlight — (4) cold cathode fluorescent tubes
    Brightness — 300 cd/m2
    Contrast Ratio — 700:1
    Display — 19" Class A active matrix TFT LCD panel
    Display Area — 14.8" x 11.9" (37.6 x 30.2 cm)
    Display Colors —16.7 million
    Drawer Color — Black
    Input Signal — Analog RGB 0.7 Vp-p
    OSD Controls — Brightness, contrast, color, clock, H. position, V. position, phase, scaling, autoconfiguration, input select, multi-window, clear EEPROM, OSD adjust
    Resolution (Maximum) — 1280 x 1024
    Sync — Horizontal: 53–79.796 kHz;
    Vertical: 50–75 Hz
    Viewing Angle — 150° x 135°
    CE Approval — Yes
    Connectors — (1) integrated HD15 (VGA), which connects via the included 3-in-1 cable to the server’s HD15 (VGA) and 6-pin mini DIN or USB Type A (PS/2 or USB keyboard and mouse) ports
    Power — 12-VDC adapter with VESA DPMS power management
    Size — 3.5"H (2U) x 17.4"W x 18.9"D (8.9 x 44.2 x 48 cm)
    Weight — 41.9 lb. (19 kg)
    Questions? Contact ServSwitch Central at 724-746-5500 or click “Talk to a Tech.”

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
