KVM > KVM Trays

click photo to enlarge

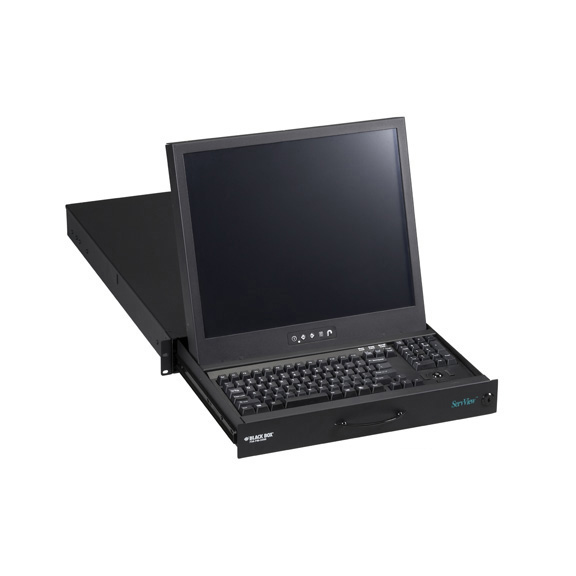

KVT319A-R2

Photo may show similar product

Other views

ServView KVM Drawer with 19" LCD

A KVM tray that saves space in the server room and has a TFT LCD monitor.

KVT319A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Now supports USB and PS/2.
  • Set up a compact workstation inside a cabinet or 4-post rack and reduce server room clutter.
  • Features a 19" Class A active matrix TFT LCD screen with resolutions up to 1280 x 1024.


    • Description

    ServView KVM Drawer with 19" LCD


    Quick Facts

  • Now supports USB and PS/2.
  • Set up a compact workstation inside a cabinet or 4-post rack and reduce server room clutter.
  • Features a 19" Class A active matrix TFT LCD screen with resolutions up to 1280 x 1024.

    • Further Details

  • Includes a USB or PS/2 keyboard and trackball mouse.
  • Mounts in a standard 19" cabinet or 4-post rack.
  • Most units take up just 1U of rack space.
  • High-resolution LCD has a fold-forward design that enables easy viewing.
  • Adjust and fine-tune LCD setting easily using an on-screen display (OSD).
  • Includes mounting hardware and 3-in-1 keyboard, monitor, and mouse cable for server connections.
  • To control more than one USB or PS/2 server, just add a ServSwitch™ KVM switch to your ServView KVM drawer application.

    This compact rackmount drawer not only brings efficient server management to your server room, but it also features a TFT LCD display.

    The ServView™ KVM Drawer with LCD economically combines a keyboard, mouse, and monitor in one rugged drawer. We include a 3-in-1 KVM cable for drawer-to-server connections. Also available with a 17" screen.

    The drawer is also a great replacement for a cabinet- or rack-based workstation that’s overloaded with a bulky, antiquated CRT monitor, a dusty, old full-size keyboard, and cord-attached mouse. By mothballing your old KVM setup and using a ServView KVM Drawer with LCD instead, you not only make better use of rack space, you also significantly upgrade your video display technology.

    The flat-screen LCD unit itself comprises a membrane inside an aluminum front cover that shields the matrix TFT LCD panel, its LCD inverter, and its analog-to-digital signal converter board. What’s more, the monitor’s unique flip-up design enables easy viewing, whether you’re typing on the keyboard or monitoring operation through a closed glass door on a cabinet.

    A built-in on-screen display (OSD) provides you with a user-friendly interface for adjusting display settings to your liking. Change brightness, contrast, screen resolution, and refresh rates; adjust the input video sampling clock’s phase; and more. You can even choose from one of seven languages for OSD operation.

    The ergonomically designed tray features a low-profile, notebook-style keyboard. Because the keyboard has a three-button mini trackball, you don’t need a separate surface for a mousepad.

    The ServView KVM Drawer with LCD comes with mounting brackets that you can adjust from 15.4" to 25.6" (39.1 to 65 cm) front to rear for optimal placement of the drawer assembly in a 19" cabinet or 4-post rack.

    Outfitted with a rear metal case, the drawer assembly’s sturdy design stands up to heavy and repeated use. The keyboard and monitor tray attaches to the drawer case on ball-bearing telescopic slides that ensure smooth, quiet operation.

    When you’re done working, just slide the keyboard and monitor tray back into the cabinet or 4-post rack. To prevent any unwanted movement during use, the slide rails also offer a fixed position. And, for securing access to the workstation and for keeping the tray from sliding out, the drawer features a front-access lock.

    The ServView KVM Drawer with LCD has a 12-VDC, 5-amp power adapter. For maximum energy conservation, the LCD offers low-energy standby and suspend modes through VESA Display Power Management Signaling (DPMS). To find out more about this solution, contact the experts at ServSwitch Central™.

    What’s included:
  • ServView KVM Drawer with LCD
  • (2) keys for front-access lock
  • Power adapter with cord
  • (2) mounting brackets
  • (4) fasteners for mounting brackets
  • Monitor support bracket
  • 3-in-1 KVM cable
  • User’s manual


    • Technical Specifications for ServView KVM Drawer with 19" LCD:

    Backlight — (4) cold cathode fluorescent tubes
    Brightness — 300 cd/m2
    Contrast Ratio — 500:01:00
    Display — 19" Class A active matrix TFT LCD panel
    Display Area — 14.8" x 11.9" (37.6 x 30.2 cm)
    Display Colors — 16.7 million
    Drawer Color — Black
    Input Signal — Analog RGB 0.7 Vp-p
    OSD Controls — Brightness, contrast, color, clock, H. position, V. position, phase, scaling, autoconfiguration, input select, multi-window, clear EEPROM, OSD adjust
    Resolution (Maximum) — 1280 x 1024
    Sync — Horizontal: 53–79.796 kHz; Vertical: 50-75 Hz
    Viewing Angle — 170° x 170°
    CE Approval — Yes
    RoHS — Yes
    Connectors — (1) integrated HD15 (VGA), which connects via included 3-in-1 cable to server’s 6-pin mini DIN (PS/2) or USB Type A (USB) and HD15 (VGA) ports
    Power — 12-VDC adapter with VESA DPMS power management;
    Input: 100 to 240 VAC 1.5A, 50 to 60 Hz
    Size — 2.6"H x 17.4"W x 26.3"D (6.6 x 44.2 x 67 cm)
    Weight — 48.4 lb. (22 kg)

    Questions? Contact ServSwitch Central at 724-746-5500 or by clicking “Talk to a Tech.”

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
