KVM > KVM Trays

click photo to enlarge

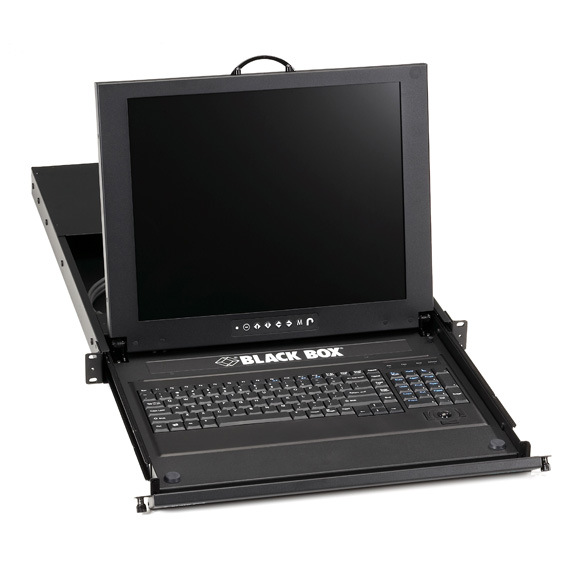

KVTS317A-R2

Photo may show similar product

Other views

  • KVTS317A-R2
  • KVTS317A-R2

ServView KVM Drawer with 17" LCD for Sun

Save space in your server room and monitor your Sun servers on a 17" LCD screen.

KVTS317A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Set up a compact, fully functional workstation inside a 19" cabinet or a 4-post rack.
  • Includes mounting brackets that you can adjust from 15.4" to 25.6" front to rear.
  • Features 17" TFT LCD screen with 1280 x 1024 resolution.


    • Description

    ServView KVM Drawer with 17" LCD for Sun


    Quick Facts

  • Set up a compact, fully functional workstation inside a 19" cabinet or a 4-post rack.
  • Includes mounting brackets that you can adjust from 15.4" to 25.6" front to rear.
  • Features 17" TFT LCD screen with 1280 x 1024 resolution.

    • Further Details

  • 1U high.
  • Includes a USB Sun® compatible keyboard, three-button trackball mouse, and Sun administrative keys on a keypad.
  • Mounts in a standard 19" cabinet or 4-post rack.
  • Keyboard is compatible with all Sun servers.
  • Very compact. Takes up just 1U of rack space.
  • LCD has a flip-up design that enables easy viewing.
  • Adjust and fine-tune LCD setting easily using an on-screen display (OSD).
  • Includes mounting hardware and 2-in-1 keyboard, monitor, and mouse cable for Sun server connections.
  • To control more than one Sun server, just add a ServSwitch™ KVM switch to your ServView Sun KVM drawer application.
  • Drawer assembly’s sturdy design stands up to heavy and repeated use.
  • Supports PS/2 or USB compatible systems.

    • There’s no need to use a tabletop KVM workstation in a server room full of Sun servers. Just put the keyboard, monitor, and mouse in the cabinet or 4-post rack itself and free floor space for additional server room equipment.

    The ServView KVM Drawer with LCD for Sun enables you to do just this by combining a monitor and a low-profile, notebook-style Sun keyboard with trackball mouse in a durable tray assembly—and it can be mounted in just 1U of space!

    By replacing an existing CRT monitor workstation in your server room with a ServView KVM Drawer with LCD for Sun solution, you’ll not only make better use of equipment space, you'll also significantly upgrade your video display technology and establish more user-friendly control over your rackmount servers.

    Ideal for server-dense rack installations, the drawer not only takes up much less space than a standard keyboard, monitor, and mouse, it can also be mounted at a comfortable working height for you. The keyboard and monitor tray attaches to the drawer case on ball-bearing telescopic slides. When you need to access your server, just pull the drawer out on its rails—it glides out smoothly—flip up the monitor, and you have control of your server. When you’re done working, just push it in.

    The ServView KVM Drawer with LCD for Sun works with all Sun servers, including those running the Solaris® operating system. The keypad on the right side of the keyboard can be used as a regular numeric keypad or as a Sun keypad for administration command functions. And because the mouse itself is a three-button mini trackball, you don’t need a separate surface for a mousepad.

    The 17" matrix TFT LCD panels provide video with up to 1280 x 1024 resolution (they also support the Sun native bootup resolution of 1152 x 900 at 76 Hz for Solaris). To fine-tune the monitor’s parameters to your liking, simply access the on-screen display (OSD) on the LCD panel. It gives you an easy-to-manage interface (in one of seven languages) for changing screen resolution and refresh rates, H-V positioning, brightness, contrast, and more.

    This ServView KVM Drawer’s unique fold-backward design for the LCD enables easy viewing while you’re typing at the keyboard or observing the monitor through a cabinet’s closed glass door. The LCD assembly features a membrane framed by an aluminum front cover that shields the screen and its internal circuitry.

    For optimal placement of the assembly in a 19" cabinet or 4-post rack, the ServView KVM Drawer with LCD for Sun comes with mounting brackets that you can adjust from 15.4" to 25.6" (39.1 to 65 cm) front to rear. For securing access to the workstation and from keeping the tray from sliding out, the drawer features a front-access lock.

    Need to control more than a single Sun server? Then add a compatible ServSwitch KVM switch to your application.

    The drawer includes a 2-in-1 KVM cable for drawer-to-server connections, as well as a 12-VDC, 5-amp power adapter. And, for maximum energy conservation, the LCD offers low-energy standby and suspend modes through VESA Display Power Management Signaling (DPMS).

    For a list of all compatible ServSwitch KVM switches, contact our experts at ServSwitch Central™ at 724-746-5500 or by clicking "Talk to a Tech."

    What’s included:
  • ServView KVM Drawer with LCD for Sun
  • Power adapter with power cord
  • (2) mounting brackets
  • (4) fasteners for mounting brackets
  • 2-in-1 KVM cable
  • User’s manual


    • Technical Specifications for ServView KVM Drawer with 17" LCD for Sun:

    Backlight — (4) cold cathode fluorescent tubes
    Brightness — 300 cd/m2
    Contrast Ratio — 700:1
    Display — 17" Class A active matrix TFT LCD panel
    Display Area — 13.3" x 10.6" (33.8 x 26.9 cm)
    Display Colors — 16.2 million
    Drawer Color — Black
    Input Signal — Analog RGB0.7 Vp-p
    OSD Controls — Brightness, contrast, color, clock, H. position, V. position, phase, scaling, autoconfiguration, input select, multiwindow, clear EEPROM, OSD adjust
    Resolution (Maximum) — 1280 x 1024
    Sync — Horizontal: 56.7–82.082 kHz; Vertical: 55–77 Hz
    Viewing Angle — 150° x 135°
    CE Approval — Yes
    Connectors — (1) integrated HD15 (VGA), which connects via included 2-in-1 cable to server USB port and HD15 port
    Power —12-VDC adapter with VESA DPMS power management
    Size — 1.75"H (1U) x 17.4"W x 23.6"D (4.4 x 44.2 x 59.9 cm)
    Weight — 32 lb. (14.5 kg)
    Questions? Contact ServSwitch Central at 724-746-5500 or by clicking “Talk to a Tech.”

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServView KVM Drawer with 17" LCD for Sun:


    Connect your ServView KVM Drawer with 17" LCD for Sun with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Two year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $146.58

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $293.15

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    ServView KVM Drawer with 17" LCD for Sun KVTS317A-R2 $1,465.75

    ServView KVM Drawer with 19" LCD for Sun KVTS319A-R2 $1,675.75
