KVM > KVM Trays

click photo to enlarge

KVT160A-R2-KITC

Photo may show similar product

Other views

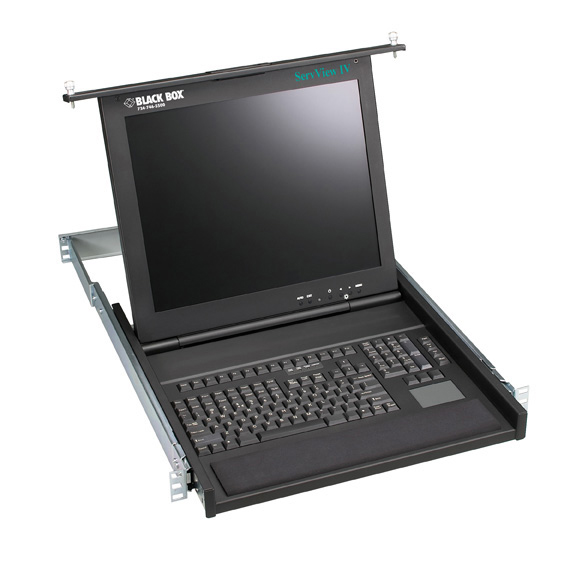

ServView IV Kit C for Sun with USB, 17" LCD Display, 1U, with 8-Port ServSwitch Ultra (KV5008SA-R2)

This rackmountable KVM tray includes an integrated Sun keyboard and mouse, and its LCD folds neatly into a drawer. It also can be integrated with an 8-port KVM switch.

KVT160A-R2-KITC

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Sun keyboard with separate numeric keyboard.
  • 1280 x 1024 maximum resolution.
  • Also available in 19" models that support DVI, VGA, Composite Video, and S-Video.
  • Integrated touchpad mouse.

  • Description

    ServView IV Kit C for Sun with USB, 17" LCD Display, 1U, with 8-Port ServSwitch Ultra (KV5008SA-R2)


    Quick Facts

  • Sun keyboard with separate numeric keyboard.
  • 1280 x 1024 maximum resolution.
  • Also available in 19" models that support DVI, VGA, Composite Video, and S-Video.
  • Integrated touchpad mouse.

  • Further Details

  • Easily installs in standard 19" cabinets with four mounting rails.
  • Clamshell design. Drawer slides out and unfolds for operation, and it folds down and slides in when not needed.
  • Front panel conceals drawer when not in use.
  • Full-size keyboard features separate numeric keypad and special keys for Sun servers.

  • The ServView™ IV KVM console is the easiest and most efficient way ever for you to control your Sun™ CPUs and servers. This 1U version has a 17" TFT/LCD monitor. It comes with a keyboard and a glidepoint touchpad. The ServView IV is neat, compact, and takes up much less space than a standard keyboard, monitor, and mouse. Mount one at a comfortable working height for you. Slide it out to work; push it in when you’re done.

    View video at resolutions up to 1280 x 1024.

    The ServView IV is easy to control, too. Use the front-panel switches to set brightness and contrast, and to call up the on-screen display. Use that display to adjust all the monitor’s parameters.

    For easy operation, the ServView IV features a full-size, tactile keyboard with a separate numeric keypad for Sun servers. It also features a glidepoint touchpad.

    The KVT160A-R2-KITC includes an 8-Port ServSwitch Ultra™, plus a telescoping, rackmount rail assembly; a cable-carrier arm; (8) 10-32 5/8" self-tapping screws; (2) pieces of VELCRO®; (2) power cords; and (1) 1-ft. ServSwitch to keyboard/monitor/mouse cable for Sun.



    Technical Specifications for ServView IV Kit C for Sun with USB, 17" LCD Display, 1U, with 8-Port ServSwitch Ultra (KV5008SA-R2):

    Adjustments — On-screen display
    Colors — 16.7 million
    Contrast Ratio — 150:1 typical
    Controls — Front panel
    Display — 17" TFT/LCD active matrix color
    Keyboard Compatibility — Sun USB
    Mouse — Glidepoint touchpad
    Rack Depth — Minimum: 26" (66 cm); Maximum: 39" (99.1 cm)
    Resolution (Maximum) — 1280 x 1024 @ 75 Hz
    Video Compatibility — VGA, SVGA, XGA, Mac® VGA, Mac XGA
    CE Approval — Yes
    Connectors — Keyboard and mouse: (1) USB Type A M; Monitor: (1) HD15 M
    ServSwitch: See ServSwitch Ultra (KV5008SA-R2)
    Power — 90–240 VAC, 50–60 Hz, autosensing
    Size — 1.75"H (1U) x 19"W x 25.5" to 39"D (4.4 x 48.3 x 64.8 to 99.1 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServView IV Kit C for Sun with USB, 17" LCD Display, 1U, with 8-Port ServSwitch Ultra (KV5008SA-R2):

    Product Data Sheets


    Connect your ServView IV Kit C for Sun with USB, 17" LCD Display, 1U, with 8-Port ServSwitch Ultra (KV5008SA-R2) with:
