KVM > KVM Trays

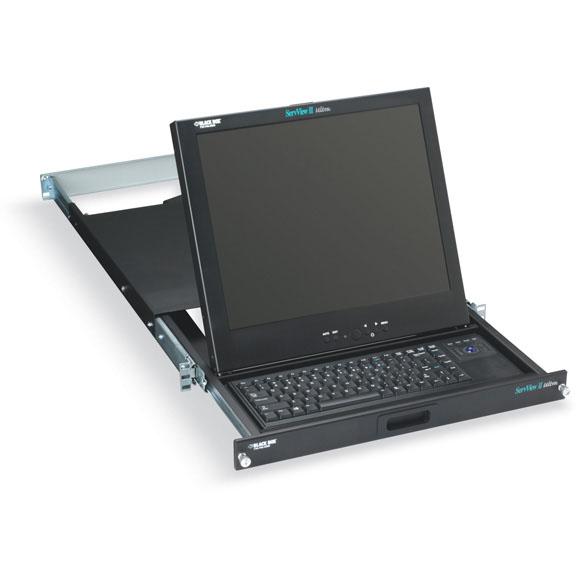

click photo to enlarge

KVT130A-R4-KITD

Photo may show similar product

Other views

ServView II Ultra with PS/2 Keyboard and Trackball Mouse – Kit D with 8-Port Multiplatform Matrix ServSwitch (SW762A-R4)

Save space and organize your work with this combination KVM console drawer and Multiplatform Matrix ServSwitch Slim!

KVT130A-R4-KITD

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • The included Multiplatform Matrix ServSwitch controls up to eight PC and Sun computers from two workstations.
  • PS/2 keyboard with superior optical trackball mouse.
  • 17" multisync TFT/LCD monitor with 1280 x 1024 resolution.
  • Slides out for operation; slides in when not needed.
  • Installs in a standard 19" cabinet or four-post rack.
  • A front panel conceals the drawer when not in use.

  • Description

    ServView II Ultra with PS/2 Keyboard and Trackball Mouse – Kit D with 8-Port Multiplatform Matrix ServSwitch (SW762A-R4)


    Quick Facts

  • The included Multiplatform Matrix ServSwitch controls up to eight PC and Sun computers from two workstations.
  • PS/2 keyboard with superior optical trackball mouse.
  • 17" multisync TFT/LCD monitor with 1280 x 1024 resolution.
  • Slides out for operation; slides in when not needed.
  • Installs in a standard 19" cabinet or four-post rack.
  • A front panel conceals the drawer when not in use.

  • Further Details

    Ultra neat
    This ServView™ II Ultra gives you the ultimate in workspace simplicity. The rackmount workstation takes only 1U of space, and you can mount it in your full-size cabinet or four-post rack. The easy-glide drawer is simple to install and use. Just slide it out of the rack and flip up the flat-screen monitor.

    Make quick adjustments with the front-panel controls. Or use the on-screen display to easily adjust color, brightness, contrast, etc. Then, when you’re done working, just slide the drawer right back into the rack, leaving your server room looking neat and presentable.

    Ultra clear
    The screen is a 17" multisync TFT/LCD monitor that supports resolutions of 1280 x 1024 at 75 Hz.

    This ServView II Ultra Kit includes the Multiplatform Matrix ServSwitch (SW762A-R4) controls eight PC and Sun servers from two workstations.
    The ServSwitch fits into the same 1U of rack space as the ServView II Ultra.

    What’s included:
  • Multiplatform Matrix ServSwitch
  • Telescoping, rackmount rail assembly
  • Cable-carrier arm
  • (8) 10-32 5/8" self-tapping screws
  • PS/2 serial adapter
  • (2) pieces of VELCRO®
  • (2) power cords
  • User cable
  • User’s manual
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for ServView II Ultra with PS/2 Keyboard and Trackball Mouse – Kit D with 8-Port Multiplatform Matrix ServSwitch (SW762A-R4):

    Adjustments — On-screen display
    Colors — 16.7 million
    Contrast Ratio — 150:1 typical
    Controls — Front panel
    Display — 17" TFT/LCD active matrix color
    Keyboard Compatibility — PC, AT®/XTR®, PS/2, USB
    Resolution (Maximum) — 1280 x 1024 at 75 Hz
    Space Requirements — To add a KVM switch to KVT130A-R3, KVT166A, KVT176A, or KVT186A: Minimum depth: 27" (68.6 cm); Maximum depth: 36" (91.4 cm)
    Video Compatibility — VGA, SVGA, XGA, Mac® VGA, Mac XGA
    CE Approval — Yes
    Connectors — Keyboard: (1) 6-pin mini DIN M;
    Mouse: (1) 6-pin mini DIN M;
    Monitor: (1) HD15 M;
    ServSwitch: See individual presentations on blackbox.com:
    Multiplatform Matrix ServSwitch (SW762A-R4)
    Power — 90–240 VAC, 50–60 Hz, autosensing
    Size — 1.75"H (1U) x 19"W x 33" to 36"D (4.4 x 48.3 x 83.8 to 91.4 cm)
    Weight — 36 lb. (16.3 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServView II Ultra with PS/2 Keyboard and Trackball Mouse – Kit D with 8-Port Multiplatform Matrix ServSwitch (SW762A-R4):

    Product Data Sheets


    Connect your ServView II Ultra with PS/2 Keyboard and Trackball Mouse – Kit D with 8-Port Multiplatform Matrix ServSwitch (SW762A-R4) with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $375.00

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $749.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price! That's getting three years for the price of two.

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
