KVM > KVM Trays

click photo to enlarge

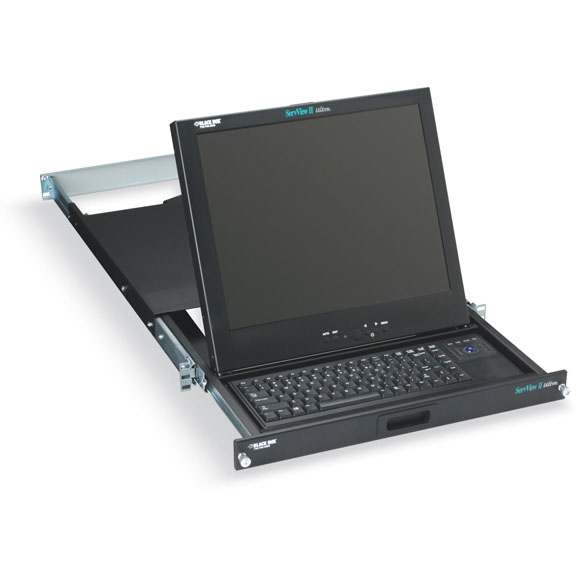

KVT130A-R4-KITB

Photo may show similar product

Other views

ServView II Ultra with PS/2 Keyboard and Trackball Mouse – Kit B with a Matrix ServSwitch 8-Port Slim (SW742A-R3)

Save space and organize your work with this combination KVM console drawer and Matrix ServSwitch!

KVT130A-R4-KITB

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • The included Matrix ServSwitch controls up to eight PC-only CPUs from two workstations.
  • PS/2 keyboard with superior optical trackball mouse.
  • 17" multisync TFT/LCD monitor with 1280 x 1024 resolution.
  • Slides out for operation; slides in when not needed.
  • Installs in a standard 19" cabinet or four-post rack.
  • A front panel conceals the drawer when not in use.


    • Description

    ServView II Ultra with PS/2 Keyboard and Trackball Mouse – Kit B with a Matrix ServSwitch 8-Port Slim (SW742A-R3)


    Quick Facts

  • The included Matrix ServSwitch controls up to eight PC-only CPUs from two workstations.
  • PS/2 keyboard with superior optical trackball mouse.
  • 17" multisync TFT/LCD monitor with 1280 x 1024 resolution.
  • Slides out for operation; slides in when not needed.
  • Installs in a standard 19" cabinet or four-post rack.
  • A front panel conceals the drawer when not in use.

    • Further Details

    Ultra neat
    This ServView™ II Ultra gives you the ultimate in workspace simplicity. The rackmount workstation takes only 1U of space, and you can mount it in your full-size cabinet or four-post rack. The easy-glide drawer is simple to install and use. Just slide it out of the rack and flip up the flat-screen monitor.

    Make quick adjustments with the front-panel controls. Or use the on-screen display to easily adjust color, brightness, contrast, etc. Then, when you’re done working, just slide the drawer right back into the rack, leaving your server room looking neat and presentable.

    Ultra clear
    The screen is a 17" multisync TFT/LCD monitor that supports resolutions of 1280 x 1024 at 75 Hz.

    Ultra connection options.
    This ServView II Ultra Kit includes the Matrix ServSwitch (SW742A-R3), which controls up to eight PC-only CPUs from two workstations.
    The ServSwitch fits into the same 1U of rack space as the ServView II Ultra.

    What’s included:
  • Matrix ServSwitch
  • Telescoping, rackmount rail assembly
  • Cable-carrier arm
  • (8) 10-32 5/8" self-tapping screws
  • PS/2 serial adapter
  • (2) pieces of VELCRO®
  • (2) power cords
  • Flash upgrade kit
  • User cable
  • User’s manual
    • Questions? Contact our FREE Tech Support.


    Technical Specifications for ServView II Ultra with PS/2 Keyboard and Trackball Mouse – Kit B with a Matrix ServSwitch 8-Port Slim (SW742A-R3):

    Adjustments — On-screen display
    Colors — 16.7 million
    Contrast Ratio — 150:1 typical
    Controls — Front panel
    Display — 17" TFT/LCD active matrix color
    Keyboard Compatibility — PC, AT®/XTR®, PS/2, USB
    Resolution (Maximum) — 1280 x 1024 at 75 Hz
    Space Requirements — Minimum depth: 27" (68.6 cm); Maximum depth: 36" (91.4 cm)
    Video Compatibility — VGA, SVGA, XGA, Mac® VGA, Mac XGA
    CE Approval — Yes
    Connectors — Keyboard: (1) 6-pin mini DIN M;
    Mouse: (1) 6-pin mini DIN M;
    Monitor: (1) HD15 M
    ServSwitch: See presentation on blackbox.com:
    ServSwitch (KV3108SA-R5);
    Power — 90–240 VAC, 50–60 Hz, autosensing
    Size — 1.75"H (1U) x 19"W x 33" to 36"D (4.4 x 48.3 x 83.8 to 91.4 cm)
    Weight — 36 lb. (16.3 kg)
