KVM > KVM Trays

click photo to enlarge

KVT122A#R3

Photo may show similar product

Other views

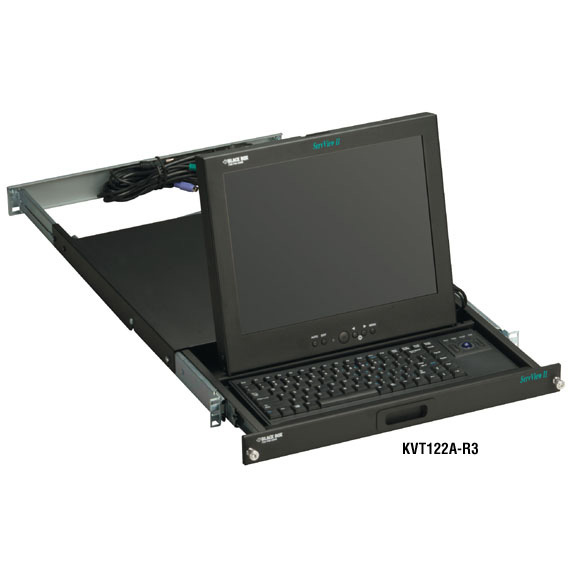

ServView II, Basic, (Next-to-New/Refurbished)

Control servers from this console drawer with an included ServSwitch or outfit it with a KVM switch of your choice!

KVT122A#R3


One year Warranty

Product Highlights

  • The efficient 1U rackmountable KVM console drawer with an optional single- or multiuser ServSwitch!
  • Quick and easy installation.
  • Fits in a standard 19" cabinet with four mounting rails.

  • Description

    ServView II, Basic (Next-to-New/Refurbished) Limited Quantities Available


    Quick Facts

  • The efficient 1U rackmountable KVM console drawer with an optional single- or multiuser ServSwitch!
  • Quick and easy installation.
  • Fits in a standard 19" cabinet with four mounting rails.

  • Further Details

  • Includes a 15" LCD panel.
  • Monitor has front-panel controls for easy adjustment.
  • Integrated trackball provides easy mouse movement.
  • Full-size keyboard for typing comfort.
  • Heavy-duty keyboard and trackball.
  • Front panel conceals unit when it’s not in use.
  • Supports AT®/XT®, PS/2®, UNIX®, Sun, and Macintosh computers.

    The rugged ServView™ II is the most efficient way to control server rooms and multiple computers. It’s a rackmountable KVM console drawer that’s available with an optional built-in ServSwitch™.

    The console drawer contains a 15" 1024 x 768 LCD monitor, a full-size keyboard, and a trackball—and it occupies only 1U of rack space! To maintain an attractive server room, the rugged ServView II is concealed behind its front panel when it’s not in use.

    ServView II is available in a basic model or with a built-in ServSwitch—and the ServSwitch fits into the same 1U of rack space as the ServView II. Choose the ServSwitch you need:
    • The ServSwitch for control of eight PC-only computers.
    • The Matrix ServSwitch to command up to eight PC-only computers from two workstations.
    • The ServSwitch Ultra™ for multiplatform use with eight PC, Macintosh®, and Sun® computers.
    • The Multiplatform Matrix ServSwitch to control up to eight PC and Sun computers from two workstations.

  • Technical Specifications for ServView II, Basic, (Next-to-New/Refurbished):

    Colors — 16.7 million
    Contrast Ratio — 150: 1 typical
    Display — 15" TFT/LCD Active Matrix Color
    Keyboard Compatibility — PC, AT®/XT®, PS/2
    Resolution (Maximum) — 1024 x 768 at 75 Hz
    Trackball Mouse Compatibility — PS/2 or serial
    Video Compatibility — VGA, SVGA, XGA, Mac® VGA, Mac XGA
    CE Approval — Yes
    Connectors — Keyboard: (1) PS/2 6-pin mini DIN;
    Mouse: (1) PS/2 6-pin mini DIN;
    ServSwitch: See individual presentations:
    8-Port ServSwitch (KV3108SA-R5);
    Matrix ServSwitch for PC (SW742A-R3);
    8-Port ServSwitch Ultra (KV5008SA-R2);
    Multiplatform Matrix ServSwitch (SW762A-R4)
    Power — 90–240 VAC, 50–60 Hz, autosensing
    Size — Chassis only: 1.75"H x 19"W x 23.4"D (4.4 x 48.3 x 59.4 cm);
    KVT122A-R3: Mounts in a cabinet 28" (71.1 cm) to 36" (91.4 cm) deep;
    All others: Mount in a cabinet 33.5" (85.1 cm) to 36" (91.4 cm) deep
    Weight — KVT122A-R3: 37.7 lb. (17.1 kg);
    KVT122A-R3-KITA, KVT122A-R3-KITB, KVT122A-R3-KITC, KVT122A-R3-KITD: 43 lb. (19.5 kg)
    NOTE: For Sun video cards other than VGA, contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
