KVM > KVM Trays

click photo to enlarge

KVT417A-16-1IP

Photo may show similar product

Other views

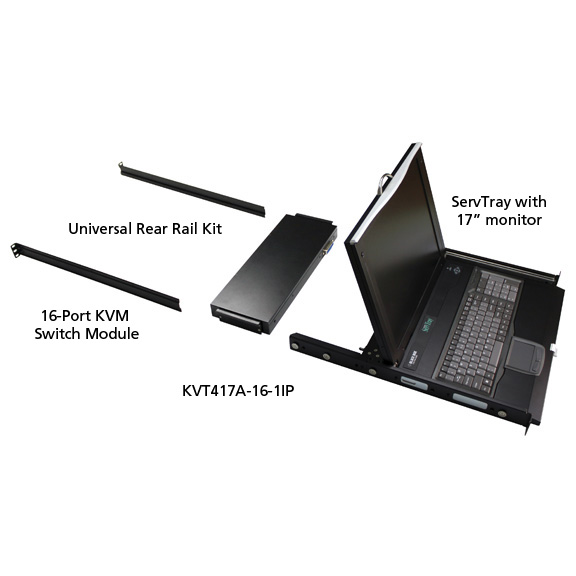

ServTray Complete with 16-Port KVM Access Module, 17" LCD, VGA, USB and PS/2, and (1) IP Port

Install a rackmounted keyboard, monitor, and mouse together with a KVM switch module and an IP port for even easier access.

KVT417A-16-1IP

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Reduce clutter in your server room.
  • Get a 17" monitor with an integral KVM switch and an IP port.
  • Securely access and control up to 16 remote servers across any TCP/IP network.


    • Description

    ServTray Complete with 16-Port KVM Access Module, 17" LCD, VGA, USB and PS/2, and (1) IP Port


    Quick Facts

  • Reduce clutter in your server room.
  • Get a 17" monitor with an integral KVM switch and an IP port.
  • Securely access and control up to 16 remote servers across any TCP/IP network.

    • Further Details

  • Mounts in a standard 19" cabinet or four-post rack with depths from 23.7" to 45.3".
  • Compact—only 1U high.
  • Includes a full-sized keyboard and a touchpad with an ergonomic hand rest.
  • A front panel conceals the unit when not in use.

    • The ServTray Complete adds an integral KVM switch and an IP port to its keyboard, monitor, and mouse, and packs it all into only 1U of rack space. It mounts on standard 19" rails in any standard server cabinets and enables you to manage as many as 16 PS/2 or USB servers or a combination of the two. If you’re looking for a way to make your server room even more functional without sacrificing valuable space, you’ve found it!

    Additionally, this ServTray Complete offers an IP port for secure access and control of remote servers over any TCP/IP network. The IP port is SNMP manageable, and can be used with any Java enabled Web browser or VNC client. Its security features include SSL encryption, SSH tunneling, and RADIUS authentication. You can easily set up password-protected accounts for users. By adding serial modules (KV9-SRL), you can also manage up to 16 serial devices. And the KVM switch is cascadable to up to 136 servers.


    Save space, increase efficiency.
    Designed for heavy-duty use, the ServTray Complete can replace that bulky local workstation you’ve been using. Just slide out the drawer and open the flat-screen monitor.

    The ServTray Complete features a full-sized 105-key keyboard—no trying to type on tiny keys too small for your fingertips. The touchpad includes an ergonomic hand rest.

    When you’re done, simply slide it back in place. The front panel conceals the unit when not in use.

    Choose the size that’s right for you.
    This ServTray Complete features a 17" TFT/LCD monitor. It is also available with a 19" monitor (KVT419A-R2). This model includes a 16-port integrated KVM access module; models with 1 or 16 ports are also available. Don't forget the cables! This ServTray Complete requires PS/2 or USB cables (EHN70001 for PS/2 only; EHN9000U for PS/2 or USB).

    Easy mounting.
    The ServTray Complete includes a universal rear rail kit, which mounts the ServTray on the front and rear rails with a depth of 23.7" to 45.3". That’s rail depth, not total cabinet depth, so if you have extra-deep cabinets, the ServTray will still fit as long as the rail depth is within limits.

    Both ServTray and its switch module are powered through an autosensing 100- to 240-VAC power supply that plugs right into the nearest power strip or PDU.

    What’s included:
  • ServTray KVM tray
  • KVM switch module
  • Power supply
  • Power cord
  • Universal rear rail kit: (2) brackets, (2) extenders, (8) screws
  • User’s manual


    • Technical Specifications for ServTray Complete with 16-Port KVM Access Module, 17" LCD, VGA, USB and PS/2, and (1) IP Port:

    Connection/Switch Modules:
    Environmental — Operating temperature: 32 to 104° F (0 to 40° C); Operating humidity: Up to 80%, noncondensing
    Supported Operating Systems — Windows® 98/Me/2000/XP, Windows NT, Windows Vista®, Windows 7
    CE Approval — Yes
    RoHS — Yes
    Connectors — (1) Centronics® 36 F, (1) barrel connector for power;
    Computer: (16) HD15 F,
    Console: (1) HD15 F, (2) 6-pin mini DIN F Power — From ServTray: 12 VDC, 3 A; May also accept 9–12 VDC, 500 mA from external power supply (not inlcuded) through barrel connector
    Size — 1.75"H (1U) x 17.3"W x 7"D (4.6 x 43.8 x 18 cm)
    Weight — 5.7 lb. (2.6 kg)
    Trays:
    Active Display Area — 10.6"H x 13.3"W (27 x 33.8 cm)
    Brightness — 250 (center)
    Contrast Ratio — 450:1
    Display Color — 262 K colors
    Resolution — 1280 x 1024 @ 60 Hz
    CE Approval — Yes
    RoHS — Yes
    Connectors — (1) Centronics® 36 M
    Power — External power supply: 100–240-VAC, 47–63 Hz;
    Output: 12 VDC; Draw: 33 watts
    Size — 1.75"H (1U) x 17"W x 19.5" to 39.5"D (4.4 x 43.2 x 49.5 to 100.3 cm)
    Weight — 23 lb. (10.4 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServTray Complete with 16-Port KVM Access Module, 17" LCD, VGA, USB and PS/2, and (1) IP Port:


    Connect your ServTray Complete with 16-Port KVM Access Module, 17" LCD, VGA, USB and PS/2, and (1) IP Port with:

    Accessory: KV9-SRL

    Serial Access Unit

    Serial Access Unit

    » more info

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.
