KVT417A-8CATX-1IP

Photo may show similar product

Other views

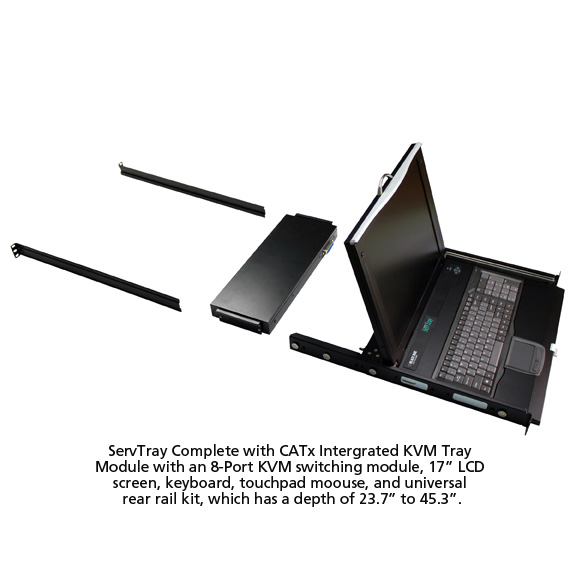

ServTray Complete, 17" Screen, with CATx Integrated KVM Tray Module, 8-Port, CATx with IP

Access your KVM tray remotely to manage your servers over the Internet.

KVT417A-8CATX-1IP

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • KVM over IP remote access.
  • Multiplatform support using USB, PS/2, or Sun™ compatible SAMs.
  • Supports VNC and Web browser remote access.
  • Management software included.

  • Description

    ServTray Complete, 17" Screen, with CATx Integrated KVM Tray Module, 8-Port, CATx with IP


    Quick Facts

  • KVM over IP remote access.
  • Multiplatform support using USB, PS/2, or Sun™ compatible SAMs.
  • Supports VNC and Web browser remote access.
  • Management software included.

  • Further Details

  • CATx patch cables ensure neat rack installation.
  • Control via on-screen display (OSD) menu, hotkeys, or mouse.
  • Expand the system by using the ServSwitch CX Uno (KV0161A, KV0081A).
  • Users can enable password security access with user profiles, respond to RS-232 switching commands, and much more.
  • Comes with free WIZARD.NET management software, simplifying the access, security, and management systems with larger numbers of computers or users.
  • Also available with 16 ports and in a 4-user version.

  • Control up to 8 multiplatform computers from your KVM tray console, with expansion options to increase the number of servers available. Use convenient network-style CATx patch cables—thin flexible cables that are popular in racked applications, such as our Gigabase® CAT5e cables (EVNSL81). Add USB, PS/2, and Sun style server access modules (SAMs) for each server connection.

    The switching module offers various port configurations and remote access options. This KVM module enables network users to control the switching module from a computer on the LAN or WAN using a VNC viewer or Web browser.

    What's included
  • KVM tray with keyboard, touchpad, and LCD monitor
  • KVM module
  • Power supply
  • Universal rear rail kit
  • User's manual

  • This product works with:
  • Gigabase CAT5e cables (EVNSL81)
  • ServSwitch™ CX Uno (KV0161A, KV0081A)
  • ServSwitch CX Server Access Modules for PS/2 or USB (KV1400A–1404A)
  • Questions? Call our FREE Tech Support.


    Technical Specifications for ServTray Complete, 17" Screen, with CATx Integrated KVM Tray Module, 8-Port, CATx with IP:

    CE Approval Yes
    RoHS Yes

    This product works with:
  • Gigabase CAT5e cables (EVNSL81)
  • ServSwitch™ CX Uno (KV0161A, KV0081A)
  • ServSwitch CX Server Access Modules for PS/2 or USB (KV1400A–1404A)
  • Questions? Contact our FREE Tech Support.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServTray Complete, 17" Screen, with CATx Integrated KVM Tray Module, 8-Port, CATx with IP:

    Manuals

    • ServTray Complete, 17" Screen, with CATx Integrated KVM Tray Module Manual
      Manual for KVT417A Series and KVT517A Series (Version 1)

    Firmware

    • ServTray Complete with CATx Integrated KVM Tray Module Firmware
      Firmware for the KVT417A-16CATX-1IP, KVT417A-8CATX-1IP, KVT419A-16CATX-1IP, KVT419A-8CATX-1IP, & KVT517A-16CATX-1IP (Version 1.12)
