KVM > Desktop

click photo to enlarge

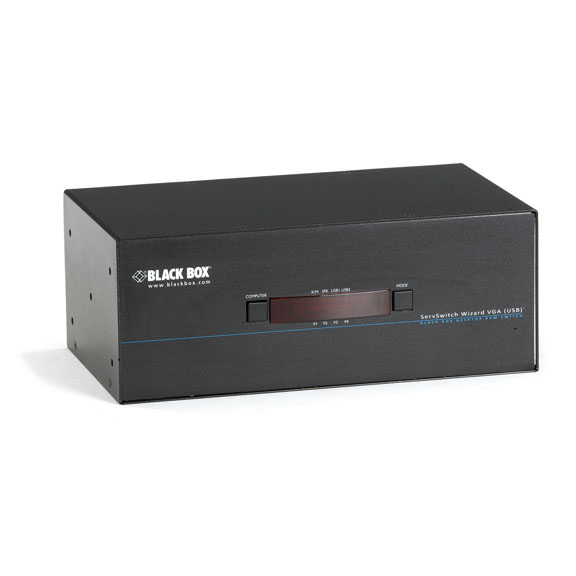

KV3304A

Photo may show similar product

Other views

ServSwtich Wizard VGA, USB, Tri-Head Video

High-end DVI KVM switching for multiple tri-head computers and USB devices.

KV3304A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • A flexible, professional-grade KVM switch for high-performance, multihead KVM switching.
  • Enables a single user to control four computers fitted with tri-head video and to share USB peripherals among them.
  • Supports access to three video heads on each channel. Switch VGA video, keyboard, and mouse streams to multiple CPUs.
  • Supports high resolutions up to 1920 x 1200.

  • Description

    ServSwtich Wizard VGA, USB, Tri-Head Video


    Quick Facts

  • A flexible, professional-grade KVM switch for high-performance, multihead KVM switching.
  • Enables a single user to control four computers fitted with tri-head video and to share USB peripherals among them.
  • Supports access to three video heads on each channel. Switch VGA video, keyboard, and mouse streams to multiple CPUs.
  • Supports high resolutions up to 1920 x 1200.

  • Further Details

    Intelligent options port
    This highly flexible KVM switch centralizes and simplifies high-end, multihead video switching access at a single user console with three VGA screens.

    Plus, with advanced support for multiple high-speed USB devices, the ServSwitch Wizard VGA, USB serves today’s busy multitaskers quite well.

    It’s ideal for IT administrators and medical imaging, graphic design, and broadcast studio professionals who not only require quick, reliable access to multiple computer CPUs and multiple video channels, but also need simultaneous access to a mix of USB peripherals.

    Select a channel on the ServSwitch Wizard VGA using hotkeys, a three-button mouse, or the switch’s front-panel controls. When autoscan is enabled, the switch cycles between connected computers in sequence automatically. A seven-segment numeric display indicates the selected channel.

    Multihead video channel access—simplified.
    The ServSwitch Wizard VGA enables a single KVM workstation user to control four separate computer systems or servers and flexibly share peripherals among them.

    In addition to multihead VGA video KVM user console inputs for multiscreen workstations, the switch features three VGA video connectors on each of its four computer channels. This way, you have easy access to three video heads on each channel. For DVI support, see the ServSwitch Wizard DVI Dual-Link with True USB Emulation models (KV2X04A series).

    Each video head channel on this high-quality switch supports VGA video. Plus, it supports high resolutions, whether you need 1920 x 1200 video for post-production type work or 1920 x 1200 image clarity for very detailed medical or R&D lab imaging.

    In addition to multiple video connectors, each computer channel on the ServSwitch Wizard VGA has USB Type B and a 3.5-mm audio jack inputs.

    Multicomputer and multiperipheral access.
    This high-performance, multimedia switching platform offers more than just straight switching between four multihead computer systems.

    You can also use a KVM console to work on one computer while your favorite USB devices remain connected to other computers, all easily accessible to you. And because the ServSwitch Wizard VGA supports audio connectivity, you can connect speakers to yet another computer (audio can be switched independently from USB and video).

    The unit’s rear panel has two USB Type A ports as part of its KVM user console connections plus separate switched USB Type A ports for additional USB 2.0 connectivity. You can reassign any of the connected USB peripherals to any of the connected computers quickly. Attached devices can either be switched in unison, or you can mix peripherals between any of the systems.

    The switch supports a wide range of USB devices, especially high-speed USB 2.0 peripherals on its switched USB ports. Printers, scanners, and non-standard HID devices can all be attached. For instance, you can be creating e-mails on one system, listening to audio on a second one, printing from a third computer, and scanning documents on a Flash drive—all at the same time.
    Product includes:
  • (1) ServSwitch Wizard VGA, USB KVM switch unit
  • (1) AC power adapter
  • (1) CD-ROM with user manual
  • (4) self-adhesive rubber feet


  • Technical Specifications for ServSwtich Wizard VGA, USB, Tri-Head Video:

    CE Approval — Yes
    RoHS — Yes
    Connectors — KVM user console:
    Video: (1) VGA;
    Keyboard/Mouse: (2) USB Type A (emulated);
    Audio: (1) 3.5-mm stereo jack;
    Switched USB: (2) USB Type A (USB 2.0, not emulated);

    Computer channels (each of 4): (3) VGA;
    Keyboard/mouse: (1) USB Type B;
    Audio: (1) 3.5-mm stereo jack;

    Serial option/flash upgrade port: (1) RJ-45 10P10C (RS-232), for syncing control with second KVM switch or for flash upgrades
    Power — Input: 100–240 VAC, 50–60 Hz;
    Output: 5 VDC, 2 A
    Size — 3.94"H (2.5U) x 10.24"W x 5.9"D (10 x 26 x 15 cm)
    Weight — 2.1 lb. (0.95 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwtich Wizard VGA, USB, Tri-Head Video:

    Manuals

    • ServSwitch Wizard VGA Manual
      Manual for the KV3004A, KV3304A, KV3204A, & KV3404A (7/1/2010)

    Firmware

    • ServSwitch Wizard VGA, USB, Single-Head Video, Firmware
      Firmware for the KV3004A, KV3204A, KV3304A, and KV3404A (Version 1.60)
    • ServSwitch Wizard VGA Firmware
      Firmware for the KV3004A, KV3204A, KV3304A, KV3404A
