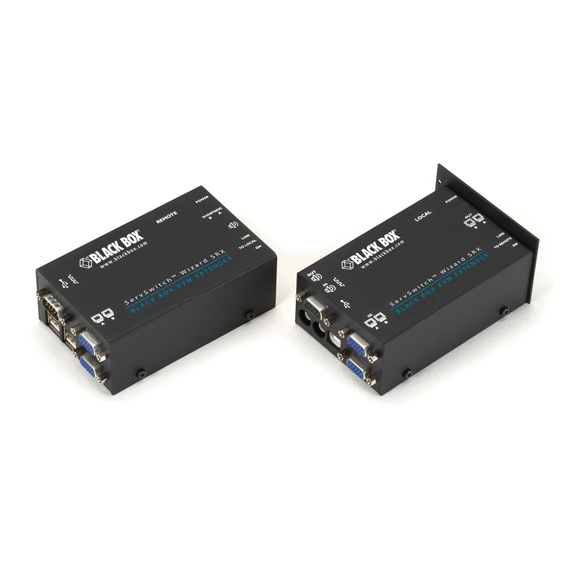

ACU5052A

Photo may show similar product

Other views

ServSwitch Wizard USB SRX KVM Extenders, Dual-Video, USB, Audio, and RS-232

Extend high-resolution VGA with USB 1.1 or 2.0 and stereo audio more than 160 feet over CATx cable.

ACU5052A

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Transparent USB 1.1 and USB 2.0 support up to 164 feet (50 m) over a single CATx cable.
  • Supports resolutions up to 1920 x 1440 at 60 Hz.
  • Extends video, audio, USB keyboard and mouse, and up to two USB peripherals.


  • Further Details

  • DDC EDID reads from the display, eliminating plug-and-play issues.
  • Local VGA and stereo audio feedthrough.
  • Works with RS-232.
  • Rack up to 8 units with the Rackmount Chassis for ServSwitch KVM Extender (ACU5000A).

    The power of transparent USB
    ServSwitch Wizard™ USB SRX KVM Extender, Dual-Video, from Black Box combine VGA, USB 1.1 or USB 2.0, audio, and RS-232 and send them up to 164 feet across a single CATx cable. It's easy to fine-tune the video image on the remote unit and get crystal-clear stereo audio and transparent USB.

    DDC EDID read and store support
    Modern graphics adapter cards—even with analog output—require the presence of Display Data Channel (DDC) information. Without it, they output low-quality video or none at all. The ServSwitch Wizard USB SRX Extender reads the DDC information from the attached display and stores it in the local unit's non-volatile memory.

    Small form factor
    The ServSwitch Wizard USB SRX KVM Extender's compact chassis enables you to mount it side by side in the Rackmount Chassis for ServSwitch KVM Extender (ACU5000A). Use it to mount up to eight dual-video versions in just 2U.


    Support for RS-232
    This model of the SRX series uses two CATx links to transmit the signals. The second video link carries a transparent RS-232 port up to 19.2 kbps.

    Local access
    The local unit has audio and VGA feed-through, giving you local access just by plugging a keyboard and mouse directly into the spare PC USB ports.

    What's included:
  • Local unit
  • Remote unit
  • Power supply
  • IEC 320 power cord
  • (2) VGA cables
  • USB cable A-B
  • Audio cable
  • DB9 serial cable
  • Mounting plate for local or remote unit
  • Safety guide

  • Connectors Local Unit: (2) RJ-45; (1) USB Type B; (4) HD15; (2) 3.5-mm audio jacks F; (1) DB9 F; (1) barrel jack;
    Remote Unit: (2) RJ-45; (4) USB Type A F; (2) HD15 F for VGA; (1) 3.5-mm audio jack F; (1) DB9 M; (1) barrel jack for power
    Power Autosensing 100-240 VAC/5 VDC 2.5 A (PS649-R3)
    Dimensions 2"H x 2.9"W x 4.9"D (5.2 x 7.5 x 12.5 cm)
    Weight 1.1 lb. (0.5 kg)

    What's included:
  • Local unit
  • Remote unit
  • Power supply
  • IEC 320 power cord
  • (2) VGA cables
  • USB cable A-B
  • Audio cable
  • DB9 serial cable
  • Mounting plate for local or remote unit
  • Safety guide

  • This product works with:
  • Rackmount Chassis for ServSwitch Wizard Extender (ACU5000A)
  • 5-VDC Power Supply (PS649-R3)
