KVM > Extenders

click photo to enlarge

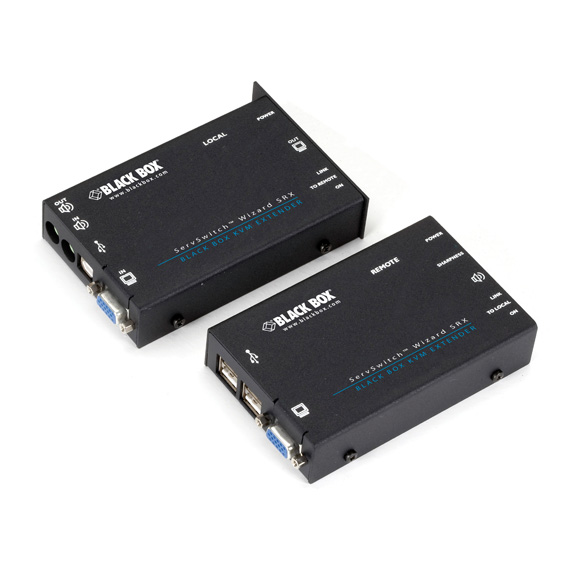

ACU5051A

Photo may show similar product

Other views

ServSwitch Wizard USB SRX KVM Extender, Single-Video, USB, and Audio

Extend high-resolution VGA with USB 1.1 or 2.0 and stereo audio more than 160 feet over CATx cable.

ACU5051A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Transparent USB 1.1 and USB 2.0 support up to 164 feet (50 m) over a single CATx cable.
  • Support resolutions up to 1920 x 1440 at 60 Hz.
  • Extend video, audio, USB keyboard and mouse, and up to two USB peripherals.

  • Description

    ServSwitch Wizard USB SRX KVM Extender, Single-Video, USB, and Audio


    Quick Facts

  • Transparent USB 1.1 and USB 2.0 support up to 164 feet (50 m) over a single CATx cable.
  • Support resolutions up to 1920 x 1440 at 60 Hz.
  • Extend video, audio, USB keyboard and mouse, and up to two USB peripherals.

  • Further Details

  • DDC EDID reads from the display, eliminating plug-and-play issues.
  • Local VGA and stereo audio feedthrough.
  • Rack up to 16 units with the Rackmount Chassis for ServSwitch KVM Extender (ACU5000A).

    The power of transparent USB
    The ServSwitch Wizard™ USB SRX KVM Extender, single-video, from Black Box combines VGA, USB 1.1 or USB 2.0, and audio, and sends them up to 164 feet across a single CATx cable. It’s easy to fine-tune the video image on the remote unit and get crystal-clear stereo audio and transparent USB.

    DDC EDID read and store support
    Modern graphics adapter cards—even with analog output—require the presence of Display Data Channel (DDC) information. Without it, they output low-quality video or none at all. The ServSwitch Wizard USB SRX Extender reads the DDC information from the attached display and stores it in the local unit’s non-volatile memory.

    Small form factor
    The ServSwitch Wizard USB SRX KVM Extender’s compact chassis enables you to mount it side by side in the Rackmount Chassis for ServSwitch KVM Extender (ACU5000A). Use it to mount up to 16 single-video units in just 2U.


    Local access
    The local unit features audio and VGA feed-through, giving you local access just by plugging a keyboard and mouse directly into the spare PC USB ports.

    Dual-user configuration
    With two single-video units, you can connect two workstations with keyboards, monitors, and mice to one CPU tower. Two users can use the local connections to monitor and diagnose the CPU. This setup is ideal for a remote CPU that doesn’t need to be monitored simultaneously by two users.

    What’s included:
  • Local unit
  • Remote unit
  • Power supply
  • IEC 320 power cord
  • VGA cable
  • USB cable A-B
  • Audio cable
  • User’s manual on CD
  • Mounting plate for local or remote unit

  • This product works with:
  • Rackmount Chassis for ServSwitch Wizard Extender (ACU5000A)
  • 5-VDC Power Supply (PS649-R3)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for ServSwitch Wizard USB SRX KVM Extender, Single-Video, USB, and Audio:

    Connectors — Local Unit: (1) RJ-45; (1) USB Type B F; (2) HD15 F for VGA; (2) 3.5-mm audio jack F; (1) barrel jack for power;
    Remote Unit: (1) RJ-45; (4) USB Type A; (1) HD15 F for VGA; (1) 3.5-mm audio jack F; (1) barrel jack for power
    Power — Autosensing 100–240 VAC/5 VDC 2.5 A (PS649-R3)
    Size — 1"H x 2.9"W x 4.9"D (2.6 x 7.5 x 12.5 cm)
    Weight — 1.1 lb. (0.5 kg)

    This product works with:
  • Rackmount Chassis for ServSwitch Wizard Extender (ACU5000A)
  • 5-VDC Power Supply (PS649-R3)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
