KVM > Extenders

click photo to enlarge

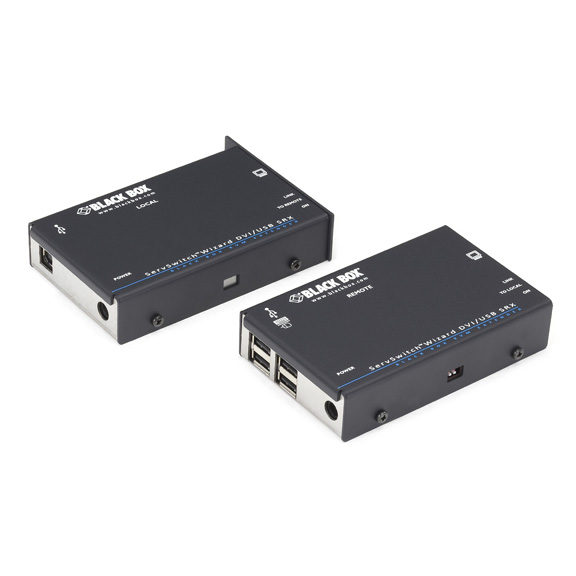

ACU5501A-R2

Photo may show similar product

Other views

ServSwitch Wizard SRX DVI-D Plus USB Extender

This second-generation extender transmits both full single-link DVI video and transparent USB over a single CATx cable.

ACU5501A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Send perfect 1080p digital video up to 165 feet (50 m) without compression or delay of video data.
  • Get resolutions up to 165 MPixels per second, the maximum rate available on single-link DVI connections.
  • Purely digital video remains crisp and clean with no loss of quality because there's no conversion.

  • Description

    ServSwitch Wizard SRX DVI-D Plus USB Extender


    Quick Facts

  • Send perfect 1080p digital video up to 165 feet (50 m) without compression or delay of video data.
  • Get resolutions up to 165 MPixels per second, the maximum rate available on single-link DVI connections.
  • Purely digital video remains crisp and clean with no loss of quality because there's no conversion.

  • Further Details

  • Extend a USB device up to 165 feet on the same CATx cable.
  • Delivers bidirectional USB signals.
  • Extended profile DDC EDID ensures optimal video with high-performance display devices.
  • Ideal for broadcasting, graphic design, medical imaging, and other applications where display performance is critical.
  • Plug-and-play setup.

  • Purely digital for pure video
    Because the extender delivers full single-link DVI digital video without compression or conversion, you get pure video displays with no loss of quality.

    When less is more
    Get more room and flexibility, and less clutter. The ServSwitch™ Wizard SRX DVI-D Plus USB Extender uses only a single CATx cable to extend keyboard, mouse, and uncompressed single-link DVI-D video up to 165 feet (50 m) at full 1920 x 1200 at 60 Hz or 3840 x 2400 at 17 Hz resolution! It's ideal where you want to reduce environment concerns, such as heat and noise, and ensure optimal temperature control.

    USB keyboard and mouse support
    The Wizard SRX DVI-D supports a variety of USB keyboards and mice as well as other Human Interface Devices (HIDs) such as touch screens.

    DDC read and store
    The Wizard SRX DVI-D reads the EDID from the attached screen via the DDC channel and stores it in the local unit’s memory to mirror the remote screen, so the graphics card can function properly.

    19" mounting
    Because of its small-form factor, you can mount up to 16 local or remote units in the separately sold Rackmount Chassis for ServSwitch Wizard Extender (ACU5000A).

    Interface-powered local unit
    The local unit of the Wizard SRX can be interface powered if your attached PC outputs do not exceed 500 mA. Otherwise, use the spare 5-VDC Power Supply (PS649-R3), (sold separately).

    What’s included:
  • Local unit
  • Remote unit
  • USB and DVI-D cables
  • Power supply
  • Power cord (IEC-320)
  • User’s manual on CD
  • Mounting plate for local or remote unit

  • Technical Specifications for ServSwitch Wizard SRX DVI-D Plus USB Extender:

    Resolution (Maximum) —640 x 480 @ 60 Hz (25 MPixels/s) through to 3840 x 2400 @ 17Hz (164 MPixels/s)
    Connectors — Local unit: (1) USB Type B F; (1) DVI-D F; (1) RJ-45 (interconnect);
    Remote unit: (4) USB Type A F; (1) DVI-I D F; (1) RJ-45 (interconnect)
    Power — Local unit: From the interface or via optional PS649-R3
    Remote unit: 90–240 VAC, 47–63 Hz, autosensing, external, with IEC 320 connector and cord
    Size — 1"H x 2.9"W x 4.9"D (2.6 x 7.5 x 12.5 cm)

    This product works with:
  • Rackmount Chassis for ServSwitch Wizard Extender (ACU5000A)
  • 5-VDC Power Supply (PS649-R3)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for ServSwitch Wizard SRX DVI-D Plus USB Extender:

    Manuals

    • ServSwitch Wizard SRX DVI-D Plus USB Extender Manual
      Manual for ServSwitch Wizard SRX DVI-D Plus USB Extender

    Software

    • ServSwitch Brand KVM Extender Software
