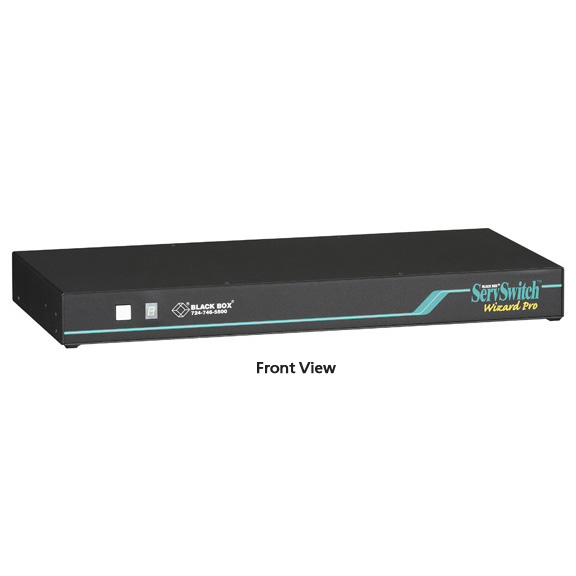

SW648A

Photo may show similar product

Other views

ServSwitch Wizard PRO, 8-Port

Professional desktop or rackmount KVM switching with on-screen menus.

SW648A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • On-screen menus, and push button, hot key, mouse, or remote switching.
  • Control eight PS/2 or USB computers with just one PS/2 keyboard, PS/2 mouse and a VGA monitor with 1600 x 1280 maximum resolution.


  • Description

    ServSwitch Wizard PRO, 8-Port


    Quick Facts

  • On-screen menus, and push button, hot key, mouse, or remote switching.
  • Control eight PS/2 or USB computers with just one PS/2 keyboard, PS/2 mouse and a VGA monitor with 1600 x 1280 maximum resolution.

  • Further Details

  • Great for users requiring access to desktop computers and laptops.
  • Space-saving design eliminates desktop clutter in small office/home office (SOHO) environments.
  • Also includes rackmount brackets.
  • Supports Microsoft® Windows® operating systems.
  • Plug-and-play—no configuration required.
  • To enable push-button switching away from the keyboard and mouse, order the optional Remote Control Module (see "Related Products" in previous window).
  • Front-panel LED makes the active port easy to identify.
  • The AutoScan function enables port scanning at 2- to 60-second intervals.
  • Supports all standard VGA resolutions from 640 x 480 to 1600 x 1280.
  • Supports standard keyboard layouts of up to 104 keys and Microsoft IntelliMouse® or compatible mice.
  • Provides robust keyboard and mouse emulation to prevent lockups.
  • Supports burst/prompt mode, making it compatible with laptops.

  • Bring a higher level of control to your KVM switching application with the ServSwitch Wizard™ PRO. Not only can you use it to switch between multiple computers, but you can use its powerful on-screen menu system to assign names to the computers and then select the channels by name.

    You can mount the ServSwitch Wizard PRO's chassis in a 19" rack with the optional Rackmount Kit (RMK19WP), or you can use it on the desktop. It's even strong enough to hold a monitor or other device, so you can save additional space in your work area.

    Multiple PROs can be cascaded to control hundreds of computers. High-resolution circuitry ensures the best possible video, even over extended distances. The switch provides 1600 x 1280 resolution at 100 MHz and supports Display Data Channel (DDC) PC-to-monitor communications, so your video cards are always "on the same page" as your monitors. You can even synchronize two or more ServSwitch Wizard PROs to support computers with multiple video outputs.

    The ServSwitch Wizard PRO also features a port for attaching an optional Remote-Control Module for convenient operation. Or you can control the PRO via an RS-232 serial link. The front panel has a push button, which is used to switch between computers and to enter a configuration mode. You can also switch via the keyboard, on-screen display, or mouse.

    Because it's interface powered, the ServSwitch Wizard PRO doesn't require a power adapter for most applications. For unusual applications such as use with a laptop computer, contact our FREE Tech Support to see if you require a power adapter.

    For applications where you want to access computers using USB, order our PS/2® to USB Flash Cable (EHN428). And with our ServSwitch USB Coax Computer cable (EHN485) or PS/2 to Sun® 8-Pin Mini DIN Flash Cable (EHN429), you can access various Sun computers.


    Technical Specifications for ServSwitch Wizard PRO, 8-Port:

    Approvals CE
    Resolution 1600 x 1280 maximum noninterlaced at 100 Hz
    Connectors (10) or (18) 6-pin mini DIN F, (5) or (9) HD15 F, (1) DB15 F options port, (1) power jack
    Power From the interface; optional 5-VDC, 300-mA power supply available
    Dimensions 1.75"H (1U) x 17.1"W x 8.1"D (4.4 x 43.4 x 20.6 cm)
    Weight 3.2 lb. (1.5 kg)

    These products work with:
  • ServSwitch Remote Control Module (KV6REM)
  • Premium Coax KVM Computer Cable (EHN408)
  • Premium Coax KVM User Cable (EHN409)
  • PS/2 Flash Cables (EHN428–EHN429)
  • 5-V Power Supply (PS649-R2)
  • ServSwitch Rackmount Kit (RMK19WP)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
