KVM > Extenders

click photo to enlarge

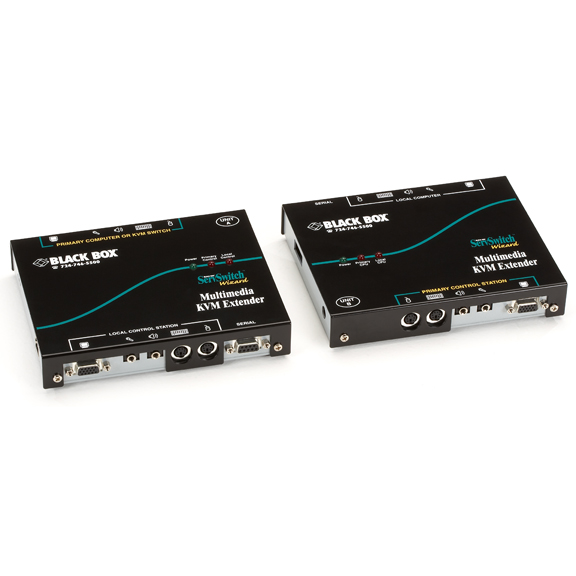

ACU1600A

Photo may show similar product

Other views

  • ACU1600A
  • ACU1600A

ServSwitch Wizard Multimedia KVM Extender

CAT5 extension and KVM switching—all in one box!

ACU1600A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • A combination KVM switch and KVM extender—all in one box!
  • Uses a single CAT5 cable.


    • Description

    ServSwitch Wizard Multimedia KVM Extender


    Quick Facts

  • A combination KVM switch and KVM extender—all in one box!
  • Uses a single CAT5 cable.

    • Further Details

  • Integrated KVM switch enables you to connect a secure CPU to the remote unit.
  • Works with PS/2®, serial, and wheel mice plus PS/2 and AT® keyboards.
  • Crystal-clear video with resolutions up to 1600 x 1280.
  • Stereo and microphone inputs for multimedia capabilities.
  • Connect workstations to the remote and local units for two points of access!
  • Supports distances up to 650 feet (198.1 m) between local and remote units.

    Make the most of your CAT5 extensions.
    If you want more versatility and control with your KVM extension and switching, the ServSwitch™ Wizard Multimedia KVM Extender can be the brains of your configuration. The extender’s local and remote units are connected by a single CAT5 cable, and they sport an audio stereo input and microphone input for hard-to-find multimedia support. They also provide RS-232 COM ports for serial capabilities, essential for use with touch screens and serial printers.

    Connect workstations to the remote and local units for two points of access to the CPU or KVM switch connected to the local unit. With the remote unit’s integral KVM switch, you can connect a CPU at the remote location, too. The user at the remote station can switch between an everyday CPU and a remote server or bank of servers.

    Don’t worry about security either. The workstation at the local unit can’t access the remote CPU. Password access brings additional security to your remote access applications.

    The extender also provides premium-quality video by using a series of amplifiers to compensate for video loss on the CAT5 cable.

    You say you want some resolution?
    With units about the size of videocassettes, the extender brings clarity to video-extension applications, supporting 1600 x 1280 SVGA resolutions up to 325 feet (99 m) and 1024 x 768 up to 650 feet (198.1 m).
    What’s included:
    • (1) local unit and (1) remote unit
    • (2) external power supplies
    • (1) 5-ft. (1.5-m) CPU cable (EHN408-0005)
    • (1) 10-ft. (3.0-m) CPU cable (EHN408-0010)
    • (4) audio cables
    • (4) hook-and-loop mounting strips


    • Technical Specifications for ServSwitch Wizard Multimedia KVM Extender:

    Resolution (Maximum) — 1600 x 1280 at 328.1 ft. (100 m); 1024 x 768 at 656.1 (200 m)
    CE Approval — Yes
    Connectors — Local unit: VGA: (2) HD15 F;
    Serial: (1) DB9 F;
    Keyboard and mouse: (4) 6-pin mini DIN F;
    Audio: (4) 3.5-mm stereo jacks;
    Link: (1) RJ-45;
    Remote unit: VGA: (2) DB15 F;
    Serial: (1) DB9 F;
    Keyboard and mouse: (4) 6-pin mini DIN F;
    Audio: (4) 3.5-mm stereo jacks;
    Link: (1) RJ-45
    Power — 100–240 VAC, 50–60 Hz, autosensing, 5 volts, external, with IEC 320 connector
    Size — 1.3"H x 6.5"W x 5.6"D (3.3 x 16.5 x 14.2 cm)
    Weight — 7.5 lb. (3.4 kg)
    This product works with:
    • CPU Cables (from KVM Switch to CPU or from KVM Switch to KVM Extender) (EHN408)
    • CAT5 100-MHz Solid-Conductor Bulk Cable, 4-Pair (EYN840A)
    • ServSwitch Wizard Extender Rackmount Kit (RMK19WX)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
