KVM > Desktop

click photo to enlarge

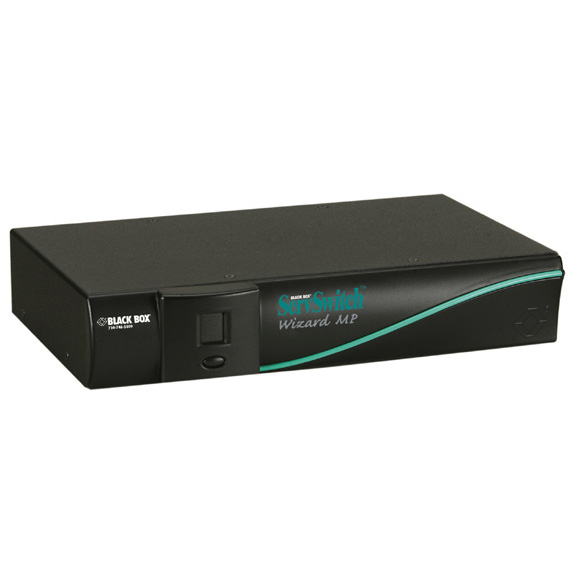

KV805A

Photo may show similar product

Other views

ServSwitch Wizard MP for PC and Sun, 4-Port with USB

Four-port professional KVM switch that supports PC and Sun computers as well as stereo audio.

KV805A


Two year Warranty

Product Highlights

  • KVM switching of up to four devices plus multiplatform support for PC and Sun!

  • Description

    ServSwitch Wizard™ MP for PC and Sun, 4-Port with USB


    Quick Facts

  • KVM switching of up to four devices plus multiplatform support for PC and Sun!

  • Further Details

  • Quality video with a maximum resolution of 1600 x 1280 at 100 Hz.
  • Built-in PS/2 and AT® compatibility.
  • Cascade multiple switches to control additional CPUs.
  • Model with USB port also available.
  • Stereo audio and microphone jacks.
  • Microsoft IntelliMouse and burst-mode/prompt-mode support.


  • The ServSwitch Wizard MP has all the features of our popular ServSwitch Wizard built into a multiplatform unit.

    The versatile switch supports KVM switching for PS/2® and Sun® machines, automatically converting the signaling between the two platforms. This means you can mix controlling equipment, such as a Sun keyboard and a PS/2 mouse—the ServSwitch Wizard MP supports both!

    The switch also has jacks for stereo audio and a microphone, making it ideal for multimedia uses.

    The ServSwitch Wizard MP works with a wide variety of software platforms, including most Windows® versions, DOS, UNIX®, Linux®, Novell® NetWare®, and OS/2®. Video channels on the switch support Display Data Channel signaling.

    To switch channels, you can use a push button, the keyboard, a three-button mouse, or Sun “hot media” keys. The switch automatically detects attached hardware, and continuous keyboard and mouse emulation on all ports prevents lockups and ensures problem-free bootups. Plus, it automatically restores keyboard and mouse states when you change channels.

    The ServSwitch Wizard MP can be used with Microsoft® IntelliMouse® and other common wheel mice. For applications that connect computers with USB keyboard and mouse ports, order the KV805A.

    As an added convenience, the Wizard MP draws its power from the connected computer CPUs. But if that’s not enough power for reliable operation, order the 5-V Power Supply (PS649) (see “Related Products”).

    With its many features—flash upgrades, high-bandwidth support, password security, and more—the ServSwitch Wizard MP works like magic!


    Technical Specifications for ServSwitch Wizard MP for PC and Sun, 4-Port with USB:

    Resolution (Maximum) — 1600 x 1280 noninterlaced @ 100 Hz
    CE Approval — Yes
    Connectors — (4) DB25 F, (2) 6-pin mini DIN F, (1) 8-pin mini DIN F, (1) HD15 F, (1) DB15 F options/flash port, (1) 3.5-mm microphone jack, (1) 3.5-mm stereo speaker jack, (1) power jack
    Power — From the interface; optional 5-VDC, 300-mA power supply (PS649-R2) available
    Size — 1.75"H (1U) x 10.3"W x 5.9"D (4.4 x 26.2 x 15 cm)
    Weight — 3.8 lb. (1.7 kg)
    This product works with:
  • ServSwitch Wizard MP KVM CPU Cables with Audio (EHN825–EHN827).
  • 5-V Power Supply (PS649-R2)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
