KVM > IP Enabled

click photo to enlarge

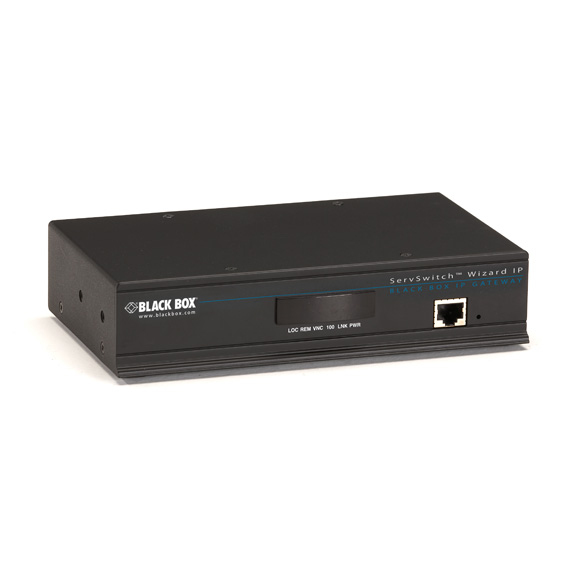

ACR2004A

Photo may show similar product

Other views

ServSwitch Wizard IP

Up to four authorized users can access your system from anywhere in the world!

ACR2004A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Access an attached ServSwitch™ and all servers connected to it via an IP network or a dialup connection.
  • Robust, enterprise-grade security with AES 128 encryption and RSA 2048 authentication.

  • Description

    ServSwitch Wizard™ IP


    Quick Facts

  • Access an attached ServSwitch™ and all servers connected to it via an IP network or a dialup connection.
  • Robust, enterprise-grade security with AES 128 encryption and RSA 2048 authentication.

  • Further Details

  • No software needed, which saves you money!
  • Easy on-screen-display-driven setup and configuration.
  • Front-panel LEDs enable you to see system status at a glance.
  • Compatible with Virtual Network Computing (VNC) and Java (Web browser) viewers.
  • Can also be connected directly to a USB-equipped Sun® or Mac® server.
  • Three computer/KVM connectors link the Wizard IP to just about any other ServSwitch product plus all IBM® compatible servers that are connected to it.
  • A control port enables a remote user to reboot the entire system after a power crash.

  • Remote control via a network connection isn’t new, but it usually presents two major drawbacks: Either special software must be used on all connected computers—which can cost you a nice chunk of change—or the host system can experience a power failure that prevents you from making a remote connection.

    Those worries are now a thing of the past! The ServSwitch Wizard IP from Black Box enables you to remotely access an attached ServSwitch and all servers connected to it from anywhere in the world via an IP network or a dialup connection.

    Full server control.
    The ServSwitch Wizard IP only requires a keyboard, video monitor, mouse (KVM) connection to your servers and doesn’t need any special software to be loaded on the controlled servers. Unlike software-only remote access solutions, the ServSwitch Wizard IP provides full control—even during computer bootup.

    To handle power failures, the ServSwitch Wizard IP has a power control port that enables a remote user to reset one or more power switches in the host system. You can reboot the host system remotely no matter how badly it has locked up!

    RJ-45 and DB9 port connections.
    Up to four simultaneous remote users can access the ServSwitch Wizard IP. Connect all four users via the unit’s RJ-45 network port, or link one out of four remote users via the ServSwitch Wizard IP’s modem/ISDN DB9 port. The RJ-45 IP port enables a direct connection to your company’s Ethernet or Fast Ethernet network. You can also use the DB9 port as a backup access route should the network fail.

    The ServSwitch Wizard IP’s three local KVM console connectors provide connections for your local control station’s keyboard, monitor, and mouse. These connectors are used to perform the initial configuration of the ServSwitch Wizard IP, and you can use them later to control all connected servers locally. It also works with other ServSwitch units.

    With the three computer/KVM connectors, you can link the ServSwitch Wizard IP to just about any other ServSwitch product and all IBM® compatible servers connected to it. The ServSwitch Wizard IP is also compatible with Sun® or Mac® servers. This level of compatibility is a plus because you can save money by not having to buy new equipment, thus extending the life of your hardware.

    Accessible via a VNC viewer.
    Each ServSwitch Wizard IP contains a genuine embedded VNC server, which you can securely access using a VNC viewer or a Web browser running Java™. No extra software seat licenses are needed, and private or shared access modes are supported from up to four viewers. A local feed-through KVM console connection and an on-screen display makes setup, configuration, and control easy.

    Innovative in-picture configuration menus simplify the viewer into a single software application, enabling easy operation and network configuration. The ServSwitch Wizard IP’s advanced video acceleration engine provides remarkable screen update performance when used over a LAN. Because the picture is transferred digitally, you can count on high color and picture fidelity at LAN speeds.

    State-of-the-art data compression techniques ensure practical remote control, even at dialup connection speeds as low as 33 kbps.
    Product includes:
  • (1) IP KVM switch
  • (1) power supply
  • (1) CD-ROM
  • (1) set of KVM cables
  • (4) self-adhesive rubber feet

  • NOTE: The ServSwitch Wizard IP is compatible with most of our ServSwitch products. For details, contact our FREE Tech Support.

    This product works with:
  • ServSwitch Wizard IP Rackmount Kits
  • PS/2 to USB Flash Cable (EHN428)
  • CAT5 Unshielded, Solid, 100-MHz Bulk Cables (EYN840A)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for ServSwitch Wizard IP:

    Hardware Compatibility — IBM® PC, PS/2®, and compatibles; Sun® USB; Mac® USB; RS/6000®; DEC™ Alpha; SGI™
    Operating Systems Supported — Windows® 3.x/95/98/Me/XP, Windows NT®, Windows 2000; DOS; Linux®; UNIX®; BSD; Sun; Macintosh®; NetWare®
    Peripherals Supported — Keyboards: PS/2 style;
    Mice: 2-button, 3-button, wheel, IntelliMouse®, IntelliMouse Explorer
    Protocol — Ethernet: TCP/IP
    Resolution (Maximum) — 1280 x 1024 at 75 Hz
    Software Compatibility — Limited security: AT&T® 3.3.3, RealVNC 3.3.4 and higher;
    Full security: RealVNC 4.0 and higher; requires Java™ enabled browser
    CE Approval — Yes
    Connectors — Connected ServSwitch: Video: (1) HD15 F;
    Keyboard: (1) 6-pin mini DIN F;
    Mouse: (1) 6-pin mini DIN F;
    Local KVM console: Video: (1) HD15 F;
    Keyboard: (1) 6-pin mini DIN F;
    Mouse: (1) 6-pin mini DIN F;
    Network: (1) 10-/100-Mbps autosensing RJ-45;
    Modem/ISDN: (1) DB9 M;
    Power Control: (1) DB9 M
    Indicators — (6) LEDs: PWR, LNK, 100, VNC, REM, LOC
    Power — 115 VAC, 60 Hz, external
    Size — 1.75"H (1U) x 7.9"W x 4.6"D (4.4 x 20 x 11.7 cm)

    NOTE: The ServSwitch Wizard IP is compatible with most of our ServSwitch products. For details, contact our FREE Tech Support.

    This product works with:
  • ServSwitch Wizard IP Rackmount Kits
  • PS/2 to USB Flash Cable (EHN428)
  • CAT5 Unshielded, Solid, 100-MHz Bulk Cables (EYN840A)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
