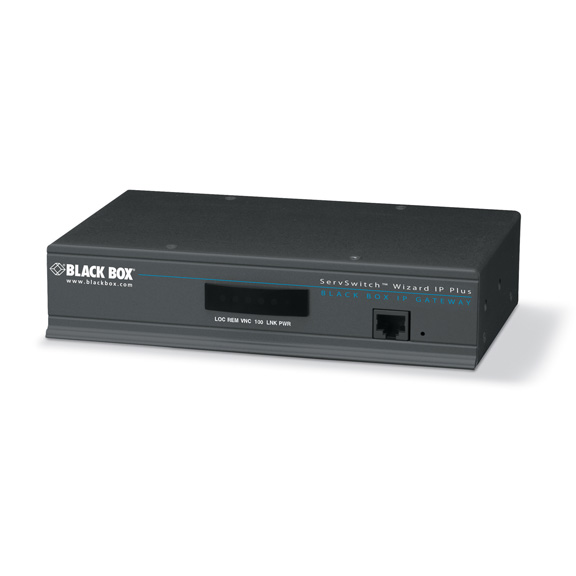

ACR2005A

Photo may show similar product

Other views

ServSwitch Wizard IP Plus

Use an IP or a dialup link to access servers at high speeds!

ACR2005A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • DVI-I, USB, and audio ports.
  • Features a 533-MHz processor.

  • Description

    ServSwitch Wizard™ IP Plus


    Quick Facts

  • DVI-I, USB, and audio ports.
  • Features a 533-MHz processor.

  • Further Details

  • Access a ServSwitch™ and all servers connected to it from anywhere in the world via an IP network or a dialup connection.
  • Features an enhanced video processing engine that delivers accelerated video update performance to your monitor.
  • Virtual media support! The Wizard IP Plus emulates a USB storage device to enable file transfer between the viewer server and the viewed server.
  • DVI-I connector autosenses digital and analog monitor connections and converts an analog input to digital.
  • Robust, enterprise-grade security with AES 128 encryption and RSA 2048 authentication.
  • No software needed, so you save money!
  • Resolutions up to 1600 x 1200 at 60 Hz.
  • Reboot the entire system remotely after a power crash.
  • True DDC support for optimal use with computer video cards.

  • The ServSwitch Wizard IP Plus offers all the features of the ServSwitch Wizard IP (ACR2004A) but has a faster (533-MHz) processor and better video performance, making it ideal for high-end server rooms. Plus, the switch has USB, DVI-I, and audio connectors for streaming data and sound to a remote virtual network collaborator (VNC).

    As with the ServSwitch Wizard IP, the ServSwitch Wizard IP Plus enables you to access an attached ServSwitch™ and all servers connected to it from anywhere in the world via an IP network or a dialup connection. However, the ServSwitch Wizard IP Plus has an optimized internal structure that provides excellent video refresh rates and clarity across the network link—and uses remarkably little network bandwidth in the process!

    In all, up to four remote users can access the ServSwitch Wizard IP Plus simultaneously. You can connect all users through the front-panel RJ-45 network port or link one of the four remote users via the back-panel DB9 modem port. (You can also use this port as a backup access route should the network fail.)

    DVI-I connector for digital displays.
    The ServSwitch Wizard IP Plus's console connectors include PS/2® and USB ports for a keyboard and mouse, an audio jack for plugging in speakers, and a DVI-I port that autosenses between digital and analog video connections. Even better, the DVI-I port converts an analog input signal into a DVI signal to give you much clearer video displays!

    Remote users get great video, too. An advanced video acceleration engine provides remarkable screen update performance when used over a LAN. And because the picture is transferred digitally, you can count on high color and picture fidelity at LAN speeds.

    Supports virtual media and audio feeds.
    You can link the ServSwitch Wizard IP Plus to IBM® compatible, Sun®, and Mac® servers and to just about any other ServSwitch product. Plus it enables virtual media support—attach the USB port to the server you're controlling, and the Wizard IP Plus will emulate a USB mass storage device. Files on the viewer server can be made to appear on the virtual media drive, enabling easy file transfer between the viewer server and the viewed server.

    There's also an audio jack for "audio-over-IP" applications, so you can feed audio signals from a host site to remote VNC viewers for presentation and training purposes.

    Secure VNC viewer or browser access.
    The ServSwitch Wizard IP Plus contains an embedded VNC server, which you can access securely using a VNC viewer or a browser running Java™. No extra software seat licenses are needed, and private or shared access modes are supported from up to four viewers.

    State-of-the-art data compression techniques work even at dialup connection speeds as low as 33 kbps. In addition, a dialup access option provides inherent first-level security. Data-stream encryption using a 128-bit key is available, and a VNC-specific architecture enables mutual authentication between local and remote users.

    The ServSwitch Wizard IP Plus has a power control port that enables a remote user to reset one or more power switches in the host system. Dual power connectors enable the ServSwitch Wizard IP Plus to draw power from its included adapter or from a secondary power adapter that can be connected to a UPS to provide redundant power capabilities. The ServSwitch Wizard IP Plus is also flash upgradable.

    Great video performance plus USB, DVI-I, and audio connectors for streaming data and sound to a remote virtual network collaborator (VNC).

    For an on-line remote demo, contact ServSwitch Central™ at 724-746-5500 or by clicking "Talk to a Tech."


    Technical Specifications for ServSwitch Wizard IP Plus:

    Hardware Compatibility IBM PC, PS/2®, and compatibles; Sun USB; Mac USB; RS/6000®; DEC™ Alpha; SGI™
    Operating Systems Supported Windows® 3.x/95/98/Me/XP, Windows NT®, Windows 2000, Windows 2003 Server, DOS, Linux®, UNIX®, BSD, Sun, Macintosh®, NetWare®
    Protocol Ethernet: TCP/IP
    Resolution (Maximum) 1600 x 1200 at 60 Hz
    Software Compatibility Limited security: AT&T® 3.3.3, RealVNC 3.3.4 and higher;
    Full security: RealVNC 4.0 and higher; requires Java enabled browser
    CE Approval Yes
    Connectors Connected ServSwitch: Video: (1) DVI-I F;
    PS/2 keyboard: (1) 6-pin mini DIN F;
    PS/2 mouse: (1) 6-pin mini DIN F;
    USB keyboard/mouse: (1) USB Type B F;
    USB virtual media support: (1) USB Type B F; Audio: (1) 3.5-mm jack;
    Local KVM console: Video: (1) DVI-I F;
    PS/2 keyboard: (1) 6-pin mini DIN F;
    PS/2 mouse: (1) 6-pin mini DIN F;
    USB keyboard/mouse: (2) USB Type A F;
    Audio: (1) 3.5-mm jack;
    Network: (1) 10-/100-Mbps autosensing RJ-45;
    Modem/ISDN: (1) DB9 M;
    Power control: (1) DB9 M;
    Power input: Included adapter: (1) barrel F;
    For optional redundant power: (1) barrel F
    Indicators (6) LEDs: PWR, LNK, 100, VNC, REM, LOC
    Power 100-240 VAC, 50-60 Hz, autosensing
    Dimensions 1.75"H (1U) x 7.9"W x 4.6"D (4.4 x 20 x 11.7 cm)

    NOTE: Windows 3.x/95/98 (non SE) and Windows NT do not support virtual media or a USB keyboard and mouse.

    NOTE: The ServSwitch Wizard IP Plus works with most of our ServSwitch products. For details, contact ServSwitch Central™.

    NOTE: To connect the ServSwitch Wizard IP Plus to a VGA monitor or to a CPU with a VGA video output, see our DVI-I to Video Adapters (FA461–FA462).

    This product works with:
  • ServSwitch Wizard IP Rackmount Kits
    Questions? Contact ServSwitch Central™ at 724-746-5500 or by clicking “Talk to a Tech.”

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for ServSwitch Wizard IP Plus:

    Manuals

    • ServSwitch%X99 Wizard IP Plus
      Installation/User (Nov-06)

    Product Data Sheets

    Application Diagrams

    Firmware

    • ServSwitch Wizard IP Plus Firmware
      Firmware for the ACR2005A (Version 2.7)
