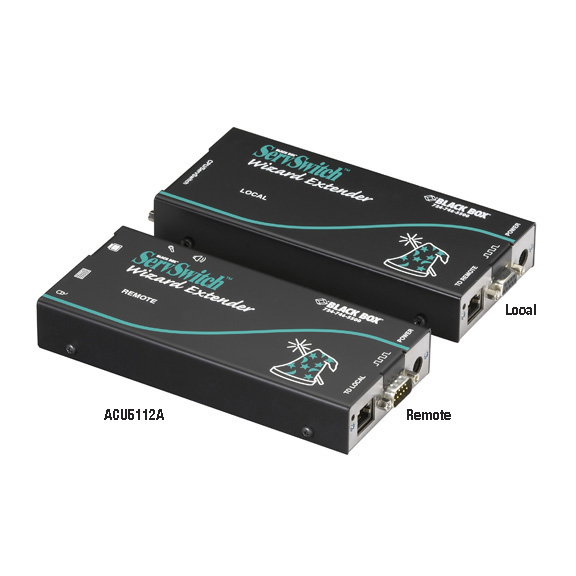

ACU5112A

Photo may show similar product

Other views

ServSwitch Wizard Extender Single-Access Serial Kit with Bidirectional Stereo Audio and Skew Compensation

Extend KVM, serial, and audio signals up to 984.2 feet over CATx cable.

ACU5112A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Maximum resolution of 1600 x 1200 up to 656.1 feet (200 m).
  • At a maximum distance of 984.2 feet (300 m), you get resolution up to 1280 x 1024.

  • Description

    ServSwitch Wizard Extender Single-Access Serial Kit with Bidirectional Stereo Audio and Skew Compensation


    Quick Facts

  • Maximum resolution of 1600 x 1200 up to 656.1 feet (200 m).
  • At a maximum distance of 984.2 feet (300 m), you get resolution up to 1280 x 1024.

  • Further Details

  • Use the serial link to connect to graphic tablets, touch screens, or PDA cradles.
  • Rackmountable.
  • Offers local serial and stereo audio connections.
  • Includes local and remote modules and offers transparent 56-kbps RS-232 serial transmission.
  • Provides more bandwidth and longer distances for your KVM extension applications.
  • Built-in skew compensation (adjustable up to 62 ns) reduces color drift and keeps images sharp.
  • True DDC support for optimal operation with modern graphic adapter cards.
  • High-end KVM extension for PS/2® computers! Just use one PS/2 keyboard, PS/2 mouse, and VGA monitor.


  • KVM and serial extension with single access and bidirectional stereo audio.
    If you need to transmit bidirectional stereo audio signals—in addition to serial and KVM signals—order the ServSwitch Wizard™ Extender Single-Access Serial Kit with Bidirectional Stereo Audio and Skew Compensation (ACU5112A).

    The kit extends PS/2® keyboard and mouse signals—along with transparent serial signals and the analog VGA signal—over a single CAT5, CAT5e, or CAT6 cable up to 984.2 feet (300 m). Use the serial link to connect to graphic tablets, touch screens, or PDA cradles. For applications that require a serial mouse attached to a CPU, simply add a passive adapter (contact our FREE Tech Support).

    The audio connections enable you to use speakers, headsets, and microphones at your workstation. The kit comes with a transmitter module for local CPU connections and a receiver module for remote workstation (KVM) connections, as well as an adapter cable to connect the local module to the keyboard, video, and mouse connectors at your CPU.

    The ServSwitch Wizard Extender Kits with Skew Compensation family.
    All ServSwitch Wizard Extender Kits with Skew Compensation fix color drift by making up for the differences in length between wire pairs in CAT5e or CAT6 cable, and compensation is provided by a 62-ns color delay that can be adjusted in 2-ns calibrations to correct delay skew problems. What's more, these extenders also come with the latest video components and circuitry to enable higher bandwidth and ensure even clearer images. In fact, it's now possible to get maximum resolutions of 1600 x 1200 at 60 Hz at distances of 656.1 feet (200 m) or 1280 x 1024 at 60 Hz at the full distance of 984.2 feet (300 m)! These extenders also provide additional brightness and sharpness control options for ultra-clear images.

    Today's graphic adapter cards often require Display Data Channel (DDC) information for them to work correctly—or, in some cases, to work at all. These kits transmit an attached monitor's DDC information to its remote module. Plus this information is stored in the local module in case of a link loss.

    These extenders also feature password protection to prevent unauthorized access to a connected CPU or your switching system.


    Technical Specifications for ServSwitch Wizard Extender Single-Access Serial Kit with Bidirectional Stereo Audio and Skew Compensation:

    Connectors Local module: Interconnect: (1) RJ-45; CPU: (1) DB25 F; Serial: (1) DB9 F; Power: (1) 8-pin mini DIN F;
    Remote module: Interconnect: (1) RJ-45; Keyboard and mouse: (2) 6-pin mini DIN F; Video: (1) HD15 F; Serial: (1) DB9 F; Audio: (2) 3.5-mm jacks; Power: (1) barrel jack

    NOTE: If you're using the 16-slot Rackmount Chassis (ACU5000A) with this kit, note that the local and remote units require one slot each.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch Wizard Extender Single-Access Serial Kit with Bidirectional Stereo Audio and Skew Compensation:

    Manuals

    • ServSwitch Wizard Extenders
      Installation and User Guide for the ACU5110A, ACU5112A, and ACU5010A-R2 (Oct-05)

    Product Data Sheets

    Software

    • ServSwitch Brand KVM Extender Software


    Connect your ServSwitch Wizard Extender Single-Access Serial Kit with Bidirectional Stereo Audio and Skew Compensation with:

    Accessory: PS5000-R2

    Rackmountable Power Distribution Module, For up to (4) Extenders

    Rackmountable Power Distribution Module for up to (4) Rackmounted Receiver Modules

    Accessory: PS649-R3

    ServSwitch 5-VServSwitch 5-V Power Supply

    ServSwitch 5-VServSwitch™ 5-V Power Supply

    Accessory: RMK19WP

    ServSwitch Wizard PRO Rackmount Kit, For 19" Rack

    ServSwitch Wizard PRO Rackmount Kit, For 19" Rack
