KVM > Extenders

click photo to enlarge

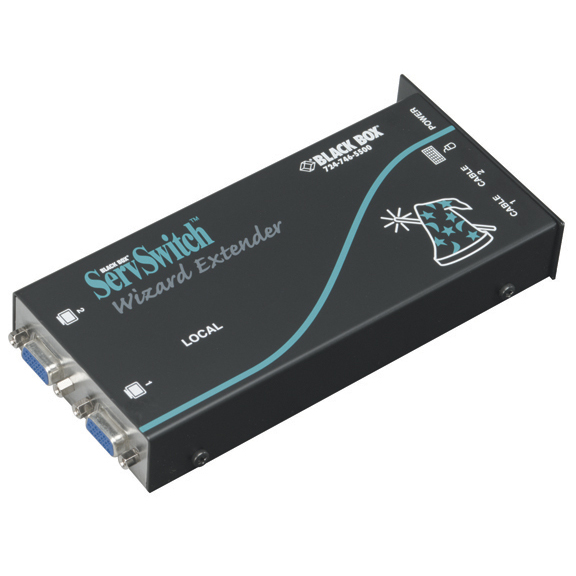

ACU5013A

Photo may show similar product

Other views

ServSwitch Wizard Extender Dual-Video Transmitter

Connect a CPU with two video outputs to a workstation with two video monitors.

ACU5013A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Resolution up to 1600 x 1280.
  • Place computers or ServSwitch™ KVM switches up to 656.1 feet away from your workstation.
  • Flash upgradable.

  • Description

    ServSwitch Wizard Extender Dual-Video Transmitter


    Quick Facts

  • Resolution up to 1600 x 1280.
  • Place computers or ServSwitch™ KVM switches up to 656.1 feet away from your workstation.
  • Flash upgradable.

  • Further Details

  • Supports Alpha, SGI, and RS/6000 computers.
  • Supports IntelliMouse®, IntelliMouse Explorer, and other common wheel mice.
  • Part of your solution for graphics-intensive extension applications.
  • Needs to be paired with two ServSwitch Wizard Extender Receivers (ACU5011A), one for each monitor.

    The ServSwitch Wizard Extender Kit Dual-Video Transmitter can be used to connect a computer with two video outputs to a KVM console with two video monitors. It can also be used to connect a computer to two separate KVM consoles.

    You can also use the Dual-Video Transmitter to connect a PC to two entirely separate workstations, each with a keyboard, mouse, and single-video monitor. Control of the system is arbitrated on a first-come, first-served basis.

    The ServSwitch Wizard Dual-Video Transmitter makes it easy for you to place your computer or ServSwitch™ KVM switch up to 656.1 feet (200 m) from your workstation.

    This KVM transmitter works with CAT5, CAT5e, or CAT6 cable. Plus, you can use it with all IBM® PCs and compatibles. It supports Alpha, SGI™, and RS/6000® computers, plus Microsoft® IntelliMouse;, IntelliMouse Explorer, and other common wheel mice. Connections for PS/2® keyboards and mice are built in.



  • Technical Specifications for ServSwitch Wizard Extender Dual-Video Transmitter:

    Distance (Maximum) — 656.1 ft. (200 m)
    Connectors — Interconnect: (2) RJ-45; Video: (2) HD15; Keyboard and mouse: (2) 6-pin mini DIN F; Power: (1) 8-pin mini DIN F
    Indicators — Local and remote modules: (1) LED for power status and data activity
    Size — 1"H x 3"W x 4.7"D (2.5 x 7.6 x 11.9 cm)
    Weight — 1 lb. (0.5 kg)
    These products work with:
    • GigaBase® 350 CAT5e, 350-MHz Bulk Cable (EYN850A-1100, EYN851A-1100, etc.)
    • CAT5e Solid-Conductor Backbone Cable (EYN795MS)
    • ServSwitch Duo™ (KV6104SA-R2, etc.)
    • ServSwitch Quadro™ (KV6116FA-R2)
    • 5-Pin DIN Female to 6-Pin Mini DIN Male Keyboard Adapter with 6-Inch Cable (FA221)
    • ServSwitch Wizard Skew Compensator (ACU5100A)
    Questions? Contact ServSwitch Central™ at 724-746-5500 or by clicking “Talk to an Expert”.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch Wizard Extender Dual-Video Transmitter:


    Connect your ServSwitch Wizard Extender Dual-Video Transmitter with:

    Accessory: ACU5010A

    ServSwitch Wizard Extender Kit (Transmitter/Receiver)

    ServSwitch Wizard Extender Kit (Transmitter/Receiver)

    Accessory: ACU5004

    Blanking Plate for Rackmount Chassis, Four-Slot

    Blanking Plate for Rackmount Chassis, Four-Slot

    Accessory: ACU5003

    Blanking Plate for Rackmount Chassis, Single Slot

    Blanking Plate for Rackmount Chassis, Single Slot
