KVM > Extenders

click photo to enlarge

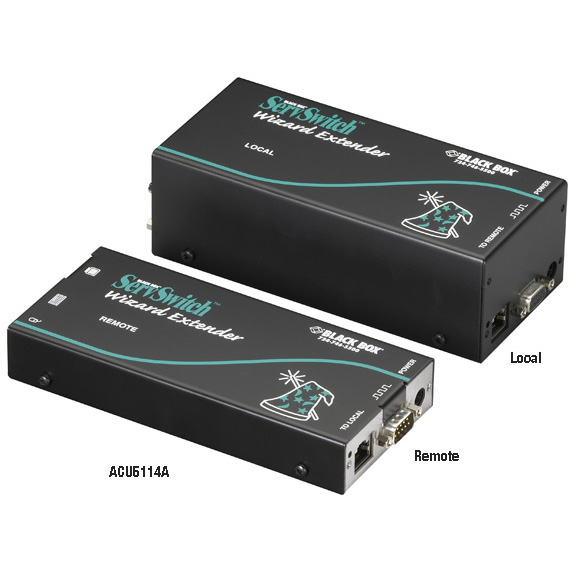

ACU5114A

Photo may show similar product

Other views

ServSwitch Wizard Extender Dual-Access Serial Kit with Skew Compensation

Access a PS/2 computer locally or remotely, connect a VGA monitor locally and remotely, and transmit KVM and serial signals up to 984.2 feet over CATx cable.

ACU5114A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Provides resolution up to 1600 x 1200 at 656.1 feet (200 m).
  • Provides resolution up to 1280 x 1024 at 984.2 feet (300 m).
  • Provides more bandwidth and longer distances for your KVM extension applications.

  • Description

    ServSwitch Wizard Extender Dual-Access Serial Kit with Skew Compensation


    Quick Facts

  • Provides resolution up to 1600 x 1200 at 656.1 feet (200 m).
  • Provides resolution up to 1280 x 1024 at 984.2 feet (300 m).
  • Provides more bandwidth and longer distances for your KVM extension applications.

  • Further Details

  • Rackmount local (transmitter) and remote (receiver) modules in our ACU5000A chassis for Wizard Extenders.
  • Compatible with PS/2 keyboards and mice.
  • Offers transparent 56-kbps RS-232 serial transmission.
  • Serial functionality is great for connecting to graphic tablets, touch screens, or PDA cradles.
  • True DDC support for optimal operation with modern graphic adapter cards.
  • Built-in skew compensation (adjustable up to 62 ns) reduces color drift and keeps images sharp.
  • Provides additional brightness and sharpness control options.

  • KVM and serial extension with dual access.
    The ServSwitch Wizard™ Extender Dual-Access Serial Kit with Skew Compensation comes with a transmitter module for local CPU connections and a receiver module for remote workstation (KVM) connections, as well as an adapter cable to connect the local module to the keyboard, video, and mouse connectors on your CPU.

    The kit extends PS/2® keyboard and mouse signals—along with transparent serial signals and the analog VGA signal—over a single CAT5, CAT5e, or CAT6 cable up to 984.2 feet (300 m). Use the serial link to connect to graphic tablets, touch screens, or PDA cradles. For applications that require a serial mouse attached to a CPU, simply add a passive adapter (contact our FREE Tech Support).

    The benefits of skew compensation.
    Skew compensation fixes color drift by making up for the differences in length between wire pairs in CAT5e or CAT6 cable, and compensation is provided by a 62-ns color delay that can be adjusted in 2-ns calibrations to correct delay skew problems. What’s more, this extender also comes with the latest video components and circuitry to enable higher bandwidth and ensure even clearer images. In fact, it’s now possible to get maximum resolutions of 1600 x 1200 at 60 Hz at distances of 656.1 feet (200 m) or 1280 x 1024 at 60 Hz at the full distance of 984.2 feet (300 m)! This extender also provides additional brightness and sharpness control options for ultra-clear images.

    Today’s graphic adapter cards often require Display Data Channel (DDC) information for them to work correctly—or, in some cases, to work at all. This kit transmits an attached monitor’s DDC information to its remote module. Plus this information is stored in the local module in the event of a link loss.

    This extender also features password protection to prevent unauthorized access to a connected CPU or your switching system.


    Technical Specifications for ServSwitch Wizard Extender Dual-Access Serial Kit with Skew Compensation:

    Connectors — Local module: Interconnect: (1) RJ-45; CPU: (1) DB25 F; Keyboard and mouse: (2) 6-pin mini DIN F; Video: (1) HD15 F; Serial: (1) DB9 F; Power: (1) 8-pin mini DIN F;
    Remote module: Interconnect: (1) RJ-45; Keyboard and mouse: (2) 6-pin mini DIN F; Video: (1) HD15 F; Serial: (1) DB9 F; Power: (1) barrel jack
    NOTE: If you're using the 16-slot Rackmount Chassis (ACU5000A) with this kit, note that the local and remote units require one slot each.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch Wizard Extender Dual-Access Serial Kit with Skew Compensation:

    Manuals

    • ServSwitch Wizard Extenders
      Installation and User Guide (7/5/2012)
    • ServSwitch Wizard Extenders
      Installation and User Guide (11/6/2012)

    Product Data Sheets

    Software

    • ServSwitch Brand KVM Extender Software


    Connect your ServSwitch Wizard Extender Dual-Access Serial Kit with Skew Compensation with:

    Accessory: PS649-R3

    ServSwitch 5-VServSwitch™ 5-V Power Supply

    ServSwitch 5-VServSwitch™ 5-V Power Supply

    Accessory: PS5000-R2

    Rackmountable Power Distribution Module, For up to (4) Extenders

    Rackmountable Power Distribution Module for up to (4) Rackmounted Receiver Modules

    Accessory: RMK19WP

    ServSwitch Wizard PRO Rackmount Kit, For 19" Rack

    ServSwitch Wizard PRO Rackmount Kit, For 19" Rack
