KVM > Extenders

click photo to enlarge

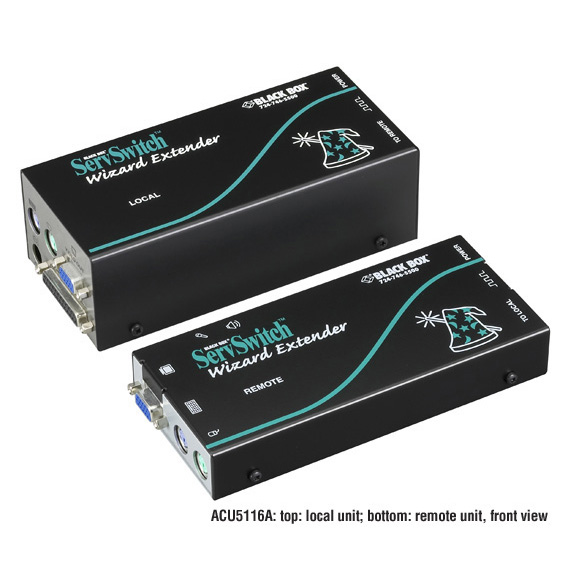

ACU5116A

Photo may show similar product

Other views

ServSwitch Wizard Extender Dual-Access Serial Kit with Bidirectional Stereo Audio and Skew Compensation

Access a PS/2 computer locally or remotely, connect a VGA monitor locally and remotely, and transmit KVM, serial, and audio signals up to 656.1 feet over CATx cable.

ACU5116A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Provides resolution up to 1600 x 1200 at 656.1 feet (200 m).
  • Use the serial link to connect to graphics tablets, touch screens, or PDA cradles.
  • Rackmountable.
  • Includes local and remote modules.

  • Description

    ServSwitch Wizard Extender Dual-Access Serial Kit with Bidirectional Stereo Audio and Skew Compensation


    Quick Facts

  • Provides resolution up to 1600 x 1200 at 656.1 feet (200 m).
  • Use the serial link to connect to graphics tablets, touch screens, or PDA cradles.
  • Rackmountable.
  • Includes local and remote modules.

  • Further Details

  • Offers local serial and stereo audio connections.
  • Provides transparent 56-kbps RS-232 serial transmission on the local end.
  • Built-in skew compensation (adjustable up to 62 ns) reduces color drift and keeps images sharp.
  • Includes additional brightness and sharpness control options.
  • True DDC support for optimal operation with modern graphics adapter cards.

  • KVM and serial extension with dual access and bidirectional stereo audio.
    If you need to transmit bidirectional stereo audio signals—in addition to serial and KVM signals—order the ServSwitch Wizard™ Extender Dual-Access Serial Kit with Bidirectional Stereo Audio and Skew Compensation (ACU5116A).

    The kit extends PS/2® keyboard and mouse signals—along with transparent serial signals, stereo audio, and the analog VGA signal—over a single CAT5, CAT5e, or CAT6 cable up to 656.1 feet (200 m). Use the serial link to connect to graphic tablets, touch screens, or PDA cradles. For applications that require a serial mouse attached to a CPU, simply add a passive adapter (contact our FREE Tech Support). The audio connections enable you to use speakers, headsets, and microphones at your remote console.

    The ACU5116A comes with a transmitter module for local CPU connections and a receiver module for remote console (KVM) connections, as well as an adapter cable to connect the local module to the keyboard, video, and mouse connectors at your CPU.

    Top-notch video and more.
    All ServSwitch Wizard Extender Kits with Skew Compensation fix color drift by making up for the differences in length between wire pairs in CAT5e or CAT6 cable, and compensation is provided by a 62-ns color delay that can be adjusted in 2-ns calibrations to correct delay skew problems. What’s more, this extender kit also comes with the latest video components and circuitry to enable higher bandwidth and ensure even clearer images. In fact, it delivers a maximum resolution of 1600 x 1200 at 60 Hz at distances up to 656.1 feet (200 m! The ACU5116A extender kit also provides additional brightness and sharpness control options for ultra-clear images.

    Today’s graphics adapter cards often require Display Data Channel (DDC) information for them to work correctly—or, in some cases, to work at all. This extender kit transmits an attached monitor’s DDC information to its remote module. Plus this information is stored in the local module in case of a link loss.

    The ACU5116A extender kit also features password protection to prevent unauthorized access to the connected CPU or your switching system.


    Technical Specifications for ServSwitch Wizard Extender Dual-Access Serial Kit with Bidirectional Stereo Audio and Skew Compensation:

    Distance (Maximum) — 656.1 ft. (200 m)
    Resolution (Maximum) — 1600 x 1200
    CE Approval — Yes
    Connectors — Local module: Interconnect: (1) RJ-45; CPU: (1) DB25 F; Keyboard and mouse: (2) 6-pin mini DIN F; Video: (1) HD15 F; Serial: (1) DB9 F; Audio: (1) 3.5-mm jack; Optional power: (1) 8-pin mini DIN F;
    Remote module: Interconnect: (1) RJ-45; Keyboard and mouse: (2) 6-pin mini DIN F; Video: (1) HD15 F; Serial: (1) DB9 F; Audio: (2) 3.5-mm jacks; Power: (1) barrel jack

    NOTE: Local module doesn’t require a power supply.

    NOTE: If you’re using the 16-slot Rackmount Chassis (ACU5000A) with this kit, the local and remote units require one slot each.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch Wizard Extender Dual-Access Serial Kit with Bidirectional Stereo Audio and Skew Compensation:

    Manuals

    • ServSwitch Wizard Extenders
      Installation and User Guide (11/6/2012)

    Product Data Sheets

    Application Diagrams


    Connect your ServSwitch Wizard Extender Dual-Access Serial Kit with Bidirectional Stereo Audio and Skew Compensation with:

    Accessory: PS5000-R2

    Rackmountable Power Distribution Module, For up to (4) Extenders

    Rackmountable Power Distribution Module for up to (4) Rackmounted Receiver Modules

    Accessory: RMK19WP

    ServSwitch Wizard PRO Rackmount Kit, For 19" Rack

    ServSwitch Wizard PRO Rackmount Kit, For 19" Rack
