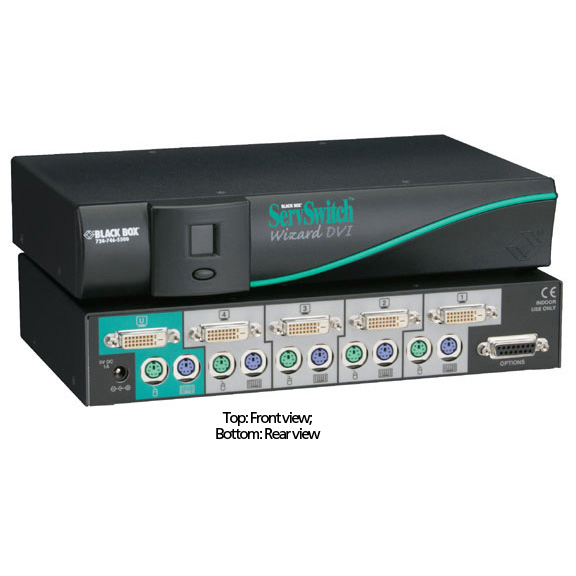

ServSwitch Wizard DVI KVM Switch, Single-Head, 4-Port

Four-port professional DVI KVM switch.

KV1004A-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Control two or four PS/2 computers with just one PS/2 keyboard, PS/2 mouse, and DVI monitor.


  • Description

    ServSwitch Wizard DVI, Single-Head, 4-Port


    Quick Facts

  • Control two or four PS/2 computers with just one PS/2 keyboard, PS/2 mouse, and DVI monitor.

  • Further Details

  • Support for dual and quad monitors.
  • Great for desktop users requiring access to multiple computers.
  • Plug-and-play—no configuration.
  • Push button, hotkey, mouse, or remote contact switching.
  • Maximum resolution of 1600 x 1200.
  • Supports all standard VESA resolutions from 640 x 480 to 1600 x 1200.
  • Provides robust keyboard and mouse emulation to prevent lockups.
  • Supports standard keyboard layouts with up to 104 keys and Microsoft IntelliMouse® or compatible mice.
  • The AutoScan function allows port scanning at 2-, 5-, 7-, 10-, 15-, 20-, 30-, or 60-second intervals. This makes computer monitoring easy and hands-free.
  • Front-panel LED makes the active port easy to identify.
  • Easy port selection by front-panel buttons, hotkeys, three-button mouse, or a remote push button.
  • Supports Microsoft® Windows® operating systems.
  • Space-saving design eliminates desktop clutter in professional environments.


  • Today's high-end video cards and high-end monitors—particularly the flat-panel displays—often support crystal-clear, high-resolution Digital Visual Interface (DVI) video. But DVI monitors, even the lightest flat-panel ones, are still bulky and expensive. Wouldn't it be nice if you could use one DVI monitor for all your DVI computers?

    Our ServSwitch Wizard™ DVI is the KVM switch that can make it happen. It connects as many as four computer CPUs, with as many as four DVI video heads each, to one or more DVI monitors and a PS/2® compatible keyboard and mouse. You can manage a full set of computers with DVI outputs from a single user station!

    Models for almost any application.
    If all your CPUs output a single head (feed) of DVI video, you can use the Single-Head version of the ServSwitch Wizard DVI. You can manage two CPUs with the 2-port model (KV1002A-R2) or up to four with the 4-port model (KV1004A-R2).

    If some of your CPUs output two DVI heads, use a Dual-Head model (KV1022A-R2, KV1024A-R2). Or if some of your CPUs output three or more DVI heads, then use the Quad-Head version (KV1042A-R2, KV1044A-R2).

    Resolution, resolution, resolution.
    Do you need to display heavy-duty video? No problem. The ServSwitch Wizard DVI supports 1600 x 1200 at up to 60 Hz. It can display lower resolutions at even higher refresh rates. Its maximum pixel clock of 165 MHz per port is the highest single-link bandwidth the DVI specification supports!

    If your video cards and monitor(s) support "compositing" images by outputting separate parts of them on separate video heads and recombining them at the monitor, the Dual- and Quad-Head models work even better than the Single-Head model. The Dual-Head models can pass through composite resolutions as high as 2400 x 1600, and the Quad-Head models can pass through resolutions up to 3200 x 2400.

    Expands to handle large or diverse systems.
    Have a lot of computers to manage or do you expect to soon? To switch between more than four DVI CPUs, you can cascade ServSwitch Wizard DVI chassis. Each cascaded 4-port ServSwitch Wizard DVI adds capacity for another four CPUs, but it uses one CPU port on your higher-level ServSwitch Wizard DVI.

    Some DVI video cards support simultaneous outputs from more than four video heads. You can switch as many as eight heads using a pair of Quad-Head ServSwitch Wizard DVIs. Just synchronize the two switches by running cable between their serial ports. Then attach four heads to one chassis and the remaining heads to the other chassis. The ServSwitch Wizard DVI with the attached keyboard and mouse will serially echo your switching commands to the other chassis, causing all the heads to be switched at the same time!

    A synchronized ServSwitch Wizard DVI system can even support both CPUs with DVI output and CPUs with analog VGA-type output. Because the Wizard DVI is just one of several of our KVM switches that use our proven ServSwitch Wizard technology, it's compatible with several analog ServSwitch Wizard models, including the regular ServSwitch Wizard and the ServSwitch Wizard PRO. So if you synchronize a ServSwitch Wizard DVI with a compatible analog ServSwitch Wizard, you can attach your DVI CPUs to one set of ports on the ServSwitch Wizard DVI (say, Ports 1 and 2) and your analog CPUs to different ports on the other ServSwitch Wizard (say, Ports 3 and 4), then switch between the CPUs as if they were all attached to the same KVM switch!

    Familiar, powerful ServSwitch Wizard features.
    The ServSwitch Wizard DVI supports many of the same sophisticated features you've come to expect from our ServSwitch Wizard switches:
  • Autoscanning all or active ports.
  • Switching using the front-panel push button, hotkeys, a three-button mouse or IntelliMouse, the optional Remote-Control Module (KV6REM, etc.), or an automated system attached to the serial options port.
  • Flash-upgradable firmware.
  • Password-based security.
  • And much more!

    DDC support means better compatibility.
    The ServSwitch Wizard DVI supports DDC2B Display Data Channel signaling. This enables your monitor to communicate with your CPUs’ video cards and configure the CPUs' video drivers automatically at bootup. Do your monitor and video cards support DVI Hot Plug Detect? The ServSwitch Wizard DVI supports it, too—hot-swap equipment without fear!

    Multiplatform, multi-OS support.
    The ServSwitch Wizard DVI isn’t just for a narrow range of PCs running Microsoft Windows. It’s compatible with all popular PC operating systems. You can also attach IBM® RS/600®, Compaq® Alpha®, or SGI™ computers that output DVI video, as long as they have PS/2 style keyboards and mice and a compatible keyboard layout.

  • Technical Specifications for ServSwitch Wizard DVI KVM Switch, Single-Head, 4-Port:

    Compliance CE Class A; FCC Part 15, Subpart B Class A, IC Class/classe A
    Distance 2 m (6.5 ft.) maximum if interface powered or 5 m (16.4 ft.) maximum if AC powered to any attached keyboard, monitor, and mouse;
    5 m (16.4 ft.) maximum to any attached CPU or cascaded KVM switch;
    50 ft. (15.2 m) maximum from serial port to any attached serial device
    Enclosure Steel, aluminum, and plastic
    MTBF 500,000 hours (based on the historical reliability of similarly designed and manufactured products)
    Operating Environment Temperature: 32 to 104° F (0 to 40° C);
    Humidity: 5 to 60% noncondensing;
    Altitude: 10,000 ft. (3048 m) maximum
    Resolution and Refresh Rate 1600 x 1200 at 60 Hz (higher refresh rates possible at lower resolutions) maximum; with compositing multihead video cards and monitors, Dual-Head models support 2400 x 1600 maximum and Quad-Head models support 3200 x 2400 maximum
    Serial Characteristics Protocol: Async only;
    Data format: 8 data bits, no parity, 1 stop bit (fixed);
    Data rate: 1200 bps (fixed);
    Flow control: None
    User Controls Keyboard commands; Mouse-click functions; (1) push button for channel change and configuration mode; (1) 8-position multifunction DIP switch; optional Remote-Control Module (KV6REM) for channel change; Optional serial commands for channel change and multichassis synchronization
    Video Standard Supports DDC2B signaling
    Interface Video: Single-link DVI (Digital Visual Interface);
    Keyboard and mouse: IBM PS/2 compatible;
    Serial: TIA/EIA RS-232 proprietarily pinned on DB15
    Connectors (1) Multipurpose serial DB15 F; (1) Barrel jack for power;
    User port: (2) 6-pin mini DIN F to keyboard and mouse;
    Molex® DVI-D F to monitor: KV1002A-R2, KV1004A-R2: (1);
    KV1022A-R2, KV1024A-R2: (2);
    KV1042A-R2, KV1044A-R2: (4) CPU ports ([2] on KV10x2A models, [4] on KV10x4A models), each consisting of: (2) 6-pin mini DIN F to CPU’s keyboard and mouse ports;
    Molex DVI-D F to CPU’s video ports: KV1002A-R2, KV1004A-R2: (1);
    KV1022A-R2, KV1024A-R2: (2);
    KV1042A-R2, KV1044A-R2: (4)
    Indicators (1) 7-segment status display
    Power KV1002A-R2, KV1004A-R2: Either: 5 VDC at up to 1 A from the keyboard interfaces of the attached computers; or from optional power supply (PS649): Input: 100 to 240 VAC at 50 to 60 Hz; Output: 5 VDC at up to 1 A; Consumption: 5 watts maximum;
    All other models: From the included external power supply: Input: 100 to 240 VAC at 50 to 60 Hz; Output: 5 VDC at up to 4 A; Consumption: 20 watts maximum
    Size 1.75"H (1U) x 10.3"W x 5.9"D (4.4 x 26.2 x 15 cm)
    Weight 2.2 lb. (1 kg)

    These products work with:
  • Single-Video ServSwitch DVI KVM Cables (EHN450)
  • Dual-Video ServSwitch DVI KVM Cables (EHN460)
  • Quad-Video ServSwitch DVI KVM Cables (EHN470)
  • ServSwitch Remote-Control Module (KV6REM, KV6REM-25, KV6REM-50, and KV6REM-75)
  • 5-V Power Supply (for Single-Head Models) (PS649-R2)
  • Replacement Power Supply (for Dual-Head and Quad-Head models only) (PS650)
