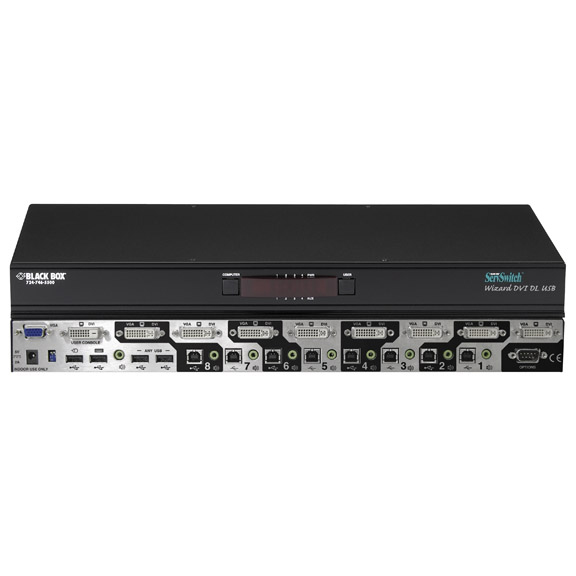

KV2008A

Photo may show similar product

Other views

ServSwitch Wizard DVI Dual Link (USB), 8-Port

Share high-end video and any four USB peripherals between up to eight workstations.

KV2008A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Supports resolutions up to 2560 x 1600 at 60 Hz.
  • True DDC EDID support.
  • Enables you to switch up to eight PCs via hotkey, mouse, or RS-232/V.24.

  • Description

    ServSwitch Wizard DVI Dual Link (USB), 8-Port


    Quick Facts

  • Supports resolutions up to 2560 x 1600 at 60 Hz.
  • True DDC EDID support.
  • Enables you to switch up to eight PCs via hotkey, mouse, or RS-232/V.24.

  • Further Details

  • Supports dual-link DVI-D, single-link DVI-D, and VGA.
  • Can be switched synchronously with other ServSwitch Wizard™ switches via the options port.
  • Stereo audio switches independently from the video signal.

  • True USB Emulation
    The ServSwitch Wizard DVI Dual-Link, USB, KVM switch features True USB Emulation, which ensures that the full characteristics of the connected USB peripherals—including keyboards and mice—are passed to every system concurrently. Specialized features are quickly recognized on the attached devices. What's more, each computer retains this information , even if the device is plugged into another computer. Because of this technology, the switch avoids many of the limitations found in traditional emulations, enabling instantaneous switching and hotkey support.

    Intelligent options port
    Flash upgrade the ServSwitch Wizard DVI Dual-Link, USB, via its intelligent options port. You can also switch it via simple RS-232 protocol or even dry contacts. When linked with another ServSwitch Wizard, the options port can be used for synchronous switching of multiple video heads.

    USB 2.0 transparency
    A clever architecture combines transparent USB 2.0 protocol with emulated keyboard and mouse control. To support this, there are two dedicated keyboard/mouse ports on the switch's console port plus two USB 2.0 transparent ports for any USB 2.0 peripherals.


    What's included:
  • ServSwitch Wizard DVI Dual-Link, USB, 8-Port
  • Power supply
  • IEC 320 power cord
  • (2) 19" rackmounting brackets
  • Safety guide/LI>
    NOTE: The ServSwitch Wizard DVI Dual-Link, USB, does not convert video formats.

  • Technical Specifications for ServSwitch Wizard DVI Dual Link (USB), 8-Port :

    Video DVI-dual link: 2560 x 1600 at 60 Hz;
    DVI-single link: 1920 x 1200 at 60 Hz;
    VGA: 1920 x 1200 at 60 Hz
    Connectors (9) DVI-I F, (1) VGA HD15 F, (4) USB Type A F, (8) USB Type B F, (1) DB9 M options port, (1) barrel power jack, (8) 3.5-mm audio jacks
    Indicators Multisegment display control; (1) front-panel push button
    Power External: 100-240 VAC/5 VDC 6A
    Dimensions 1.7"H x 16.9"W x 8.4"D (4.4 x 43 x 21.5 cm)
    Weight 4.4 lb. (2 kg)

    NOTE: The ServSwitch Wizard DVI Dual-Link, USB, does not convert video formats.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch Wizard DVI Dual Link (USB), 8-Port :

    Manuals

    • ServSwitch Wizard DVI DL
      Installation and User Guide (Feb-09)

    Product Data Sheets

    Application Diagrams

    Firmware

    • ServSwitch Wizard DVI Dual-Link (USB, 8-Port) Firmware
      Firmware for the KV2008A (Version 1.09)


    Connect your ServSwitch Wizard DVI Dual Link (USB), 8-Port with:

    Accessory: EHN900024U-0006

    ServSwitch DVI Cable, 6-ft. (1.8-m)

    ServSwitch DVI Cable, 6-ft. (1.8-m)

    Accessory: EJ110-0002

    3.5-mm Stereo Audio Cable, 24 AWG, Male/Male, 2-ft. (0.6-m)

    3.5-mm Stereo Audio Cable, 24 AWG, Male/Male, 2-ft. (0.6-m)

    Accessory: PS650

    ServSwitch Wizard DVI KVM Switch Replacement Power Supply (Dual-Head and Quad-Head only)

    ServSwitch Wizard DVI KVM Switch Replacement Power Supply (Dual-Head and Quad-Head only)
