KVM > Server Room/Enterprise KVM

click photo to enlarge

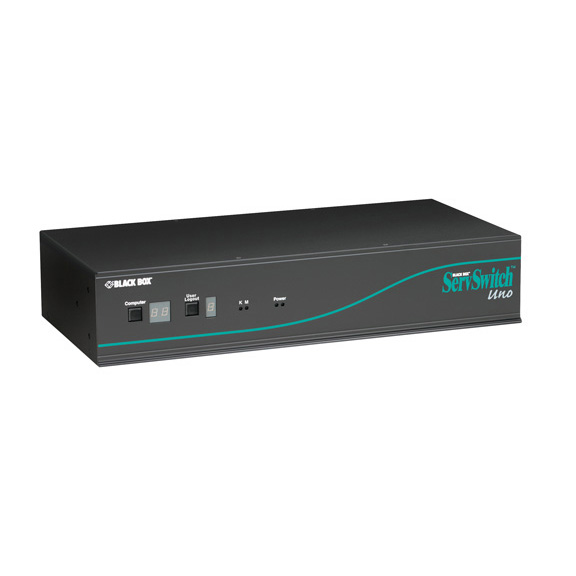

KV6016FA-R2

Photo may show similar product

Other views

ServSwitch Uno KVM Switch, 1 x 16, ServSwitch Uno™ KVM Switch

Use a PS/2 keyboard and mouse to control up to 16 PC, Mac, or Sun CPUs.

KV6016FA-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • ServSwitch Uno enables you to access and control up to 16 CPUs or servers with 1 keyboard, monitor, and mouse.

  • Description

    ServSwitch Uno™ KVM Switch


    Quick Facts

  • ServSwitch Uno enables you to access and control up to 16 CPUs or servers with 1 keyboard, monitor, and mouse.

  • Further Details

  • Supports a wide range of IBM compatible computers, including PS/2 and PC/AT keyboards and mice.
  • Compatible with our ServSwitch.
  • Flash upgradable via the serial port.
  • High-quality video resolution with DDC support.
  • Password security.
  • On-screen menus provide easy switching. Or switch from the front panel, with hotkeys, or from a three-button mouse.
  • Cascadable to support more CPUs.
  • Supports a three-button mouse or IntelliMouse.

  • Are you looking for exceptional server management capabilities in a single-user KVM switch? Then take a look at the ServSwitch Uno KVM Switch. It’s perfect for the IT professional who wants flexibility but doesn’t require multiuser or remote access.

    With the ServSwitch Uno, you can access and control up to 16 CPUs or servers with 1 local keyboard, monitor, and mouse. It supports PC keyboard modes 1, 2, and 3, making it compatible with all PC/AT® and PS/2® style keyboards.

    Use alone or cascade.
    Use this switch to control 16 CPUs. Or string multiple switches together to control hundreds of servers. It’s also compatible with the ServSwitch Duo™, ServSwitch Duo USB, and ServSwitch Quadro™ for use in large installations.

    The autoscan feature makes monitoring CPUs or servers easy. Scan only the active CPUs or servers attached to one chassis, or scan selected CPUs or servers attached to any chassis in your system. You can even program your preferred scan rate and view each CPU or server at your own pace.

    Easy switching.
    KVM switching isn’t an unwieldy operation either. On-screen menus pop up on demand and make it easy to select a CPU or server. You can even give each CPU or server a name that makes sense to you. No software is required on your CPUs or servers because their names are stored in both switches’ memory.

    You can also switch between CPUs or servers using a front-panel push button, a hotkey sequence, or a three-button mouse.

    Lock out unauthorized users.
    Set up individual user profiles with separate passwords. You can control who can access each CPU or server. For extra security, lock the front-panel controls.

    A selectable screen-saver mode puts the switch to sleep and blanks the screen after a set period of inactivity. Plus, the switch automatically locks itself when it goes into sleep mode.

    Plays well with others.
    Compatibility is no problem. The switch supports a wide range of PC-compatible hardware and software platforms, including some high-end IBM® PS/2 compatible computers such as IBM RS/6000®, Compaq®, Alpha®, and SGI™. It works with both PC/AT serial and PS/2 mice and keyboards. Automatic mouse conversion means it works with all PS/2, IntelliMouse®, and RS-232 mice.

    The switch handles mouse communication in the stream mode used by desktop PCs and in the prompt mode used by laptops such as the IBM ThinkPad® so you can use it with nearly any IBM compatible laptop.

    Installation options.
    Use standard CPU Cables (EHN408) to connect PS/2 CPUs. For PCs or Sun® computers with USB connections, use PS/2 to USB Flash Cables (EHN428).

    With PS/2 to Sun Flash Cables (EHN429), you can access legacy Sun CPUs with 8-pin connectors. Macintosh® connections vary widely—to get the right cables for your Mac® application, call our FREE Tech Support.

    To connect workstations to your switch, just use the cables that came with your keyboard, monitor, and mouse.


    Technical Specifications for ServSwitch Uno KVM Switch, 1 x 16, ServSwitch Uno™ KVM Switch:

    Controls — On-screen menus;
    Keyboard commands;
    Mouse-click functions; (1) DIP switch for firmware upgrade;
    Push buttons: (1) for CPU selection, (1) for user logout
    Distance (Maximum) — 32.8 ft. (10 m) from user port to directly attached user station; 98.4 ft. (30 m) from PS/2 CPU ports to any directly attached CPU or KVM switch;
    Using EHN408: 100 ft. (30.4 m) from CPU ports to directly attached CPU or KVM switch;
    Using EHN428–EHN429: 35 ft. (10.6 m) from CPU ports to directly attached CPU
    Resolution (Maximum) — 1900 x 1440 at 100 Hz
    Interface — Video: VGA (including SVGA, XGA, and VESA DDC support); DDC 1 and DDC 2 signaling;
    Keyboard and mouse: IBM® PS/2® compatible; with adapters, also supports PC/AT® style keyboards or CPU keyboard ports and serial CPU mouse ports;
    Serial: Subset of TIA-574 (IBM PC DB9) pinout of TIA/EIA RS-232;
    Connectors — Serial port: (1) DB9 F for flash upgrade;
    User port(s):(1) HD15 F for monitor, (2) 6-pin mini DIN for keyboard and mouse;
    CPU ports: (16) with each consisting of: (1) HD15 F for video-port attachment, (2) 6-pin mini DIN F for keyboard and mouse;
    Power: (2) barrel jacks
    Power — External 100–240 VAC, 50–60 Hz, autosensing
    Size — 3.5"H (2U) x 17.3"W x 8.7"D (8.9 x 43.9 x 22.1 cm)
    Weight — 8.8 lb. (4 kg)
    This product works with:
  • CPU Cables for Standard KVM Connections (EHN408)
  • Control Station Cables (EHN409)
  • PS/2 to USB Flash Cables (EHN428)
  • PS/2 to Sun Flash Cables (EHN429)
  • 5-V Power Supply (PS649-R2)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
