KVM > Server Room/Enterprise KVM

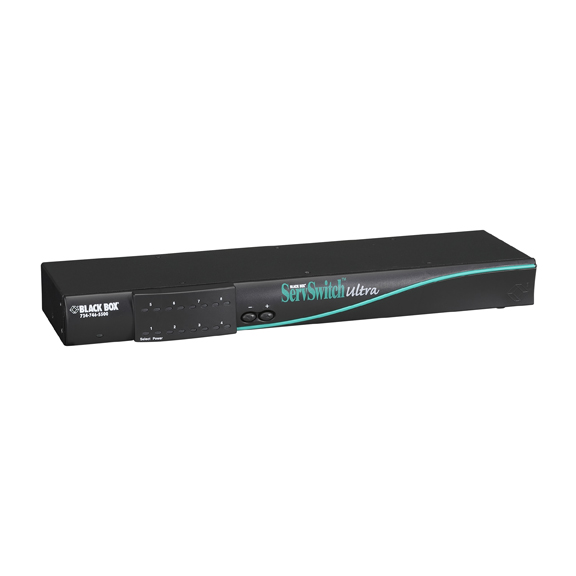

click photo to enlarge

KV5008SA-R2

Photo may show similar product

Other views

ServSwitch Ultra, Slim Chassis, 8-Port

Support for Sun keyboards and mice—and it even has audio and touch screen functionality!

KV5008SA-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Optimized for use with audio applications! Just use standard or coax audio cables.
  • Multiplatform! Supports PC, Sun®, Mac®, and select UNIX servers.
  • For use in server installations the include the latest blade servers.

  • Description

    ServSwitch Ultra, Slim Chassis, 8-Port


    Quick Facts

  • Optimized for use with audio applications! Just use standard or coax audio cables.
  • Multiplatform! Supports PC, Sun®, Mac®, and select UNIX servers.
  • For use in server installations the include the latest blade servers.

  • Further Details

  • Highly durable and reliable computer and user-cable connections.
  • Also available in mini and full chassis, as well as 4-, 8-, 12-, and 16-port versions.
  • On-screen menus and security.
  • Cable distances of up to 100 feet (30.4 m) without additional extension products.
  • Mouse conversion, so you can mix PS/2, USB, and serial mice, as well as Sun and Mac mice.
  • Flash-ROM upgradable.
  • Premium video resolution.

  • This multiplatform model handles PC, Sun®, Mac®, and select UNIX® machines (RS/6000™, DEC™ Alpha, HP9000™, etc.) all at the same time! You can mix all platforms in a single installation.

    The ServSwitch Ultra is ideal for nearly every application–from simple office installations to large network server installations. It performs mouse conversion so you can mix PS/2, USB, and serial mice, as well as Mac and Sun mice. Plus it's Flash-ROM upgradable, so it's virtually obsolescence-proof! Rackmount Kits (see "Related Products") make it easy to keep multiple switches neatly racked in your computer room. Don't worry about losing valuable rack space—each Mini chassis occupies only 1U (1.75"H) of space.

    It's no secret that on-screen menus make operating your switch a lot easier. Switching between servers is much more convenient—you can even give your servers names that make sense to you.


    NOTE: Please contact our FREE Tech Support about compatibility with laptop and notebook computers.

    What’s included:
  • ServSwitch Ultra
  • Power cord
  • Flash Kit (Serial to RJ-11 adapter and a 7-ft. RJ-11 cable)
  • User’s manual


  • This product works with:
    Standard CPU/Server to ServSwitch Cables (EHN048, EHN215)
    Standard CPU/Server to ServSwitch Cable with Audio, for PS/2 (EHN151A)
    Coax CPU/Server to ServSwitch Cables (EHN206, EHN515, EHN208)
    Coax CPU/Server to ServSwitch Cable with Audio, for PS/2 (EHN382A)
    Standard ServSwitch to Keyboard/Monitor/Mouse Cables (EHN052, EHN210)
    Standard ServSwitch to Keyboard/Monitor/Mouse Cable with Audio, for PS/2 (EHN154A)
    Coax ServSwitch to Keyboard/Monitor/Mouse Cables (EHN270, EHN201, EHN225, EHN203)
    Coax ServSwitch to Keyboard/Monitor/Mouse Cable with Audio, for PS/2 (EHN383A)
    Coax USB CPU/Server to ServSwitch Cable with Audio, Multiplatform (EHN485A)
    CPU/Server to ServSwitch Cables with Audio (User Cables) for Sun (HD15) (EHN225A)
    CPU/Server to ServSwitch Cables with Audio (User Cables) for Sun (13W3) (EHN201A)
    ServSwitch USB to PS/2 Flashable User Cables (EHNUSB)
    ServSwitch to Sun CPU with HD15 Connector Cables with Audio (Server Cables) (EHN515A)
    ServSwitch to Sun CPU with 13W3 Connector Cables with Audio (Server Cables) (EHN206A)
    CPU/Server to ServSwitch Cables (CPU Cables) for Touch Screen Support (EHN382S)
    ServSwitch to Keyboard/Monitor/Mouse Cables (User Cables) for Touch Screen Support (EHN383S)
    ServSwitch Single-User PS/2 Cables (EHN182, EHN183)
    ServSwitch Remote Single-User (ACR9005A)
    ServSwitch Ultra Rackmount Kits (RMK19M, etc.)
    Questions? Contact our FREE Tech Support.


    Technical Specifications for ServSwitch Ultra, Slim Chassis, 8-Port:

    Approval — UL®, CSA
    Distance (Maximum) — 20 ft. (6 m) using standard ServSwitch cable; for higher resolutions and greater distances, use coax cable (up to 100 ft. [30.4 m])
    Hardware Requirements — Multisync monitor required; should be able to match the highest video standard used and form video from either composite sync or separate vertical and horizontal sync signals
    Resolution (Maximum) — 1600 x 1280 at 100 Hz
    CE Approval — Yes
    Connectors — (1) IEC 320 input for power;
    (1) RJ-11 for serial control and Flash-ROM upgrades;
    (1) DB25 F for common KVM;
    (1) DB25 F for each CPU port
    Indicators — LEDs: (1) Power; (2) for every CPU port: (1) CPU Selected, (1) CPU Power
    Power — 100–240 VAC, 50–60 Hz, autosensing, with IEC 320 connector
    Weight — 5.3 lb. (2.4 kg);
    NOTE: Please contact our FREE Tech Support about compatibility with laptop and notebook computers.

    What’s included:
  • ServSwitch Ultra
  • Power cord
  • Flash Kit (Serial to RJ-11 adapter and a 7-ft. RJ-11 cable)
  • User’s manual


  • This product works with:
    Standard CPU/Server to ServSwitch Cables (EHN048, EHN215)
    Standard CPU/Server to ServSwitch Cable with Audio, for PS/2 (EHN151A)
    Coax CPU/Server to ServSwitch Cables (EHN206, EHN515, EHN208)
    Coax CPU/Server to ServSwitch Cable with Audio, for PS/2 (EHN382A)
    Standard ServSwitch to Keyboard/Monitor/Mouse Cables (EHN052, EHN210)
    Standard ServSwitch to Keyboard/Monitor/Mouse Cable with Audio, for PS/2 (EHN154A)
    Coax ServSwitch to Keyboard/Monitor/Mouse Cables (EHN270, EHN201, EHN225, EHN203)
    Coax ServSwitch to Keyboard/Monitor/Mouse Cable with Audio, for PS/2 (EHN383A)
    Coax USB CPU/Server to ServSwitch Cable with Audio, Multiplatform (EHN485A)
    CPU/Server to ServSwitch Cables with Audio (User Cables) for Sun (HD15) (EHN225A)
    CPU/Server to ServSwitch Cables with Audio (User Cables) for Sun (13W3) (EHN201A)
    ServSwitch USB to PS/2 Flashable User Cables (EHNUSB)
    ServSwitch to Sun CPU with HD15 Connector Cables with Audio (Server Cables) (EHN515A)
    ServSwitch to Sun CPU with 13W3 Connector Cables with Audio (Server Cables) (EHN206A)
    CPU/Server to ServSwitch Cables (CPU Cables) for Touch Screen Support (EHN382S)
    ServSwitch to Keyboard/Monitor/Mouse Cables (User Cables) for Touch Screen Support (EHN383S)
    ServSwitch Single-User PS/2 Cables (EHN182, EHN183)
    ServSwitch Remote Single-User (ACR9005A)
    ServSwitch Ultra Rackmount Kits (RMK19M, etc.)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch Ultra, Slim Chassis, 8-Port:

    Product Data Sheets

    Firmware

    • ServSwitch Ultra Firmware
      Firmware for KV5002MA-R2, KV5004MA-R2, KV5004SA-R2, KV5008SA-R2, KV5008FA-R2, KV5012FA-R2, and KV5016FA-R2

    Black Box Explains


    Connect your ServSwitch Ultra, Slim Chassis, 8-Port with:

    Accessory: EHN485-0005

    ServSwitch USB Coax CPU Cable, 5-ft. (1.5-m)

    ServSwitch USB Coax CPU Cable, 5-ft. (1.5-m)

    Accessory: EHNUSB-0001

    ServSwitch USB to PS/2 User Cables , 1-ft. (0.3-m)

    ServSwitch USB to PS/2® User Cables, Flashable, 1-ft. (0.3-m)

    Accessory: RMK19WP

    ServSwitch Wizard PRO Rackmount Kit, For 19" Rack

    ServSwitch Wizard PRO Rackmount Kit, For 19" Rack

    Accessory: EHN225-0005

    ServSwitch to Multisync Monitor and Sun Keyboard/Mouse User Cable, Coax, 5-ft. (1.5-m)

    ServSwitch to Multisync Monitor and Sun Keyboard/Mouse User Cable, Coax, 5-ft. (1.5-m)

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Two year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $91.70

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $183.39

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    ServSwitch Ultra, Slim Chassis, 8-Port KV5008SA-R2 $916.95

    ServSwitch Ultra Mini Chassis, 2-Port KV5002MA-R2 $504.95

    ServSwitch Ultra, Mini Chassis, 4-Port KV5004MA-R2 $608.95

    ServSwitch Ultra, Slim Chassis, 4-Port KV5004SA-R2 $608.95

    ServSwitch Ultra, Full Chassis, 8-Port KV5008FA-R2 $916.95

    ServSwitch Ultra, Full Chassis, 12-Port KV5012FA-R2 $1,219.95

    ServSwitch Ultra, Full Chassis, 16-Port KV5016FA-R2 $1,629.95
