KVM > Desktop

click photo to enlarge

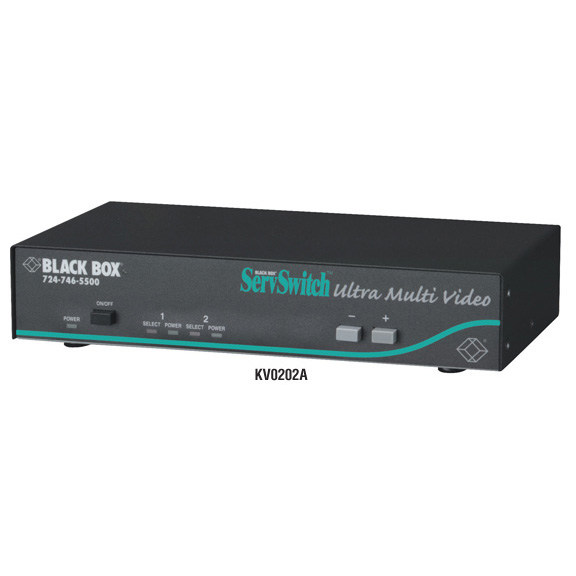

KV0204A

Photo may show similar product

Other views

ServSwitch Ultra Multi Video, Quad-Video

Control two, four, or eight multiplatform computers and get dual- or quad-video support.

KV0204A


One year Warranty

Product Highlights

  • Maximum resolution of 1600 x 1280.
  • Switch from your keyboard, an on-screen display, a computer linked through the serial port, or the front-panel buttons.

  • Description

    ServSwitch Ultra Multi Video (Multiplatform), For 2 CPUs, Quad-Video


    Quick Facts

  • Maximum resolution of 1600 x 1280.
  • Switch from your keyboard, an on-screen display, a computer linked through the serial port, or the front-panel buttons.

  • Further Details

  • Mix PC, Mac®, Sun®, and UNIX® computers.
  • Simultaneously switch all video ports.
  • To support up to 64 servers, daisychain multiple units together.
  • Complete keyboard and mouse emulation for automatic and simultaneous booting.
  • Rackmountable with an optional kit.
  • Firmware can be flash updated via the RS-232 port.

  • Supporting the latest dual- and quad-head graphics cards, the ServSwitch Ultra Multi Video represents the latest in single-user KVM switching technology for CPUs with multiple video outputs.

    If you need to switch multiple video images for two, four, or eight computers, then the ServSwitch Ultra Multi Video is for you. It provides seamless switching of connected CPUs from a single KVM station. You can even connect your USB keyboard and mouse.

    The multiplatform switch brings switching versatility to server room applications containing a mix of PC, Mac, Sun, and UNIX computers by converting mouse data to any of these platforms. What’s more, a preconfiguration feature enables you to install most computers or servers without having to remove power.

    You get switching flexibility, too. To select a connected CPU, you can use several keyboard commands, push a button on the ServSwitch Ultra Multi Video’s front panel, or switch via a console connected through its RS-232 serial port. Or use the switch’s convenient on-screen display for server selection and configuration. The server window features adjustable background and text colors, and enables you to assign a unique name (up to 16 ASCII characters long) to each connected computer.

    You can also set the ServSwitch™ to automatically scan between computer video screens at a predetermined interval when it powers on.

    To add CPUs to your KVM switching application, daisychain multiple ServSwitch Ultra Multi Video units with the optional expansion cables. The 2-port models can be expanded to four computers, the 4-port models to 16 computers, and the 8-port chassis to as many as 64 computers!


    Technical Specifications for ServSwitch Ultra Multi Video, Quad-Video:

    Operating Systems Supported — PC, Mac, Sun, UNIX
    Resolution (Maximum) — 1600 x 1280
    Video — Bandwidth: 250 MHz;
    Sync: Accepts HV, Composite, sync-on-green
    CE Approval — Yes
    Connectors — CPU/KVM ports: (4), (8), or (16) DB25 F;
    Video ports: (2) or (4) DB25 F;
    RS-232: (1) RJ-12 (6 pin);
    Power: IEC 320 standard receptacle
    Indicators — LEDs: Per unit: (1) Power;
    Per CPU port: (1) Select, (1) CPU Power
    Power — 90–240 VAC, 50–60 Hz, internal, autoswitching
    Size — KV0202A: 1.75"H (1U) x 8.8"W x 4.9"D (4.4 x 22.4 x 12.4 cm);
    KV0204A, KV0404A, KV0802A: 3.5"H (2U) x 16.7"W x 4.9"D (8.9 x 42.4 x 12.4 cm);
    KV0402A: 1.75"H (1U) x 16.7"W x 4.9"D (4.4 x 42.4 x 12.4 cm)
    Weight — KV0202A: 4 lb. (1.8 kg);
    KV0204A: 7 lb. (3.2 kg);
    KV0402A: 6 lb. (2.7 kg);
    KV0404A, KV0802A: 8 lb. (3.6 kg)
    NOTE: For cascading and rackmounting options, as well as video-only connections or Macintosh® support, contact ServSwitch Central™ at 724-746-5500 or by clicking “Talk to a Tech.”

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
