Datacom > Switches

click photo to enlarge

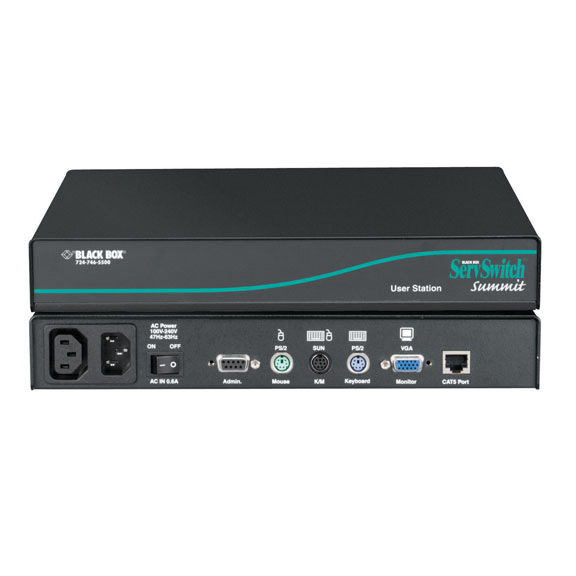

KV1510A-R2

Photo may show similar product

Other views

ServSwitch Summit User Station

Provides device connections to the Summit Base Units.

KV1510A-R2


Two year Warranty

Product Highlights

  • Provides PS/2® keyboard, monitor, and mouse connections to the ServSwitch Summit Base Unit.

  • Description

    Summit User Station


    Quick Facts

  • Provides PS/2® keyboard, monitor, and mouse connections to the ServSwitch Summit Base Unit.

  • Further Details

  • Locate users and servers up to 500 feet (152.4 m) apart.
  • Connect all components within the system using CAT5 cable.
  • Computer Interface Modules (CIMs) available for various connection types.
  • Simple plug-and-play, autoconfiguring installation.


  • The Summit User Station (KV1510A-R2) provides PS/2® keyboard, monitor, and mouse connections to the Base Unit. Each authorized user can access servers from a user keyboard/monitor/mouse console that’s plugged into a User Station, which connects to the Base Unit via a single CAT5 cable.



    Technical Specifications for ServSwitch Summit User Station:

    Distance (Maximum) — 500 ft. (152.4 m) over Category 5 cable
    Resolution (Maximum) — 1280 x 1024 @ 75 Hz
    CE Approval — Yes
    Connectors — CAT5 port: (1) RJ-45; Administration: (1) DB9 F; Keyboard and mouse: (2) 6-pin mini DIN F; VGA monitor: (1) HD15 F
    Power — 115/230 VAC, 60/50 Hz
    Size — 1.75"H (1U) x 11.4"W x 10.1"D (4.4 x 29 x 25.7 cm)
    Weight — 4.3 lb. (2 kg)
    These products work with:
    • CAT5 100-MHz Solid-Conductor Bulk Cable, 4-Pair (EYN840A, etc.)
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS, etc.)
    • ServSwitch Summit Computer Interface Modules (CIMs) (KV1515A, etc.)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch Summit User Station:

    Product Data Sheets

    Application Diagrams


    Connect your ServSwitch Summit User Station with:

    Accessory: EYN556MS-0010

    CAT5e Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, 10-ft. (3.0-m)

    CAT5e Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, 10-ft. (3.0-m)

    Accessory: EYN717A

    CAT5 Unshielded Solid, 100-MHz Bulk Cable, 24 AWG, 2-Pair, PVC, Gray, Custom Lengths

    CAT5 Unshielded Solid, 100-MHz Bulk Cable, 24 AWG, 2-Pair, PVC, Gray, Custom Lengths
