ServSwitch Spectra KVM Switch Kit

Two-port KVM switch that also supports stereo audio.

SW681A-K

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Controls two PS/2 computers from one keyboard, monitor, and mouse.
  • Provides stereo audio support.
  • Sleek design maximizes desktop space.
  • Economical for home or office use.
  • Supports PS/2 and wheel mice.
  • Full keyboard and mouse emulation.

  • Description

    ServSwitch Spectra KVM Switch Kit


    Quick Facts

  • Controls two PS/2 computers from one keyboard, monitor, and mouse.
  • Provides stereo audio support.
  • Sleek design maximizes desktop space.
  • Economical for home or office use.
  • Supports PS/2 and wheel mice.
  • Full keyboard and mouse emulation.

  • Further Details

  • Sharp 1600 x 1280 video resolution using coax cable up to 10 feet. For resolutions at other distances, contact our FREE Tech Support.
  • Easy to install.
  • No additional power supply or software required.
  • Simple push button or keyboard command switching.
  • The SW681A includes a mounting plate.

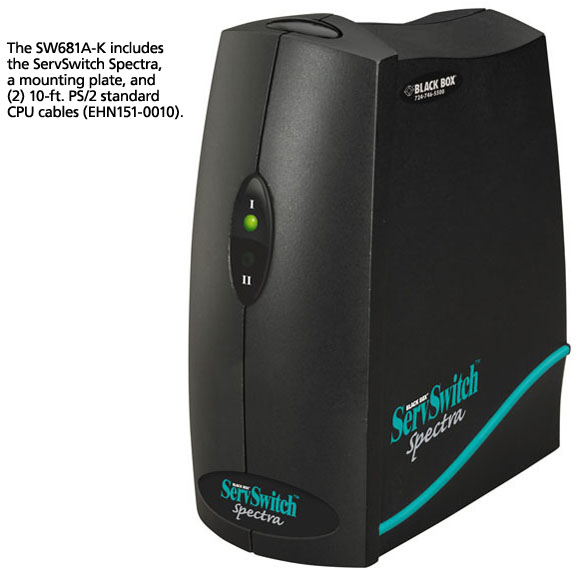

  • The SW681A-K includes the ServSwitch Spectra, a mounting plate, and (2) 10-ft. PS/2 standard CPU cables.

    Just because you have an eye for a bargain doesn’t mean you have to sacrifice desktop style. The economical ServSwitch Spectra™ from Black Box combines a sleek, space-saving design with the dependability you’ve come to expect from the ServSwitch™ line of KVM switches.

    With the ServSwitch Spectra, you can control two PS/2® computers with one keyboard, monitor, and mouse. Just use keyboard commands or the simple push button to switch effortlessly between PCs.

    You'll find installing the ServSwitch Spectra is effortless as well. Simply connect your keyboard, monitor, and mouse to the ServSwitch Spectra with the attached cables. Then attach the ServSwitch Spectra to your PCs with our CPU cables. You can use the standard CPU cables for lower resolutions and distances up to 15 feet. Or use coax cable for higher resolutions and distances up to 20 feet.

    Once you’ve connected the cables, turn on your computers and you’re ready to go! No additional hardware or software is necessary. Plus, the ServSwitch Spectra is interface powered, so you don't need a power supply either.

    But what about the lockups that can occur with ordinary KVM switches? Most KVM switches can’t maintain synchronization between your PC and the keyboard and mouse. The result: Your computer freezes and you have to reboot. The ServSwitch Spectra, however, provides full keyboard and mouse emulation, enabling you to switch between PCs without any delays.

    Besides full keyboard and mouse emulation, the ServSwitch Spectra supports video resolution up to 1600 x 1280 and stereo audio. To use the audio capabilities of the ServSwitch Spectra, attach your PC to the ServSwitch Spectra with audio cables (as well as the CPU cables) and plug your favorite speakers into the ServSwitch Spectra.

    And as proof that sometimes you can judge a book by its cover, all these features come packaged in a sleek, stylish switch designed to save space and complement your office decor. So if you want to maximize time and space without sacrificing style or money, choose the ServSwitch Spectra.

  • Technical Specifications for ServSwitch Spectra KVM Switch Kit:

    Distance — With standard cable length: Up to 15 ft. (4.5 m);
    With coax cable: Up to 20 ft. (6 m)
    Resolution (Maximum) — 1600 x 1280 with coax CPU cables
    Supported CPUs — PS/2 with PS/2 mice, including wheel mice, and PS/2 keyboards
    CE Approval — Yes
    Connectors — CPU: (4) 6-pin mini DIN F, (2) HD15 F, (2) 3-mm barrel jack;
    User: (2) 6-pin mini DIN F, (1) HD15 F, (1) 3-mm barrel jack
    Indicators — (2) CPU Select
    Power — From the interface
    Size — 6.2"H x 2.7"W x 5"D (15.7 x 6.9 x 12.7 cm)
    This product works with:
    • ServSwitch Standard CPU Cables (EHN404)
    • ServSwitch Coax CPU Cables (EHN408)
    • Stereo Cables (EJ110)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
