KVM > Extenders

click photo to enlarge

ACS4004A-R2

Photo may show similar product

Other views

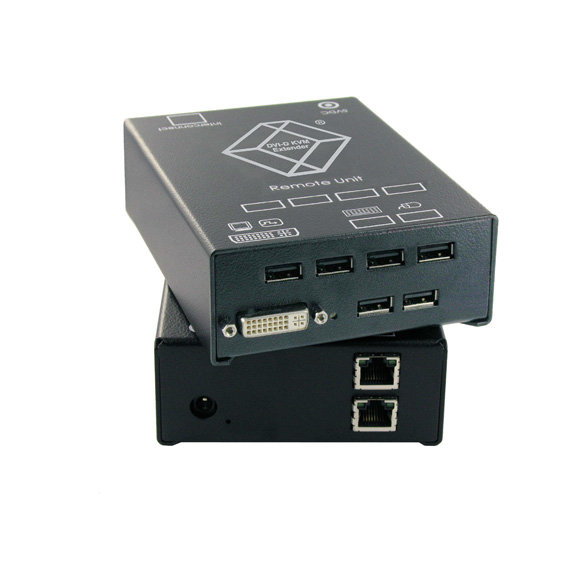

ServSwitch Single DVI-D KVM Extender with 4 USB HID Ports

Extend KVM signals plus USB peripherals over CATx cabling up to 460 feet.

ACS4004A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Provides dual access for a single user.
  • Remote unit has four USB HID ports for USB peripherals.


    • Description

    ServSwitch Single DVI-D KVM Extender with 4 USB HID Ports


    Quick Facts

  • Provides dual access for a single user.
  • Remote unit has four USB HID ports for USB peripherals.

    • Further Details

  • Connect a monitor, keyboard, and mouse to the computer and have a KVM console on the remote end. Use your computer at either location!
  • Resolution up to 1920 x 1200
  • 16-/24-bit color depth.
  • Uses inexpensive CAT5/5e/6 cable.


    • With the Black Box® ServSwitch™ Single DVI-D KVM Extender with 4 USB HID Ports, you can send your keyboard, mouse, and a DVI-D video signal up to 460 feet (140 m) over CAT5, CAT5e, or CAT6 cable.

    Just connect a keyboard, mouse, and DVI-D monitor directly to the computer on the transmitting end of the link and a KVM console with a DVI-D monitor on the receiving end. This method of dual access enables you to use your computer at either location.

    The USB HID ports are compatible with human interface devices (HIDs), including keyboards, mice, trackballs, GlidePoint® touchpads, Wacom® tablets, jog wheels, and some touch screens — anything that installs as an HID.

    NOTE: The USB HID ports don’t support small or mass storage devices, optical drives, or any device that requires a driver to be installed. For details, contact our FREE Tech Support.


    Technical Specifications for ServSwitch Single DVI-D KVM Extender with 4 USB HID Ports:

    Color — 16-/24-bit color depth
    Distance (Maximum) — 24 AWG: 460 ft. (140 m);
    26 or 28 AWG: 230 ft. (70 m)
    Operating Environment — Temperature: 41 to 113° F (5 to 45° C);
    Humidity: Up to 80% noncondensing
    Resolution (Maximum) — 1920 x 1200 at 60 Hz
    CE Approval — Yes
    Connectors — Local unit: Keyboard and mouse: (1) USB Type B F; Monitor: (2) DVI-D F; Interconnect: (1) RJ-45;
    Remote unit: Keyboard and mouse: (4) USB Type A F; Monitor: (1) DVI-D F; Interconnect: (1) RJ-45
    Power — 90–240 VAC, 47–63 Hz, autosensing, external, with IEC 320 connector and cord
    Size — Local and remote units: 1.1"H x 4"W x 5.6"D (2.8 x 10.2 x 14.2 cm) each
    Weight — Local and remote units: 1.3 lb. (0.6 kg) each
    NOTE: The USB HID ports don’t support small or mass storage devices, optical drives, or any device that requires a driver to be installed. For details, contact our FREE Tech Support.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch Single DVI-D KVM Extender with 4 USB HID Ports:

    Manuals

    • ServSwitch DVI CATx KVM Extender, Single DVI-D, USB Manual
      Manual for ACS4002A-R2 ACS4004A-R2, ACS4011A-R2, ACS4002A-R2-MM, ACS4004A-R2-MM, ACS4011A-R2-MM, ACS4002A-R2-SM, ACS4004A-R2-SM and ACS4011A-R2-SM (Version 1)
      httpftp

    Software

    • ServSwitch Brand KVM Extender Software
      httpftp


    Connect your ServSwitch Single DVI-D KVM Extender with 4 USB HID Ports with:

    Accessory: ACX1000-DM

    ServSwitch KVM Extender/Cross Repeater, Dual CATx to Multimode Fiber

    ServSwitch KVM Extender/Cross Repeater, Dual CATx to Multimode Fiber

    » more info

    Accessory: ACX1000

    ServSwitch KVM Extender/Cross Repeater, CATx to CATx

    ServSwitch KVM Extender/Cross Repeater, CATx to CATx

    » more info

    Accessory: ACX1000-CM

    ServSwitch KVM Extender/Cross Repeater, CATx to Multimode Fiber

    ServSwitch KVM Extender/Cross Repeater, CATx to Multimode Fiber

    » more info

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Two year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $183.40

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $366.79

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    ServSwitch Single DVI-D KVM Extender with 4 USB HID Ports ACS4004A-R2 $1,833.95

    ServSwitch Single DVI CATx KVM Extender, USB ACS4001A-R2 $1,441.95
