ACS4001A-R2-T

Photo may show similar product

Other views

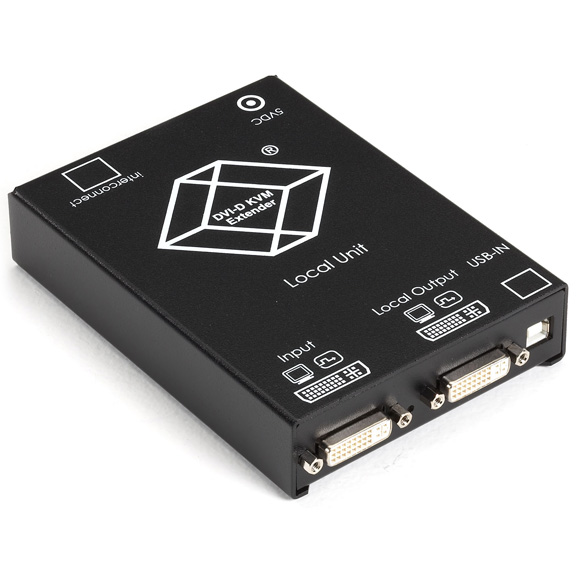

ServSwitch Single DVI CATx KVM Extender, USB, Transmitter

Transmit single-head DVI-D signals up to 400 feet over CATx cable.

ACS4001A-R2-T

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • For USB keyboard and mice.
  • Extend keyboard, mouse, and DVI-D video signals up to 400 feet (121.9 m).
  • Maximum resolution up to 1920 x 1200


  • Further Details

    The ServSwitch Single DVI CATx KVM Extenders, USB, extend the distance between local USB consoles and CPUs and remote USB consoles up to 400 feet (121.9 m) over CATx cable. Connect a keyboard, mouse, and DVI-D monitor directly to the computer on the transmitting end of the link and a KVM console with a DVI-D monitor on the receiving end. Dual access enables you to use your computer at either location. With more monitors connected to your computer, you can put a different applicaiton on each monitor to eliminate tedious switching between applications. Or if you have an application that uses lots of small windows, you can expand it across both monitors for more work space. This transmitter is especially versatile when used with the ServSwitch DKM DVI-D KVM Switches (ACX0808, ACX0816, ACX0832, ACX1616, ACX1632).

    Distance 24 AWG: 400 ft. (121.9 m);
    26 or 28 AWG: 200 ft. (61 m)
    Resolution (Maximum) 1920 x 1200 @ 60 Hz
    CE Approval Yes
    RoHS Yes
    Connectors Keyboard and mouse: (1) USB Type B F;
    Monitor: (2) DVI-D F; Interconnect: (1) RJ-45
    Power 90-240 VAC, 47-63 Hz, autosensing, external, with IEC 320 connector and cord
    Size 1.1"H x 4"W x 5.6"D (2.8 x 10.2 x 14.2 cm)
    Weight 1.3 lb. (0.6 kg)
    This product works with:
  • ServSwitch DKM DVI-D KVM Switches (ACX0808, ACX0816, ACX0832, ACX1616, ACX1632)

  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.


    Double Diamond Warranty
    Extended Double Diamond™ Warranty Available (3 Additional Year)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The ServSwitch Single DVI CATx KVM Extender, USB, Transmitter comes with a standard 2 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    ServSwitch Single DVI CATx KVM Extender, USB, Receiver ACS4001A-R2-R $785.95

    ServSwitch Single DVI CATx KVM Extender, USB ACS4001A-R2 $1,599.95

    ServSwitch Single DVI Fiber Optic KVM Extender, USB, Single-Mode ACS4001A-R2-SM $2,599.95
