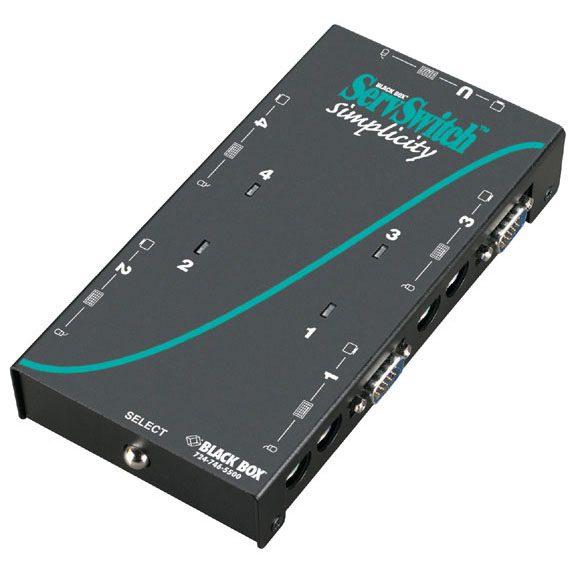

ServSwitch Simplicity, 4-Port

Two- and four-port KVM switch.

SW612A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Great for home use!
  • Also available as a 2-port model!
  • Low-cost, KVM switching for your PS/2 CPUs.
  • Compact yet durable metal chassis.
  • Software independent and easy to install.

  • Description

    ServSwitch Simplicity, 4-Port


    Quick Facts

  • Great for home use!
  • Also available as a 2-port model!
  • Low-cost, KVM switching for your PS/2 CPUs.
  • Compact yet durable metal chassis.
  • Software independent and easy to install.

  • Further Details

  • This compact, 4-port KVM switch is the ideal way to control your PS/2® CPUs easily and economically.
  • Supports PS/2 mice, Microsoft IntelliMouse, and Logitech MouseMan.
  • Interface powered—no external supply needed.
  • Ideal for home use and certain small office applications.
  • Port selection is via a hotkey sequence or a push button.
  • Full keyboard/mouse emulation prevents CPU lockup.
  • Supports resolutions up to 1024 x 768.

    Looking for a simple, cost-effective way to switch between your PS/2® CPUs? Your life just got a whole lot easier!

    Take a look at the ServSwitch Simplicity™. This compact, 4-port KVM switch is the ideal way to control your PS/2® CPUs easily and economically.

    Setup is a snap. Just plug in your monitor, keyboard, and mouse and attach your CPUs using ServSwitch Coax CPU Cables (EHN235-0010). These high-quality cables ensure optimum signal integrity and simplify your connections. There's no software to install and there's no board to configure!

    Afraid you'll sacrifice features to save money? Don't worry! The Simplicity is dependable—and it doesn't skimp on performance. It supports video resolutions up to 1024 x 768, and it's interface powered, which means you don't need a bulky external power supply.

    The ServSwitch Simplicity features full keyboard and mouse emulation, so the switch continuously sends CPUs the keyboard and mouse signals they expect. That way, you don’t have to worry about emulation-related CPU lockup. In addition, the Simplicity supports PS/2 mice and a variety of wheel mice, including Microsoft® IntelliMouse®, and Logitech™ MouseMan®. If you want to know if your mouse is supported, just contact our FREE Tech Support.

    ServSwitch Simplicity is housed in a small, yet rugged metal chassis. You can switch between CPUs via a push button or hotkey sequence. The Simplicity also supports Scan Mode, so you can alternately view the video signals of the attached CPUs at three-second intervals.

    Simplify control of your PS/2 CPUs with ServSwitch Simplicity. This KVM switch is ideal when you need to save money but you want ServSwitch quality.

    What's included with the SW612A:
    • 4-port ServSwitch Simplicity
    • (4) rubber feet
    • (2) VELCRO hook-and-loop mounting strips
    • Manual

    NOTE: The ServSwitch Simplicity does not support serial mice.

  • Technical Specifications for ServSwitch Simplicity, 4-Port :

    Hardware Requirements CPU: IBM® PS/2 or compatibles;
    Monitor: Multisync, VGA, or SVGA;
    Mouse: PS/2;
    Keyboard: PS/2
    Resolution (Maximum) 1024 x 768
    Connectors CPU: (2) or (4) HD15 M, (4) or (8) 6-pin mini DIN F;
    User: Monitor: (1) HD15 F; Keyboard and Mouse: (2) 6-pin mini DIN F
    Indicators LEDs: (2) or (4) CPU Selected
    Power From the interface
    Size 1.2"H x 3.8"W x 7.1"D (3 x 9.7 x 18 cm)
    Weight 1.4 lb. (0.6 kg)
    NOTE: The ServSwitch Simplicity does not support serial mice.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch Simplicity, 4-Port :

    Product Data Sheets

    Application Diagrams


    Connect your ServSwitch Simplicity, 4-Port with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $18.00

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $35.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    ServSwitch Simplicity, 2-Port Kit SW613A-K $139.95
