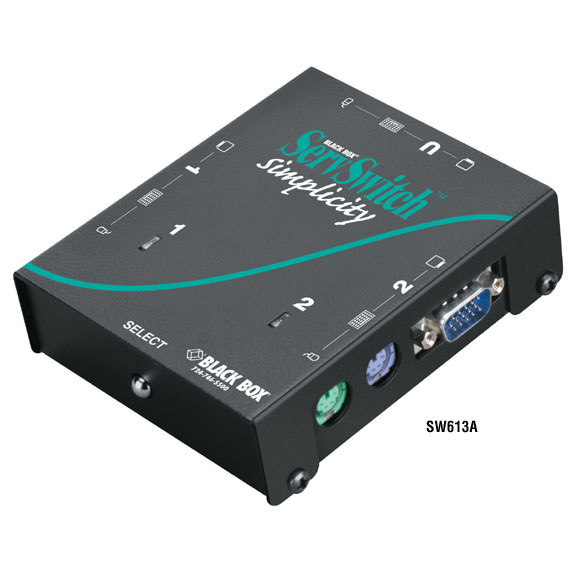

ServSwitch Simplicity Kit - 2-Port Kit

This compact two-port KVM switch is the ideal way to control your PS/2® CPUs easily and economically.

SW613A-K

2 YEAR DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Great for home use!
  • Low-cost, KVM switching for your PS/2 CPUs.
  • Compact yet durable metal chassis.
  • Software independent and easy to install.


  • Further Details

  • Supports PS/2 mice, Microsoft IntelliMouse, and Logitech MouseMan.
  • Interface powered—no external supply needed.
  • Ideal for home use and certain small office applications.
  • Port selection is via a hotkey sequence or a push button.
  • Full keyboard/mouse emulation prevents CPU lockup.
  • Supports resolutions up to 1024 x 768.
  • Also available in 4-port version.

  • Looking for a simple, cost-effective way to switch between your PS/2® CPUs? Your life just got a whole lot easier!

    Take a look at the ServSwitch Simplicity™. This compact, 2- or 4-port KVM switch is the ideal way to control your PS/2® CPUs easily and economically.

    Setup is a snap. Just plug in your monitor, keyboard, and mouse and attach your CPUs using ServSwitch Coax CPU Cables (EHN235-0010). These high-quality cables ensure optimum signal integrity and simplify your connections. There's no software to install and there's no board to configure!

    Afraid you'll sacrifice features to save money? Don't worry! The Simplicity is dependable—and it doesn't skimp on performance. It supports video resolutions up to 1024 x 768, and it's interface powered, which means you don't need a bulky external power supply.

    The ServSwitch Simplicity features full keyboard and mouse emulation, so the switch continuously sends CPUs the keyboard and mouse signals they expect. That way, you don’t have to worry about emulation-related CPU lockup. In addition, the Simplicity supports PS/2 mice and a variety of wheel mice, including Microsoft® IntelliMouse®, and Logitech™ MouseMan®. If you want to know if your mouse is supported, just contact our FREE Tech Support.

    ServSwitch Simplicity is housed in a small, yet rugged metal chassis. You can switch between CPUs via a push button or hotkey sequence. The Simplicity also supports Scan Mode, so you can alternately view the video signals of the attached CPUs at three-second intervals.

    Simplify control of your PS/2 CPUs with ServSwitch Simplicity. This KVM switch is ideal when you need to save money but you want ServSwitch quality.


    This product includes:
    • 2-port ServSwitch Simplicity
    • (2) Standard 3-in-1 8-ft. CPU Cables (EHN403-0008)
    • (4) rubber feet
    • (2) VELCRO hook-and-loop mounting strips
    • Manual

    Hardware Requirements CPU: IBM® PS/2 or comp atibles;
    Monitor: Multisync, VGA, or SVGA;
    Mouse: PS/2;
    Keyboard: PS/2
    Resolution 1024 x 768 maximum
    CE Approval Yes
    Connectors CPU: (2) HD15 M, (4) 6-pin mini DIN F;
    User: Monitor: (1) HD15 F; Keyboard and Mouse: (2) 6-pin mini DIN F
    Indicators LEDs: (2) CPU Selected
    Power From the interface
    DimensionsUnit: 1.2"H x 3.6"W x 4.4"D (3 x 9.1 x 11.2 cm)
    Weight Unit: 0.8 lb. (0.4 kg)

    NOTE: The ServSwitch Simplicity does not support serial mice.

    NOTE: Also available in 4-Port version.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.
