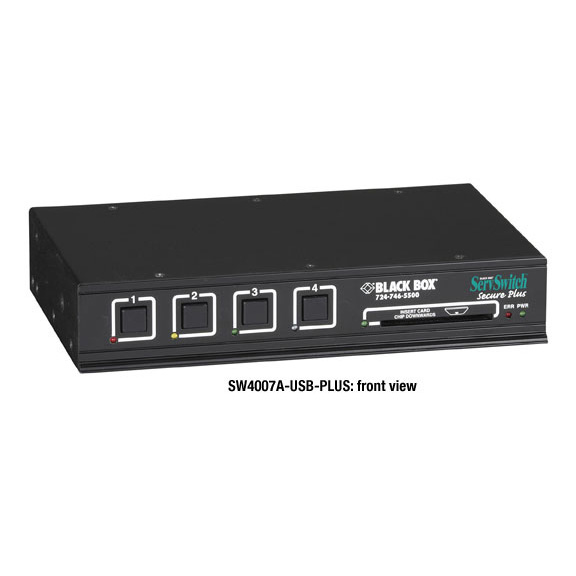

ServSwitch Secure Plus (with USB), 4-Port

Thwart hackers from accessing information with the added security of a built-in card reader.


Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • CAC card reader.
  • High levels of port isolation prevent data leakage.
  • DVI resolution.

  • Further Details

  • Secure switching between computers with USB, DVI-I, and audio connections.
  • Built-in card reader provides an additional layer of security. Authorized users can access only the computers they are permitted to operate.
  • Permanently hard wired. Every circuit is soldered and there is no flash ROM. There is no way to access one CPU from the other or to access one network from the other.
  • Diodes also provide at least 60 dB of isolation to swamp any crosstalk signals between connected computer circuits.
  • Unidirectional keyboard and mouse signaling thwarts hacking via timing analysis, USB common storage Trojans, keyboard light emissions snooping, and forced malfunctions.
  • Heavy-duty metal casing is electrically bonded and ensures low emissions.
  • USB keyboard and mouse connections.
  • Digital DVI-I video signals are differential, DC balanced, and encoded.
  • DVI-I video also provides exact video quality and is backwards compatible with analog VGA equipment.
  • True DDC video support.
  • Clear stereo audio switching circuit for speaker connections eliminates interference and crackle.

  • Connectors CPU: (4) DVI-I F, (4) USB Type B F, (4) 3.5-mm audio jacks;
    User: (1) DVI-I F, (2) USB Type A F, (1) 3.5-mm audio jacks;
    Card reader: (1) internal;
    Power: (1) 2.5-mm barrel F
    Indicators LEDs: (1) Power, (1) Error, (1) CPU Selected per port
    Power 115 VAC, 60 Hz
    Dimensions 1.75"H (1U) x 9.1"W x 5.6"D (4.4 x 23.1 x 14.2 cm)

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.


    • ServSwitch Secure and Secure Plus
      Installation and User Guide (Feb-08)
