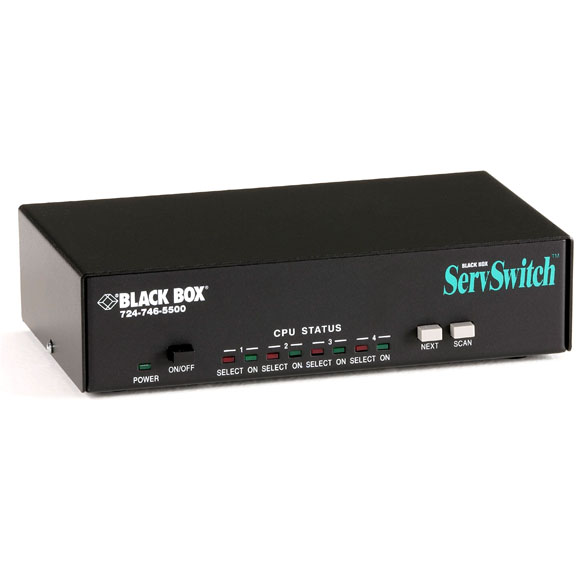

ServSwitch (Secure) KVM Switch, 4-Port

2- or 4-port secure KVM switch that supports both PS/2 or USB-style keyboards and mice.

SW722A-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Non-upgradable ROM for security.
  • Provides separation of computers connected to different networks.
  • Works in secure environments.

  • Description

    ServSwitch (Secure) KVM Switch, 4-Port


    Quick Facts

  • Non-upgradable ROM for security.
  • Provides separation of computers connected to different networks.
  • Works in secure environments.

  • Further Details

  • Keep your computers separate—but use just one keyboard, monitor, and mouse to access up to four PS/2® or USB-style computers.
  • Automatic keyboard and mouse booting for IBM PC compatibles.
  • Switch from your keyboard or the switch's front panel.


  • If your job involves protecting information, you might have access to a nonsecure network that can be linked to the Internet. You probably also have access to a secure network that must be kept separate from the outside world. For obvious reasons, these two networks must be connected to separate computers. Of course, that means you have two keyboards, two monitors, and two mice cluttering your desktop.

    There is a solution—the ServSwitch™ from Black Box. You keep your computers separate—but use just one keyboard, monitor, and mouse to access both. The ServSwitch enables you to switch between computers with just the touch of a button and at the same time provides separation between computers. It's so secure, you can use this switch to control multiple computers of varying security levels from single workstations.

    The switch is permanently hard wired. Every circuit is soldered down and there is no flash ROM. There is no way to use software to access one CPU from the other or to access one network from the other.

    You get automatic booting even with different kinds of computers! Connect both USB and PS/2® CPUs to the ServSwitch, and boot them all simultaneously. Or boot them remotely from your PC. Switching among CPUs is easy.

    Plug a USB or PS/2 keyboard and mouse into the switch and access USB or PS/2 CPUs—or any combination of the two.


    Technical Specifications for ServSwitch (Secure) KVM Switch, 4-Port:

    Distance (Maximum) Cable length: 20 ft. (6 m);
    VGA with coax cable: 100 ft. (30.4 m)
    Resolution (Maximum) With standard cable: 1024 x 768;
    With coax cable: 1280 x 1024
    Connectors (1) 6-pin RJ-11, (1) 5-pin DIN;
    Indicators LEDs: (1) Power; (1) CPU Selected, (1) CPU Power per port
    Power 115 VAC, 60 Hz
    Size 2.3"H x 8.8"W x 4.9"D (5.8 x 22.4 x 12.4 cm)
    Weight 3 lb. (1.4 kg)
    NOTE: For details regarding XGA applications or for rackmount kits, contact our FREE Tech Support.

    These products work with:
    • Standard CPU/Server to ServSwitch Cables, for PS/2 (EHN151)
    • Coax CPU/Server to ServSwitch Cables, for PS/2 (EHN382)
    • ServSwitch USB Coax CPU Cables, Multiplatform (EHN485)
    • Standard ServSwitch to Keyboard/Monitor/Mouse Cables, for PS/2 (EHN154)
    • Coax ServSwitch to Keyboard/Monitor/Mouse Cables, for PS/2 (EHN383)
    • ServSwitch USB to PS/2 Nonflashable User Cable (EHNUSBNF1)
    Questions? Contact ServSwitch Central™ at 724-746-5500 or click "Talk to a Tech."


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch (Secure) KVM Switch, 4-Port:

    Manuals

    • R2 ServSwitch
      Installation and User Guide (Apr-03)
    • R2 ServSwitch
      Quick Start Guide (Apr-03)

    Product Data Sheets

    Application Diagrams
