KVM > Extenders

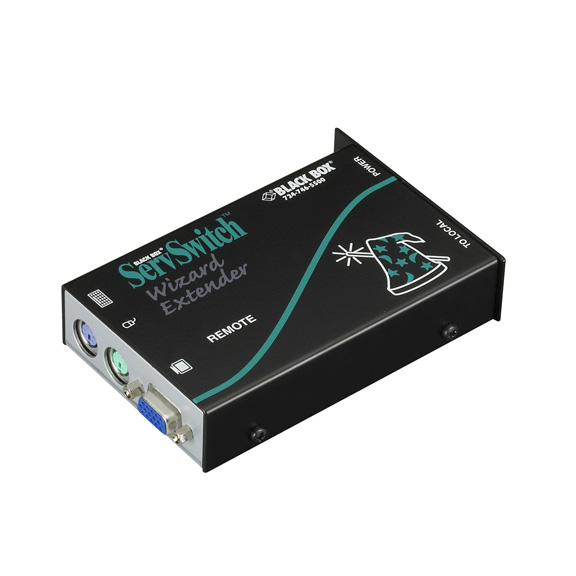

click photo to enlarge

ACU5011A

Photo may show similar product

Other views

ServSwitch Remote Receiver Module

Extend your Duo or Quadro KVM Switch over CAT5 cable up to 656 feet.

ACU5011A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Supports high bandwidth monitors at resolutions up to 1600 x 1280.
  • Supports keyboard modes 1, 2, and 3, and mouse prompt and stream modes for maximum compatibility.
  • Supports automatic and manual video compensation.

  • Description

    ServSwitch Remote (Receiver) Module (to Put a Control Station up to 200 meters [656.1 ft.] from the ServSwitch


    Quick Facts

  • Supports high bandwidth monitors at resolutions up to 1600 x 1280.
  • Supports keyboard modes 1, 2, and 3, and mouse prompt and stream modes for maximum compatibility.
  • Supports automatic and manual video compensation.

  • Further Details

  • Supports Microsoft Intellimouse, IntelliMouse® Explorer and other common wheel mice.
  • Unit can be rackmounted in the ServSwitch Wizard Extender Chassis (ACU5000A).
  • Maximize video quality with manual skew compensation.
  • Keyboard data is kept in its native format ensuring the additional keys on enhanced keyboards are supported.
  • Password security prevents unauthorized use.
  • Flash upgradeable via the keyboard ports.


    This product works with:
  • ServSwitch Duo KVM Switch (KV6104SA-R2)
  • ServSwitch Quadro KVM Switch (KV6416FA-R2)
  • ServSwitch Wizrd Extender Chassis (ACU5000A)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for ServSwitch Remote Receiver Module:

    Distance (Maximum) — 656 feet (200 m)
    CE Approval — Yes
    Connectors — (1) HD15 F, (2) Mini DIN 6 F, (1) RJ-45 for interconnections, (1) barrel connector for power supply
    Size — 1.0"H x 2.9"W x 4.7"D (2.54 x 7.3 x 11.9 cm)
    This product works with:
  • ServSwitch Duo KVM Switch (KV6104SA-R2)
  • ServSwitch Quadro KVM Switch (KV6416FA-R2)
  • ServSwitch Wizrd Extender Chassis (ACU5000A)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for ServSwitch Remote Receiver Module:

    Manuals

    • ServSwitch Wizard Extender
      Installation and User Guide (9/2/2012)

    Product Data Sheets


    Connect your ServSwitch Remote Receiver Module with:

    Accessory: KV6416FA-R2

    ServSwitch Quadro KVM Switch, 16-Port

    ServSwitch Quadro KVM Switch, 16-Port

    Accessory: ACU5000A

    ServSwitch Wizard Extender Rackmount Chassis

    ServSwitch Wizard Extender Rackmount Chassis

    Accessory: KV6104SA-R2

    4-Port ServSwitch Duo KVM Switch

    4-Port ServSwitch Duo KVM Switch
