KVM > Server Room/Enterprise KVM

click photo to enlarge

KV1727A

Photo may show similar product

Other views

ServSwitch Octet Dual RJ-45 Server Access Module (SAMs) with Audio/Serial RS-232 Support, for Sun HD15

Control servers on different platforms with different connections and get audio and serial support.

KV1727A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Expand the capabilities of your ServSwitch Octet™.
  • Enable you to access individual servers from a User Station or a ServSwitch Octet.
  • Dual RJ-45 modules with audio/serial support fit your server connection and its platform.

  • Description

    ServSwitch Octet Dual RJ-45 Server Access Module (SAMs) with Audio/Serial RS-232 Support, for Sun HD15


    Quick Facts

  • Expand the capabilities of your ServSwitch Octet™.
  • Enable you to access individual servers from a User Station or a ServSwitch Octet.
  • Dual RJ-45 modules with audio/serial support fit your server connection and its platform.

  • Further Details

    A ServSwitch Octet Server Access Module (SAM) draws power from an attached server. This ensures keep-alive functionality, providing keyboard and mouse emulation to the server at any time, and it’s independent of the switching system’s status.

    A SAM has a unique ID address, too. As soon as it’s connected to the ServSwitch Octet, the SAM’s address appears on the CPU channel list within the connected User Station’s on-screen menu. From this menu, the SAM can be operated by an administrator. This plug-and-play simplicity reduces installation time tremendously.

    Users can name the SAM’s numeric ID through the User Station’s on-screen menu. It’s stored in the SAM’s nonvolatile flash memory.

    If you disconnect the SAM from the system and move it to a different location later, its name instantly disappears from the list. Once you plug it back into any of the switch’s CPU ports, the SAM is recognized again by the system automatically without any additional reconfiguration. You can also connect a SAM directly to a User Station to provide direct access to the server without interrupting the emulation.

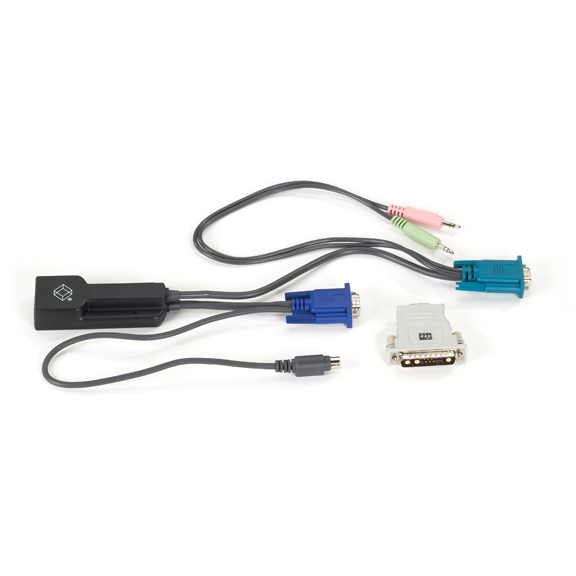

    ServSwitch Octet Server Access Modules (SAMs) are matchbox-size molded units with a pigtail cable attached. They’re available in several versions to match your CPU and platform. The models described here include support for audio and serial connections for PS/2, USB, or Sun HD15.

    This product works with:
  • ServSwitch Octet
    Questions? Contact FREE Tech Support.

  • Technical Specifications for ServSwitch Octet Dual RJ-45 Server Access Module (SAMs) with Audio/Serial RS-232 Support, for Sun HD15:

    CE Approval — Yes
    Connectors — (2) RJ-45, (1) 8-pin mini DIN M, (1) HD15 M plus HD15 F to 13W3 adapter, (1) DB9 M, (2) 3.5-mm M
    This product works with:
  • ServSwitch Octet
    Questions? Contact FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for ServSwitch Octet Dual RJ-45 Server Access Module (SAMs) with Audio/Serial RS-232 Support, for Sun HD15:

    Product Data Sheets


    Connect your ServSwitch Octet Dual RJ-45 Server Access Module (SAMs) with Audio/Serial RS-232 Support, for Sun HD15 with:
