KVM > Cables

click photo to enlarge

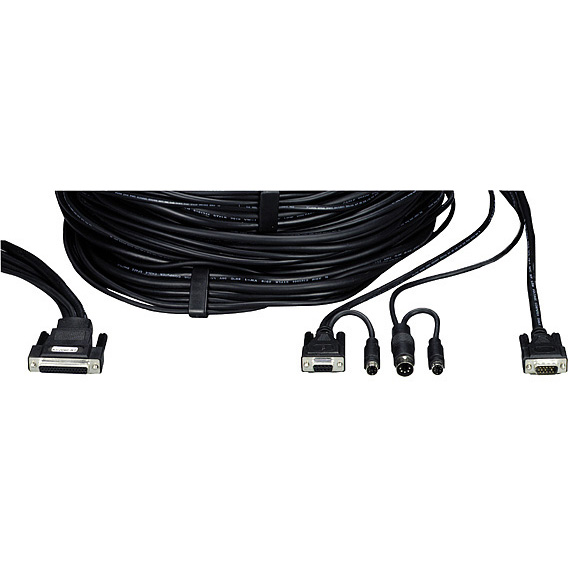

KV2060-R2

Photo may show similar product

Other views

ServSwitch Multi to CPU/Server Cables, 20-ft. (6.0-m)

Connect the ServSwitch Multi to your PC CPU or servers with VGA connections.

KV2060-R2


Lifetime Warranty

Product Highlights

  • Use with the multiplatform ServSwitch Multi.
  • Find the cables you need in three easy steps.
  • Guaranteed for life!

  • Description

    ServSwitch Multi to CPU/Server Cables, PS/2, PC/AT, with Audio, 20-ft. (6.0-m)


    Quick Facts

  • Use with the multiplatform ServSwitch Multi.
  • Find the cables you need in three easy steps.
  • Guaranteed for life!

  • Further Details

    Use this cable to connect PC CPUs and servers with VGA connections to your ServSwitch Multi. They’re available with or without audio connectors. Audio cable enables you to add a set of speakers or a microphone to each of your servers. It’s also great for servers that give off audible alarms.

    1. Choose cable with or without audio. All versions have monitor and keyboard/mouse connectors. The audio versions also have (2) audio and (1) DB9 serial connectors.

    2. Determine the length of cable you need for each run.

    3. Call our FREE Tech Support at 724-746-5500 with any questions.


    Technical Specifications for ServSwitch Multi to CPU/Server Cables, 20-ft. (6.0-m):

    Connectors — All: ServSwitch: (1) 44-pin F;
    Video: (1) HD15 M;
    Keyboard: (1) 6-pin mini DIN M, (1) 5-pin mini DIN M;
    Mouse: (1) 6-pin mini DIN M, (1) DB9 F;
    KV2040-R2, KV2060-R2, KV2080-R2 also have: Audio: (2) 3.5-mm plugs; Serial: (1) DB9 F
    NOTE: ServSwitch Multi CPU connectors are 44-pin.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch Multi to CPU/Server Cables, 20-ft. (6.0-m):


    Connect your ServSwitch Multi to CPU/Server Cables, 20-ft. (6.0-m) with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Lifetime warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $139.95

    Quantity

    Warranty

    Total

    (17 available)

    Shipping Info


    45-day return policy
