KVM > Desktop

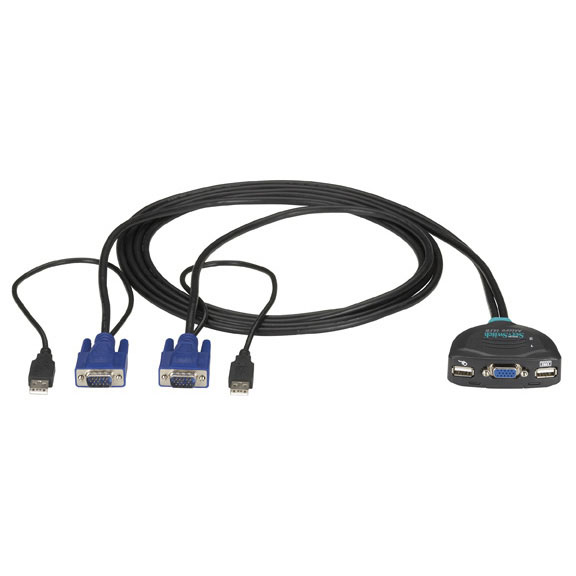

click photo to enlarge

KV407A

Photo may show similar product

Other views

ServSwitch Micro, USB Console, (2) USB Computers

Switch between computers from a single console with a USB keyboard, USB mouse, and VGA monitor.

KV407A


One year Warranty

Product Highlights

  • Ideal for multimedia applications requiring frequent switching between computers.
  • Access two computers from a single shared monitor, keyboard, and mouse.
  • Supports video resolutions up to 1920 x 1440.

  • Description

    ServSwitch Micro, USB Console, (2) USB Computers


    Quick Facts

  • Ideal for multimedia applications requiring frequent switching between computers.
  • Access two computers from a single shared monitor, keyboard, and mouse.
  • Supports video resolutions up to 1920 x 1440.

  • Further Details

  • Use it to control two computers with USB connectors.
  • Ultra small size means it’s perfect for tight spaces and small offices.
  • Powered from the interface. No external power supply is required.
  • Two status LED indicators show at a glance on which computer you are working.
  • Plug-and-play technology makes it a snap to install and set up.
  • High-quality audio support is also available on ServSwitch Micro PS/2 and USB versions (KV404A–KV408A).


  • The ServSwitch Micro™, USB Console, (2) USB Computers, is smaller than a standard mouse, but it works just like a larger, full-featured ServSwitch™ to enable you to access two computers from a single shared monitor, keyboard, and mouse.

    Its small footprint makes it perfect for the tightest KVM stations. In fact, the ServSwitch Micro takes up virtually no space at all. You can use it under the desk and eliminate clutter on your desktop. It’s just the type of ServSwich for small office/home office (SOHO) environments, as well as larger enterprises where you want to provide KVM switching to individual workstation users requiring access to multiple computers.

    All connections are self contained in a single cable for hassle-free setup. What’s more, the ServSwitch Micro draws its power from the equipment interface, so you reduce space—and power—requirements further.

    Plus, the simple yet powerful KVM switch is easy to operate with no software to configure. Simply plug in the device and turn on your computers. Switch with simple hotkey commands at the keyboard. The commands enable you to select either computer, to toggle between them, to resync the mouse, or to initate and abort an Autoscan feature.

    Simple to connect CPUs and stations
    The ServSwitch Micro, USB Console, (2) USB Computers, features plug-and-play connections, so installing the switch is as easy as plugging in the KVM peripherals.

    All connectors are embedded on a 6-foot (1.8-m) cable that links the computers to a KVM console. The console side of the cable features an HD15 connector and two USB ports for your mouse and keyboard; the other side has connectors for plugging into each computer (two HD15 video connectors and two USB mouse/keyboard connectors).



    Technical Specifications for ServSwitch Micro, USB Console, (2) USB Computers:

    Operating Systems Supported — Windows® 98/SE/Me/XP®, Windows 2000®, Windows Vista®, Linux®, Mac OSX
    Cable Length to Computer — 6 ft. (1.8 m)
    DDC Support — DDC, DDC2, and DDC2B
    Scan Interval — 3, 8, 15, and 30 seconds
    Connectors — User ports: (1) HD15 F for connection to shared monitor, (2) USB Type A F for connection to shared keyboard and mouse;
    CPU ports: (2) HD15 M, (2) USB Type A M
    Indicators — (2) LEDs
    Power — From the interface
    Size — 1.9"H x 2.4"W x 0.8"D (4.8 x 6.1 x 2 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch Micro, USB Console, (2) USB Computers:

    Manuals

    • ServSwitch Micro User Manual
      User Manual for the KV407A and KV408A (9/1/2005)

    Product Data Sheets


    Connect your ServSwitch Micro, USB Console, (2) USB Computers with:

    Accessory: KV408A
