ServSwitch Micro KVM Switches with Audio, (2) USB Computers

This low-cost 2-port KVM switch with audio works with a PS/2 console and USB computers.

KV405A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • High video resolution—1920 x 1440.
  • High-quality audio support.
  • No power supply required.


  • Description

    ServSwitch Micro KVM Switches with Audio, (2) USB Computers


    Quick Facts

  • High video resolution—1920 x 1440.
  • High-quality audio support.
  • No power supply required.

  • Further Details

  • Use it to control two computers with USB connectors.
  • Supports video resolutions up to 1920 x 1440.
  • Ultra-small size—1.9"H x 2.4"W x 0.8"D (4.8 x 6.1 x 2 cm).
  • Powered from the interface.
  • Two status LED indicators show at a glance which computer you are working on.
  • Plug-and-play technology makes it a snap to install and set up.


  • Control two computers with a single keyboard, monitor and mouse—and get audio support too!

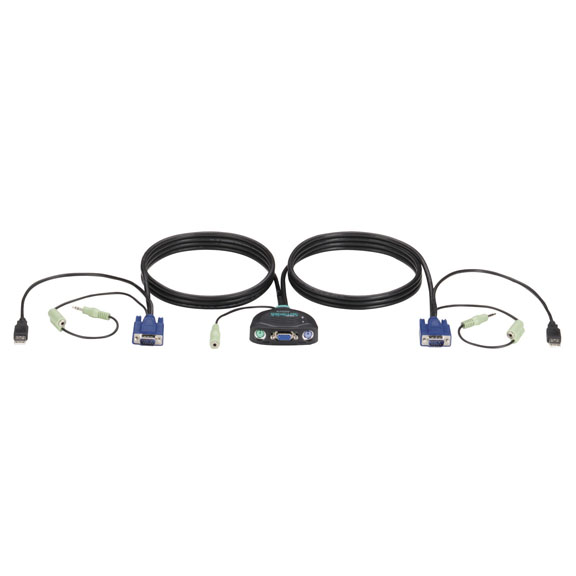

    The ServSwitch Micro™ is smaller than a standard mouse, but it works just like a larger, full-featured ServSwitch™ to enable you to access two computers from a single shared monitor, keyboard, and mouse. Advanced video enhancement technology provides you with sharp, clear VGA quality up to 1920 x 1440. Two high-quality 6-foot (1.8-m) integral coaxial cables provide the connections to the two computers. These models include connections for stereo audio support.

    There is no software to configure; simply plug in the ServSwitch Micro and turn on your computers. You can switch easily with simple hotkey commands. These commands enable you to easily select either computer, to toggle between them, to resync the mouse, or to initiate and abort an Autoscan feature.


    Technical Specifications for ServSwitch Micro KVM Switches with Audio, (2) USB Computers:

    Cable Length to Computer 6 ft. (1.8 m)
    Resolution (Maximum) 1920 x 1440
    Scan Interval 3, 8, 15, and 30 seconds
    Software Requirements Windows® 95/98/Me/XP, Windows 2000, Windows NT®, or Linux®
    Temperature 41 to 104° F (5 to 40° C)
    Connectors User ports: (1) HD15 F for connection to shared monitor, (2) 6-pin mini DIN F for connection to shared keyboard and mouse, (1) 2.5-mm F stereo audio connector;
    CPU ports: (2) HD15 M, (4) 6-pin mini DIN M, (2) 2.5-mm M stereo audio connectors
    Indicators (2) LEDs
    Power From the interface
    Size 1.9"H x 2.4"W x 0.8"D (4.8 x 6.1 x 2 cm)
    Weight 0.6 lb. (0.3 kg)



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
