KVM > Server Room/Enterprise KVM

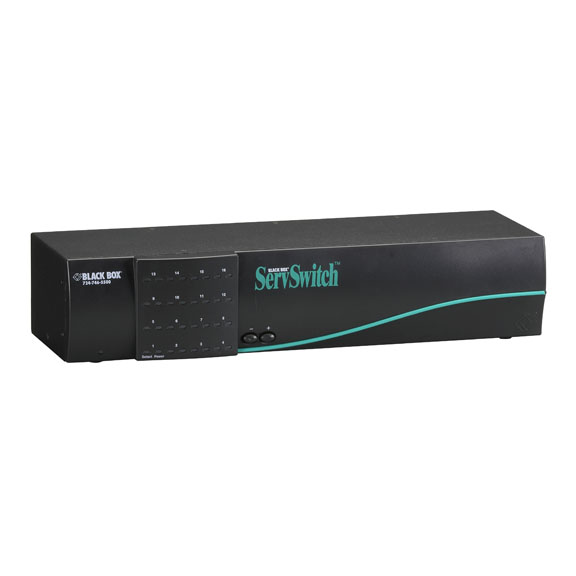

click photo to enlarge

SW725A-R5

Photo may show similar product

Other views

ServSwitch KVM Switch, 16-Port, Full Chassis

The options you want in a single-user KVM system.

SW725A-R5

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Ideal for complex office applications, including network server installations.
  • Maximum resolution up to 1600 x 1240.

  • Description

    ServSwitch KVM Switch, 16-Port, Full Chassis


    Quick Facts

  • Ideal for complex office applications, including network server installations.
  • Maximum resolution up to 1600 x 1240.

  • Further Details

  • Supports PC or PC-compatible and select UNIX® CPUs.
  • Cabling available to support USB, audio, or serial applications; see Buying Tips for the right cables for your application.
  • Compatible with ServSwitch Remote (ACR9005A).
  • Rackmountable — occupies only 2U (3.5") of space.
  • Highly durable and reliable computer and user cable connections.
  • Daisychain multiple units to control up to 256 servers.


  • The ServSwitch™ family brings you the options you need in a single-platform server management program. ServSwitch KVM switches are ideal for complex office and network server installations.

    ServSwitch brings premium video resolution to your CPUs, up to 1600 x 1280 at 100 Hz.

    Our original ServSwitch features PS/2 mouse conversion so you can mix PS/2 and AT® style CPUs.

    This KVM switch features cable distances of up to 100 feet (30.4 m) without additional extenders. It has on-screen menus and security features to make switching easy, and safe.

    ServSwitch KVM switches are available in 2-, 4-, 8-, 12-, and 16-port models in three chassis styles (mini, slim, and full); see Related Items for all the options. The ServSwitch Ultra, a multi-platform single-user KVM switch, is also available.

    What's included:
  • (1) ServSwitch KVM Switch, 16-Port, Full Chassis
  • Power cord (EPWR08)
  • Serial Flash Kit (KV99FLASH) with a serial RJ-11 adapter and a 7-ft. (2.1-m) RJ-11 cable
  • User’s manual

  • Technical Specifications for ServSwitch KVM Switch, 16-Port, Full Chassis:

    Distance (Maximum) — 20 ft. (6 m) using standard ServSwitch cable; for higher resolutions and greater distances, use coax cable (up to 100 ft. [30.4 m])
    Resolution (Maximum) — 1600 x 1280 @ 100 Hz
    CE Approval — Yes
    Connectors — (1) IEC 320 input for power;
    (1) RJ-11 for serial control and flash-ROM upgrades;
    (1) DB25 F for common KVM;
    (1) DB25 F for each CPU port
    Indicators — LEDs: (1) Power; (2) for every CPU port: (1) CPU Selected, (1) CPU Power
    Power — 100–240 VAC, 50–60 Hz, autosensing, with IEC 320 connector
    Size — 3.5"H (2U) x 16.75"W x 5.5"D (8.9 x 42.5 x 14 cm)
    NOTE: Propietary cables are required for operation.

    NOTE: Contact our FREE Tech Support about compatibility with laptop and notebook computers.

    This product works with:
  • Standard CPU/Server to ServSwitch Cables, for PS/2 (EHN151)
  • Standard CPU/Server to ServSwitch Cables, for AT (EHN048)
  • Coax CPU/Server to ServSwitch Cables, for PS/2 and AT (EHN282, EHN382)
  • ServSwitch USB Coax CPU Cables (EHN485)
  • Standard ServSwitch to Keyboard/Monitor/Mouse Cables, for PS/2 (EHN154)
  • Standard ServSwitch to Keyboard/Monitor/Mouse Cables, for AT (EHN052)
  • Coax ServSwitch to Keyboard/Monitor/Mouse Cables, for PS/2 (EHN283, EHN383)
  • Coax ServSwitch to Keyboard/Monitor/Mouse Cables, for AT (EHN270)
  • USB to PS/2 User Cables (EHNUSB)
  • CPU/Server to ServSwitch Cables (CPU Cables) for Touch Screen Support (EHN3825)
  • ServSwitch to Keyboard/Monitor/Mouse Cables (User Cables) for Touch Screen Support (EHN3835)
  • Low-Smoke, Zero-Halogen ServSwitch to Keyboard/Monitor/Mouse Cables (User Cables) (EHN383-LS)
  • Low-Smoke, Zero-Halogen CPU/Server to ServSwitch Cables (Server Cables) (EHN382-LS, EHN485-LS)
  • CPU/Server to ServSwitch Cables (CPU Cables) with Audio (EHN151A, EHN382A)
  • ServSwitch USB Coax CPU Cables (EHN485A)
  • ServSwitch to Keyboard/Monitor/Mouse Cables (User Cables) with Audio (EHN154A, EHN383A)
  • ServSwitch Rackmount Kits (RMK19M, etc.)
  • ServSwitch Remote Single-User (ACR9005A)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
