KVM > Extenders

click photo to enlarge

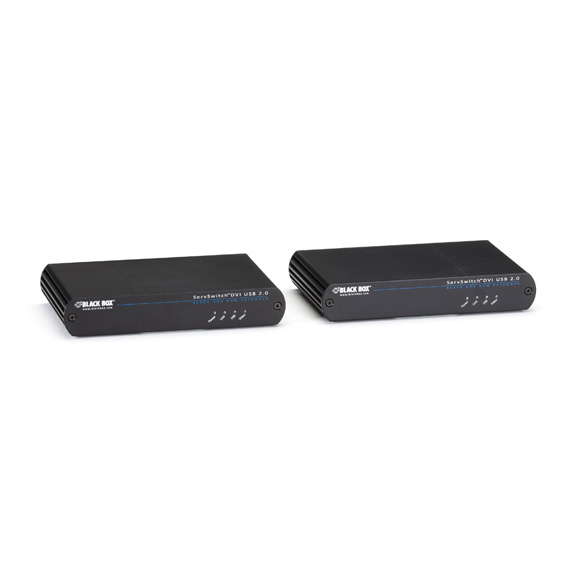

ACU1500A

Photo may show similar product

Other views

  • ACU1500A
  • ACU1500A

ServSwitch KVM Extender, DVI-D and USB 2.0, over CATx

Extend a single DVI-D channel without compromise, plus get USB HID support.

ACU1500A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Link up to 330 feet (100 m) using only one CAT5 cable.
  • Full HD resolution. 1920 x 1200 at 24-bit color depth.
  • Provides USB 2.0 support for all device types.
  • True EDID read mode.
  • HDCP is not supported.


    • Description

    ServSwitch KVM Extender, DVI-D and USB 2.0, over CATx


    Quick Facts

  • Link up to 330 feet (100 m) using only one CAT5 cable.
  • Full HD resolution. 1920 x 1200 at 24-bit color depth.
  • Provides USB 2.0 support for all device types.
  • True EDID read mode.
  • HDCP is not supported.

    • Further Details

  • No compression, no delay of video data.
  • Easy setup, no adjustments.
  • Supports all major operating systems.
  • Uses a single, solid core CAT5 (or better) cable for desktop extension, simplifying installation. Solid-core CAT6 is recommended for best performance.
  • A computer can be located remotely from a desktop area, freeing up space and providing security.
  • Servers, computers, software, and any other sensitive hardware can be kept in a secure location where maintenance can be performed easily.
  • Supports USB 2.0 devices.

    • Place a computer up to 330 feet (100 m) from the workstation area, connected with a single inexpensive CATx cable. Supports Full HD video and USB 2.0, including control of the keyboard, mouse, Web cameras, Flash drive, speakers, microphone, and other USB 1.1 and USB 2.0 devices.

    The ideal high-resolution KVM extender
     The ServSwitch™ DVI-D with USB 2.0 KVM Extender preserves the quality of the DVI video signal and offers real-time transmission without the delays and compression that degrades the high-resolution viewing experience.

    USB HID support
     The extender supports of a variety of HIDs. Keyboards and mice are the most common HIDs, but other devices based on HID protocol, including some touch screens, will work as well.

    DDC read channel
     The DDC read capability enables true EDID information to be received from the attached display. This guarantees optimum plug-and-play support.


    Technical Specifications for ServSwitch KVM Extender, DVI-D and USB 2.0, over CATx:

    Connectors — Local unit: (1) USB Type B; (1) DVI-D F; Interconnect: (1) RJ-45;
    Remote Unit: (3) USB Type A F; (1) DVI-D F Interconnect: (1) RJ-45
    Power — 100–240 VAC, 50–60 Hz, autosensing, external, with IEC 320 connector and cord
    Size — 4.4"H x 6.9"W x 1.2"D (11.2 x 17.5 x 3 cm)

    What’s included:
  • Transmitter
  • Receiver
  • (2) power supplies
  • (2) 6-ft. power cords
  • 6-ft. DVI-D and USB cable
  • Rubber feet
    • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
