KVM > Extenders

click photo to enlarge

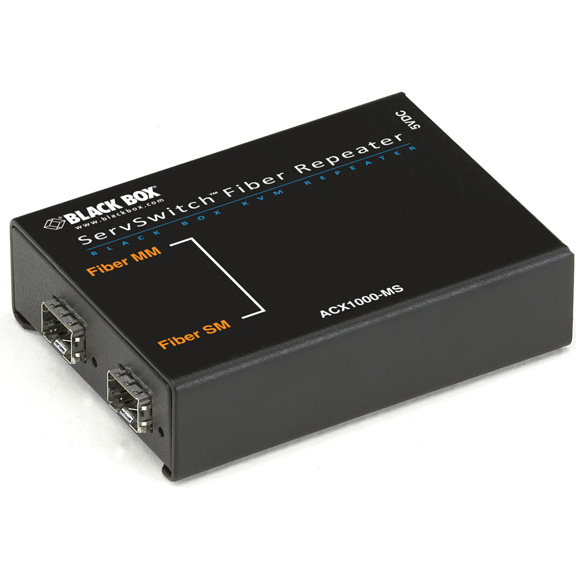

ACX1000-MS

Photo may show similar product

Other views

ServSwitch KVM Extender/Cross Repeater, Multimode to Single-Mode Fiber

Convert a ServSwitch DVI Multimode KVM Extender to single-mode for added distance.

ACX1000-MS

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Add a single-mode fiber run between transmitter and receivers of a compatible ServSwitch™ DVI Multimode Fiber KVM Extender.
  • Works in pairs as mode converters to extend KVM communications much farther.
  • Place a KVM console even farther from a backracked CPU or server.

  • Description

    ServSwitch KVM Extender/Cross Repeater, Multimode to Single-Mode Fiber


    Quick Facts

  • Add a single-mode fiber run between transmitter and receivers of a compatible ServSwitch™ DVI Multimode Fiber KVM Extender.
  • Works in pairs as mode converters to extend KVM communications much farther.
  • Place a KVM console even farther from a backracked CPU or server.

  • Further Details

  • Transmits signals without video degradation or frame delay.
  • Enables you to keep CPUs secure and farther from consoles located in public areas.
  • Great for remotely locating KVM workstations in factory or process engineering applications.
  • Passes DVI video and graphic interface signals, boosting video farther—even at high resolutions (1920 x 1200).
  • When used with a compatible ServSwitch extender, extends KVM signals an extra 20 kilometers (12.4 mi.) over 9-micron single-mode cable.
  • Easy to install and use. Simply plug in the fiber cables and power up.
  • Supports dual-head extensions (a pair of cross-connect repeaters is required for each video channel).


    NOTE: Must be used in pairs.

    This product works with:
  • ServSwitch DKM DVI-D KVM Switches (ACX0808, ACX0816, ACX0832, ACX1616, ACX1632)
  • ServSwitch Single DVI Multimode Fiber Optic KVM Extender, PS/2 (ACS2009A-R2-MM)
  • ServSwitch Single DVI Multimode Fiber Optic KVM Extender, USB (ACS4001A-R2-MM)
  • ServSwitch Dual DVI Multimode Fiber Optic KVM Extender, PS/2, (ACS2209A-R2-MM)
  • ServSwitch Dual DVI Multimode Fiber Optic KVM Extender, USB (ACS4201A-R2-MM)
  • This list of compatible extenders is subject to change as we add more products to our family of ServSwitch DVI Fiber Optic KVM Extenders. Want to know if your KVM extender will work with this repeater? Contact our FREE Tech Support.


    Technical Specifications for ServSwitch KVM Extender/Cross Repeater, Multimode to Single-Mode Fiber:

    Distance (Maximum) — 9-micron single-mode fiber: 20 km (12.4 mi.)
    CE Approval — Yes
    RoHS — Yes
    Connectors — (1) pair of multimode LC; (1) pair of single-mode LC
    Indicators — LEDs: (1) Power, (1) Link
    Power — Input: 90–240 VAC, 50–60 Hz, autosensing;
    Output: 5 VDC
    Size — 1.1"H x 3.1"W x 4.3"D (2.8 x 7.9 x 10.9 cm)
    NOTE: Must be used in pairs.

    This product works with:
  • ServSwitch DKM DVI-D KVM Switches (ACX0808, ACX0816, ACX0832, ACX1616, ACX1632)
  • ServSwitch Single DVI Multimode Fiber Optic KVM Extender, PS/2 (ACS2009A-R2-MM)
  • ServSwitch Single DVI Multimode Fiber Optic KVM Extender, USB (ACS4001A-R2-MM)
  • ServSwitch Dual DVI Multimode Fiber Optic KVM Extender, PS/2, (ACS2209A-R2-MM)
  • ServSwitch Dual DVI Multimode Fiber Optic KVM Extender, USB (ACS4201A-R2-MM)
  • This list of compatible extenders is subject to change as we add more products to our family of ServSwitch DVI Fiber Optic KVM Extenders. Want to know if your KVM extender will work with this repeater? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch KVM Extender/Cross Repeater, Multimode to Single-Mode Fiber:

    Manuals

    • ServSwitch KVM Extender/Cross Repeater Manual
      Manual for the ACX1000, ACX1000-MM, ACX1000-MS, ACX1000-DM, and ACX1000-CM

    Product Data Sheets


    Connect your ServSwitch KVM Extender/Cross Repeater, Multimode to Single-Mode Fiber with:

    Accessory: ACS4001A-R2-MM

    ServSwitch™ Single DVI Fiber Optic KVM Extender, USB, Multimode

    ServSwitch™ Single DVI Fiber Optic KVM Extender, USB, Multimode

    Accessory: ACS2009A-R2-MM

    ServSwitch Single DVI Multimode Fiber Optic KVM Extenders, PS/2

    ServSwitch™ Single DVI Multimode Fiber Optic KVM Extenders, PS/2
