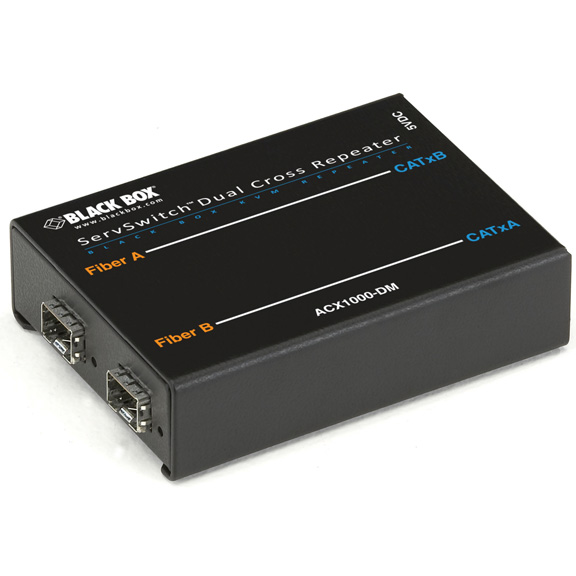

ACX1000-DM

Photo may show similar product

Other views

ServSwitch KVM Extender/Cross Repeater, Dual CATx to Multimode Fiber

Take dual-head ServSwitch DVI KVM CATx extensions farther—over two fiber runs.

ACX1000-DM

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Add two long-distance fiber runs between the transmitter and receiver of your ServSwitch™ Dual DVI CATx KVM Extender.
  • Place a KVM console even farther from a backracked CPU or server.
  • Transmits signals without video degradation or frame delay.


  • Description

    ServSwitch KVM Extender/Cross Repeater, Dual CATx to Multimode Fiber


    Quick Facts

  • Add two long-distance fiber runs between the transmitter and receiver of your ServSwitch™ Dual DVI CATx KVM Extender.
  • Place a KVM console even farther from a backracked CPU or server.
  • Transmits signals without video degradation or frame delay.

  • Further Details

  • Supports console-to-CPU distances up to 800 meters (2624.6 ft.) over 50-micron multimode fiber cable*.
  • Enables you to keep CPUs secure and farther from consoles located in public areas.
  • Great for extending KVM signals across factory floors or in high-security applications.
  • Passes DVI video and graphic interface signals, boosting video farther—even at high resolutions (1920 x 1200).
  • Easy to install and use. Simply plug in the CATx and fiber cables and power up.

  • *NOTE: Distance depends on the type of CATx and fiber cable used.
    The maximum distance over 50-micron multimode is calculated as follows:
    200 meters between KVM transmitter RJ-45 and converter/extender RJ-45 +
    400 meters between converter/extender LC and second converter/extender LC +
    200 meters between converter/extender RJ-45 and KVM receiver RJ-45 =
    800 meters.

    NOTE: Must be used in pairs.

    This product works with:
  • ServSwitch DKM DVI-D KVM Switches (ACX0808, ACX0816, ACX0832, ACX1616, ACX1632)
  • ServSwitch Dual DVI CATx KVM Extender, PS/2 (ACS2209A-R2)
  • ServSwitch Dual DVI CATx KVM Extender, USB (ACS4201A-R2)
  • This list of compatible extenders is subject to change as we add more products to our family of ServSwitch DVI CATx KVM Extenders. Want to know if your KVM extender will work with this repeater? Contact our FREE Tech Support.


    Technical Specifications for ServSwitch KVM Extender/Cross Repeater, Dual CATx to Multimode Fiber:

    Distance (Maximum) End-to-end: 800 m (2624.6 ft.) over 50-micron multimode (see *NOTE above)
    CE Approval Yes
    RoHS Yes
    Indicators LEDs: (1) Power, (1) Link
    Connectors UTP side: (2) RJ-45;
    Fiber side: (2) pair of LC
    Power Input: 90-240 VAC, 50-60 Hz, autosensing;
    Output: 5 VDC
    Size 1.1"H x 3.1"W x 4.3"D (2.8 x 7.9 x 10.9 cm)
    *NOTE: Distance depends on the type of CATx and fiber cable used.
    The maximum distance over 50-micron multimode is calculated as follows:
    200 meters between KVM transmitter RJ-45 and converter/extender RJ-45 +
    400 meters between converter/extender LC and second converter/extender LC +
    200 meters between converter/extender RJ-45 and KVM receiver RJ-45 =
    800 meters.

    NOTE: Must be used in pairs.

    This product works with:
  • ServSwitch DKM DVI-D KVM Switches (ACX0808, ACX0816, ACX0832, ACX1616, ACX1632)
  • ServSwitch Dual DVI CATx KVM Extender, PS/2 (ACS2209A-R2)
  • ServSwitch Dual DVI CATx KVM Extender, USB (ACS4201A-R2)
  • This list of compatible extenders is subject to change as we add more products to our family of ServSwitch DVI CATx KVM Extenders. Want to know if your KVM extender will work with this repeater? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
