KVM > Desktop

click photo to enlarge

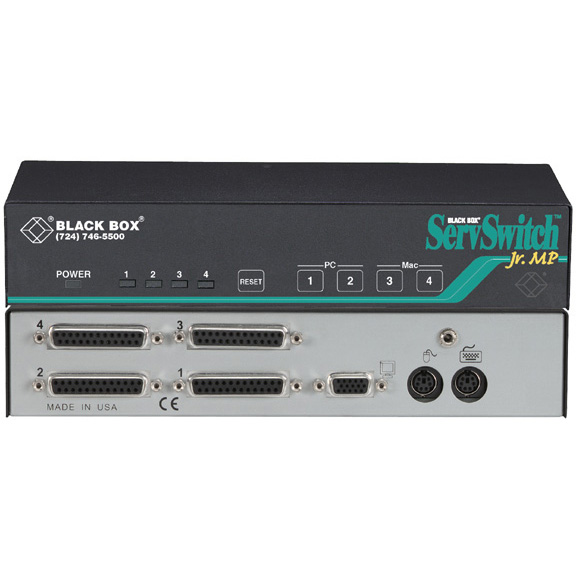

SW628A-R2

Photo may show similar product

Other views

ServSwitch Jr. MP, 4-Port

Four-port KVM switch.

SW628A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • The economical way for Mac and PC CPUs to share a keyboard, monitor, and mouse.
  • Enhanced video—
    up to 1600 x 1280!
  • Control up to two PCs and two Macintosh computers with one keyboard, monitor,
    and mouse.

  • Description

    ServSwitch Jr. MP, 4-Port


    Quick Facts

  • The economical way for Mac and PC CPUs to share a keyboard, monitor, and mouse.
  • Enhanced video—
    up to 1600 x 1280!
  • Control up to two PCs and two Macintosh computers with one keyboard, monitor,
    and mouse.

  • Further Details

  • Installation is easy—no software needed.
  • Rugged metal case.
  • Screwdown connectors for a secure cable connection.
  • Standard ServSwitch cabling for convenient setup and distances up to 50 feet (15.2 m).
  • Use a PS/2 keyboard and mouse to control PC/AT®, PS/2, and Apple® Macintosh CPUs.
  • Keyboard/mouse emulation eliminates the possibility of CPU lockup.
  • Small size makes it ideal for desktop use.
  • LEDs indicate which CPU is selected.
  • Switching is a snap—just use front-panel buttons or a keyboard command.


  • Are you the kind of person who has the Beatles and Stones on random shuffle in the MP3 player? Like cats and dogs? It’s not that you can’t decide between vanilla or chocolate; rather, you just want both options.

    If you’re that type of person, you probably bounce back and forth between a PC and a Macintosh® jammed on your desktop. Need room to move and groove? Then reclaim your workspace with a ServSwitch™ Jr. MP. It’s the multiplatform solution that will get that keyboard, monitor, and mouse off your desktop.

    The ServSwitch Jr. MP enables you to access up to two PCs and two Mac® CPUs from a single keyboard, monitor, and mouse. That gives you room to work at your desk again. Best of all, you don’t break the bank!

    Although the ServSwitch Jr. MP is a desktop switch at an economical price, we didn’t skimp on quality. The switch is housed in a sturdy metal chassis and features all the details that made the BLACK BOX® ServSwitch family famous.

    Switching is easy—switch between CPUs via either front-panel push buttons or simple keyboard commands. Because the switch keeps sending each CPU the keyboard and mouse signals it expects, there are no emulation-related CPU lockups. And if a CPU should lock up for other reasons, a keyboard/mouse reset feature enables you to reset both pieces of equipment without having to restart the computer.

    Because you plug your keyboard, monitor, and mouse directly into the back of the unit, you only need to buy cables to connect each of your CPUs. And with coax cables, you can make connections to CPUs up to 50 feet (15.2 m) away.

    NOTE: For details on compatibility with laptop and notebook computers, contact our FREE Tech Support.

    NOTE: Not for use with Mac CPUs using a USB keyboard and mouse.

    This product works with:
    • Standard CPU/Server to ServSwitch Cables, for PS/2 (EHN151)
    • Standard CPU/Server to ServSwitch Cables, for AT (EHN048)
    • Standard CPU/Server to ServSwitch Cables, for PS/2 and AT (EHN282, EHN382)
    • Standard CPU/Server to ServSwitch Cables, for Mac (EHN215)
    • Coax CPU/Servers to ServSwitch Cables, for Mac (EHN208)
    • ServSwitch Mac Adapter (KV99MA)
    Questions? Contact our FREE Tech Support.


    Technical Specifications for ServSwitch Jr. MP, 4-Port:

    Distance (Maximum) — Standard cable length: 20 ft. (6 m);
    With coax cable: 50 ft. (15.2 m)
    Resolution (Maximum) — 1280 x 1040
    Supported CPUs — IBM® compatible; Apple® Macintosh
    Video — VGA, noninterlaced
    CE Approval — Yes
    Connectors — CPUs: (4) DB25 F;
    VGA monitor: (1) HD15 F;
    PS/2® mouse: (1) 6-pin mini DIN F;
    PS/2 keyboard: (1) 6-pin mini DIN F
    Indicators — LEDs: (1) Power, (4) Select, (4) CPU Power
    Power — From the interface
    Size — 1.8"H x 8.9"W x 3.4"D (4.6 x 22.6 x 8.6 cm)
    NOTE: For details on compatibility with laptop and notebook computers, contact our FREE Tech Support.

    NOTE: Not for use with Mac CPUs using a USB keyboard and mouse.

    This product works with:
    • Standard CPU/Server to ServSwitch Cables, for PS/2 (EHN151)
    • Standard CPU/Server to ServSwitch Cables, for AT (EHN048)
    • Standard CPU/Server to ServSwitch Cables, for PS/2 and AT (EHN282, EHN382)
    • Standard CPU/Server to ServSwitch Cables, for Mac (EHN215)
    • Coax CPU/Servers to ServSwitch Cables, for Mac (EHN208)
    • ServSwitch Mac Adapter (KV99MA)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch Jr. MP, 4-Port:

    Product Data Sheets

    Application Diagrams


    Connect your ServSwitch Jr. MP, 4-Port with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $51.00

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $101.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    ServSwitch Jr. MP, 4-Port SW628A-R2 $509.95

    ServSwitch Jr. MP, 2-Port SW627A-R2 $407.95

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $509.95
