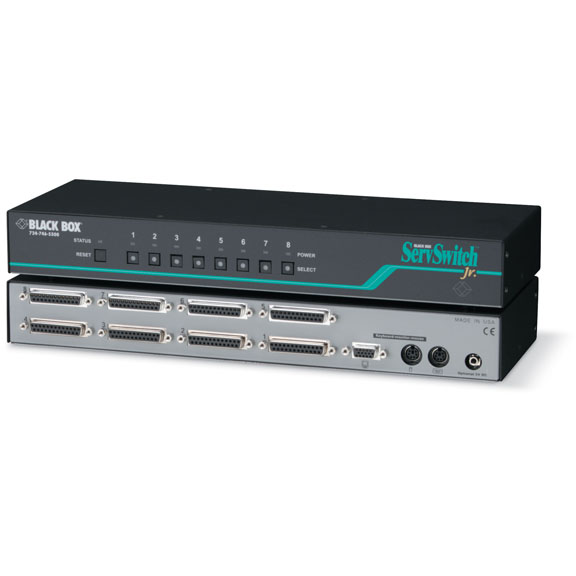

SW629A-R2

Photo may show similar product

Other views

ServSwitch Jr., 8-Port

Eight-port flash-upgradable KVM switch.

SW629A-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Control up to eight CPUs with a single keyboard, monitor, and mouse.
  • Video resolution up to 1600 x 1280.

  • Description

    ServSwitch Jr., 8-Port


    Quick Facts

  • Control up to eight CPUs with a single keyboard, monitor, and mouse.
  • Video resolution up to 1600 x 1280.

  • Further Details

  • You can pair the 8-port model with the ServSwitch Remote for multiplatform control over an IP connection!
  • Supports Microsoft® IntelliMouse®.
  • With the ServSwitch Jr. Chip, the 2- and 4-port models support wheel and five-button mice!
  • Interface powered. An optional power supply is also available for the 8-port model.
  • Supports distances up to 50 feet (15.2 m) using coax cables.


  • Need a ServSwitch for small-scale applications? The ServSwitch Jr.™ from Black Box is the perfect solution for workgroups and small and home offices.

    With the ServSwitch Jr., you can access up to eight IBM® PC/AT® or PS/2® type CPUs with a single monitor, PS/2 or PC/AT keyboard, and PS/2 or serial mouse. ServSwitch Jr. supports a variety of video resolutions (up to 1600 x 1280). It also fully supports Microsoft® IntelliMouse®. And with the ServSwitch Jr. Chip (KV99JR), the 2- and 4-port models support wheel and five-button mice! The chip also enables flash upgrades as well as upgrades to 2- and 4-port R2 models.

    Installing the ServSwitch Jr. is effortless. You can plug your VGA or XGA monitor, keyboard, and mouse directly into the ServSwitch Jr. using the cables you already have. Attach each of the computers to the switch using CPU/Server Cables. The cables have a single connector on the switch end and three connectors (for keyboard, video, and mouse) on the computer end. In addition, you can connect any IBM PC compatible CPU, no matter what type of keyboard and mouse it uses. If you need to support distances over 20 feet (6 m), use coax cables.

    To switch between CPUs, press the port-selection buttons on the switch’s front panel or send switching commands from the shared keyboard. Other keyboard commands control port scanning and configuration settings.

    For connecting remotely to your server room over IP, use the 8-port ServSwitch Jr. with a ServSwitch Remote, Single-User (ACR9005A). This way, you can control PC, Sun®, and Mac® servers from a remote location via an Internet connection!

    The ServSwitch Jr. doesn’t even have to be plugged in because it draws power from the keyboard and mouse interfaces of the attached CPUs. The 8-port model has an optional power supply jack in case you prefer to use a power supply.


    NOTE: For details on compatibility with laptop and notebook computers, contact our FREE Tech Support.

    This product works with:
    • Standard CPU/Server to ServSwitch Cables, for PS/2 (EHN151)
    • Standard CPU/Server to ServSwitch Cables, for AT (EHN048)
    • Coax CPU/Server to ServSwitch Cables, for PS/2 and AT (EHN282, EHN382)
    • Rackmount Kits for SW621A-R2 and SW622A-R2 (RMK19M, RMK23M, RMK24M)
    • Rackmount Kits for SW629A-R2 (RMK19S, RMK23S, RMK24S)
    Questions? Contact our FREE Tech Support.


    Technical Specifications for ServSwitch Jr., 8-Port:

    CPUs Supported IBM compatible;
    Also Sun and Mac, when used with the ServSwitch Remote Single-User (ACR9005A)
    Distance (Maximum) Standard cable: 20 ft. (6 m);
    Coax cable: 50 ft. (15.2 m)
    Resolution 1600 x 1280 at 100 Hz
    Connectors CPUs: (2), (4), or (8) DB25 F;
    VGA monitor: (1) HD15 F;
    PS/2 mouse: (1) 6-pin mini DIN F;
    PS/2 keyboard: (1) 6-pin mini DIN F;
    AT keyboard: (1) 5-pin DIN F;
    Also has (1) barrel port for optional power supply
    Indicators LEDs: (1) Power; (2), (4), or (8) Selected CPUs
    Power From the interface; optional power supply available for SW629A-R2
    Size 1.75"H (1U) x 13.5"W x 4.9"D (4.4 x 34.3 x 12.4 cm)
    Weight 2.9 lb. (1.3 kg)
    NOTE: For details on compatibility with laptop and notebook computers, contact our FREE Tech Support.

    This product works with:
    • Standard CPU/Server to ServSwitch Cables, for PS/2 (EHN151)
    • Standard CPU/Server to ServSwitch Cables, for AT (EHN048)
    • Coax CPU/Server to ServSwitch Cables, for PS/2 and AT (EHN282, EHN382)
    • Rackmount Kits for SW621A-R2 and SW622A-R2 (RMK19M, RMK23M, RMK24M)
    • Rackmount Kits for SW629A-R2 (RMK19S, RMK23S, RMK24S)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
